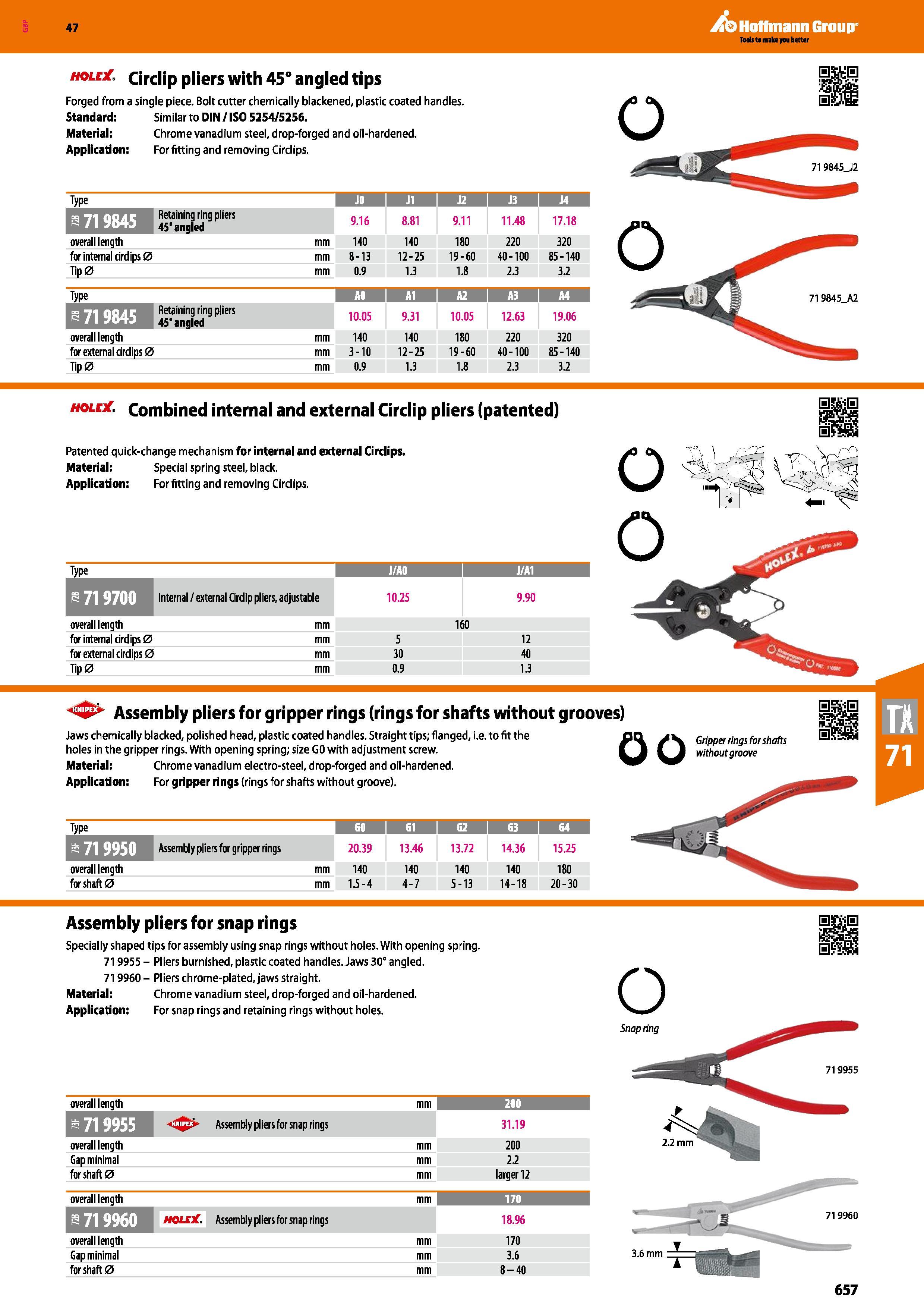

Hoffmann Group 47 holoC. cirdip pliers with 45° angled tips Forged from a single piece. Bolt cutter chemically blackened, plastic coated handles. Standard: Similar to DIN / ISO 5254/5256. Material: Chrome vanadium steel, drop-forged and oil-hardened. Application: For fitting and removing Circlips. Type JO J1 i a 13 M HfflflffB Retaining ring pliers 45'angled 9.16 8.81 9.11 11.48 17.18 overall length mm 140 140 180 220 320 for internal cirdips0 mm 8-13 12-25 19-60 40-100 85-140 Tip0 mm 0.9 1.3 1.8 2.3 3.2 Type AO 1 A1 1 M 1 H 1 A4 Retaining ring pliers 45" angled 10.05 9.31 10.05 12.63 19.06 overall length mm 140 140 180 220 320 for external circlips 0 mm 3-10 12-25 19-60 40-100 85-140 Tip0 mm 0.9 1.3 1.8 2.3 3.2 holex. Combined internal and external Circlip pliers (patented) Patented quick-change mechanism for internal and external Circlips. Material: Special spring steel, black. Application: For fitting and removing Circlips. Type J/A0 I J/A1 i Internal / external Cirdip pliers, adjustable 10.25 9.90 overall length mm 160 for internal cirdips 0 mm 5 12 for external circlips 0 mm 30 40 Tip 0 mm 0.9 1.3 Assembly pliers for gripper rings (rings for shafts without grooves) Jaws chemically blacked, polished head, plastic coated handles. Straight tips; flanged, i.e. to fit the holes in the gripper rings. With opening spring; size GO with adjustment screw. Material: Chrome vanadium electro-steel, drop-forged and oil-hardened. Application: For gripper ri ngs (rings for shafts without groove). Type SUB I si 1 62 1 S3 I 64 Assembly pliers for gripper rings 20.39 13.46 13.72 14.36 15.25 overall length mm 140 140 140 140 180 for shaft 0 mm 1.5-4 4-7 5-13 14-18 20-30 Assembly pliers for snap rings Specially shaped tips for assembly using snap rings without holes. With opening spring. 719955 - Pliers burnished, plastic coated handles. Jaws 30° angled. 719960- Pliers chrome-plated, jaws straight. Material: Chrome vanadium steel, drop-forged and oil-hardened. Application: For snap rings and retaining rings without holes. overall length mm 200 1 ft 719955 Assembly pliers for snap rings 31.19 overall length mm 200 Gap minimal mm 2.2 for shaft 0 mm larger 12 overall length mm 170 j b 719960 holcX. Assembly pliers for snap rings 18.96 overall length mm 170 Gap minimal mm 3.6 for shaft 0 mm 8-40 3.6 mm 71 9845 J2 71 9845 A2 657
