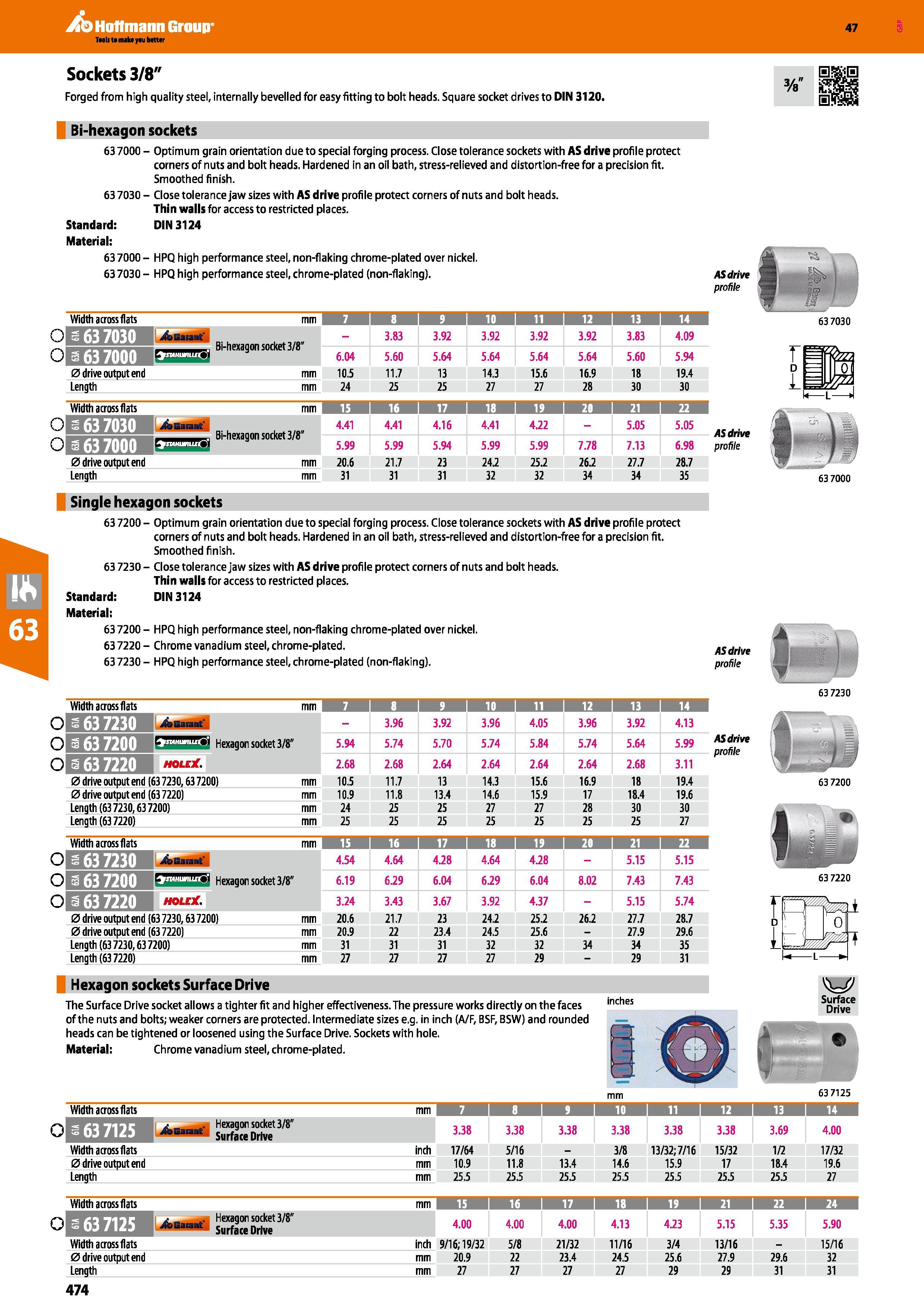

Hoffmann Group 47 Sockets 3/8" Forged from high quality steel, internally bevelled for easy fitting to bolt heads. Square socket drives to DIN 3120. Bi-hexagon sockets 63 7000 - Optimum grain orientation due to special forging process. Close tolerance sockets with AS drive profile protect corners of nuts and bolt heads. Hardened in an oil bath, stress-relieved and distortion-free for a precision fit. Smoothed finish. 63 7030 - Close tolerance jaw sizes with AS drive profile protect corners of nuts and bolt heads. Thin walls for access to restricted places. Standard: DIN 3124 Material: 63 7000 - HPQ high performance steel, non-flaking chrome-plated over nickel. 63 7030 - HPQ high performance steel, chrome-plated (non-flaking). AS drive profile Width across flats mm 7 I 8 I 9 I 10 1 11 1 12 I 13 1 14 1 = 63 7030 .i&Gaianf i havinnn cnrl/ot 3/fl" - 3.83 3.92 3.92 3.92 3.92 3.83 4.09 3 63 7000 DrilcXdtJUll MJlKcl j/O 6.04 5.60 5.64 5.64 5.64 5.64 5.60 5.94 0 drive output end mm 10.5 11.7 13 14.3 15.6 16.9 18 19.4 Length mm 24 25 25 27 27 28 30 30 Width across flats mm 15 I 1 I 17 i 18 I 19 I 20 I 21 I 22 1 = 63 7030 XbGarant" 4.41 4.41 4.16 4.41 4.22 - 5.05 5.05 AS drive a 63 7000 Bi-hexagon socket 3/8" 5.99 5.99 5.94 5.99 5.99 7.78 7.13 6.98 profile 0 drive output end mm 20.6 21.7 23 24.2 25.2 26.2 27.7 28.7 Length mm 31 31 31 32 32 34 34 35 Single hexagon sockets 63 7000 63 7200 - Optimum grain orientation due to special forging process. Close tolerance sockets with AS drive profile protect corners of nuts and bolt heads. Hardened in an oil bath, stress-relieved and distortion-free for a precision fit. Smoothed finish. 63 7230- Close tolerance jaw sizes with AS drive profile protect corners of nuts and bolt heads. Thin walls for access to restricted places. Standard: DIN 3124 Material: 63 7200 - HPQ high performance steel, non-flaking chrome-plated over nickel. 63 7220 - Chrome vanadium steel, chrome-plated. AS drive 63 7230 - HPQ high performance steel, chrome-plated (non-flaking). profile Width across flats mm 7 1 8 I 10 I 11 I 12 I 13 I 14 I o -63 7230 - 3.96 3.92 3.96 4.05 3.96 3.92 4.13 o a 63 7200 Hexagon socket 3/8" 5.94 5.74 5.70 5.74 5.84 5.74 5.64 5.99 o a 63 7220 HOLEjC. 2.68 2.68 2.64 2.64 2.64 2.64 2.68 3.11 0 drive output end (63 7230,63 7200) mm 10.5 11.7 13 14.3 15.6 16.9 18 19.4 0 drive output end (63 7220) mm 10.9 11.8 13.4 14.6 15.9 17 18.4 19.6 Length (63 7230,63 7200) mm 24 25 25 27 27 28 30 30 Length (63 7220) mm 25 25 25 25 25 25 25 27 Hexagon sockets Surface Drive The Surface Drive socket allows a tighter fit and higher effectiveness. The pressure works directly on the faces of the nuts and bolts; weaker corners are protected. Intermediate sizes e.g. in inch (A/F, BSF, BSW) and rounded heads can be tightened or loosened using the Surface Drive. Sockets with hole. Material: Chrome vanadium steel, chrome-plated. inches AS drive profile Width across flats mm 15 I 16 I 17 I 18 1 19 I 20 I 21 I 22 o 637230 4.54 4.64 4.28 4.64 4.28 - 5.15 5.15 o 6.19 6.29 6.04 6.29 6.04 8.02 7.43 7.43 o 3.24 3.43 3.67 3.92 4.37 - 5.15 5.74 0 drive output end (63 7230,63 7200) mm 20.6 21.7 23 24.2 25.2 26.2 27.7 28.7 0 drive output end (63 7220) mm 20.9 22 23.4 24.5 25.6 - 27.9 29.6 Length (63 7230,63 7200) mm 31 31 31 32 32 34 34 35 Length (63 7220) mm 27 27 27 27 29 - 29 31 Surface Drive o mm 63 7125 Width across flats mm 7 1 8 I 9 I 10 1 11 1 12 1 13 1 14 I -63 7125 i Hexagon socket 3/8" ,Eara"t- Surface Drive 3.38 3.38 3.38 3.38 3.38 3.38 3.69 4.00 Width across flats inch 17/64 5/16 - 3/8 13/32;7/16 15/32 1/2 17/32 0 drive output end mm 10.9 11.8 13.4 14.6 15.9 17 18.4 19.6 Length mm 25.5 25.5 25.5 25.5 25.5 25.5 25.5 27 Width across flats o 637125 _ Hexagon socket 3/8" oGaiant SurfaM Dr ve Width across flats 0 drive output end Length 474 mm 15 I 16 1 17 1 18 1 19 1 21 1 22 I 24 4.00 4.00 4.00 4.13 4.23 5.15 5.35 5.90 inch 9/16; 19/32 5/8 21/32 11/16 3/4 13/16 - 15/16 mm 20.9 22 23.4 24.5 25.6 27.9 29.6 32 mm 27 27 27 27 29 29 31 31 63 7030 63 7230 63 7200 63 7220
