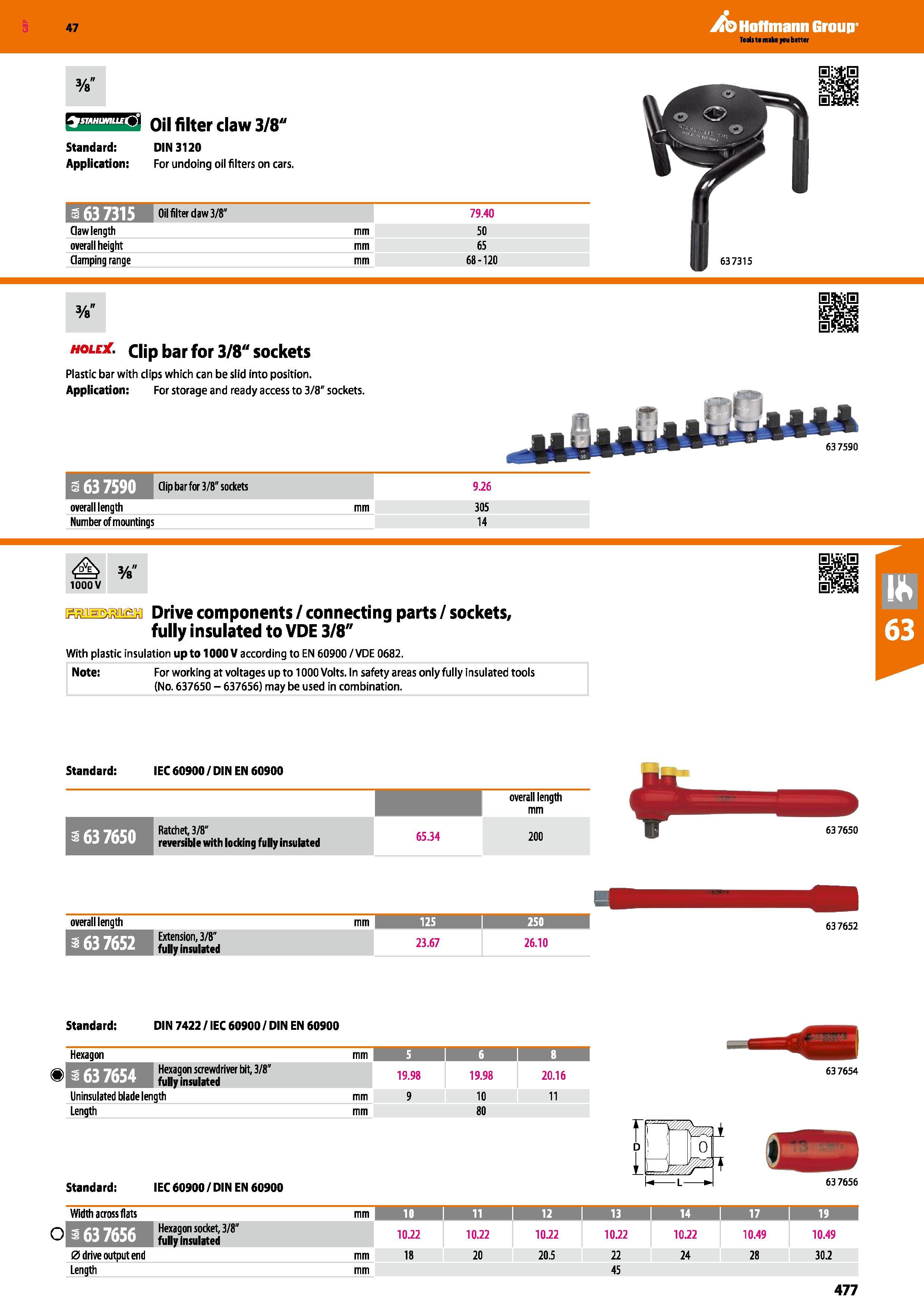

47 L Oil filter daw 3/8" Standard: Application: DIN 3120 For undoing oil filters on cars. 13 63 7315 MMIW 79.40 Claw length mm 50 overall height mm 65 Clamping range mm 68-120 Hoffmann Group 637315 13 holcX. clip bar for 3/8" sockets Plastic bar with clips which can be slid into position. Application: For storage and ready access to 3/8" sockets. y'Ti'tytyllB Clip bar for 3/B" sockets 9.26 overall length mm 305 Number of mountings 14 63 7590 3/g" 1000 V sIsSh Drive components / connecting parts / sockets, fully insulated to VDE 3/8" With plastic insulation up to 1000 V according to EN 60900/VDE 0682. Note: For working at voltages up to 1000 Volts. In safety areas only fully insulated tools (No. 637650 - 637656) may be used in combination. Standard: IEC 60900 / DIN EN 60900 overall length mm a 63 7650 Ratchet, 3/8" reversible with locking fully insulated 65.34 200 63 7650 overall length mm 125 I 250 163 7652 Extension, 3/8" fully insulated 23.67 26.10 637652 Standard: DIN 7422/ IEC 60900/ DIN EN 60900 Hexagon mm i BK9iBI BUB , Hexagon screwdriver bit, 3/8" 1 fu yinsulated 19.98 19.98 20.16 Uninsulated blade length mm 9 10 11 Length mm 80 Standard: IEC 60900/DINEN 60900 o 0 63 7654 63 7656 Width across flats mm 10 1 11 1 12 1 13 14 1 17 19 1 163 7656 Hexagon socket, 3/8" fully insulated 10.22 10.22 10.22 10.22 10.22 10.49 10.49 0 drive output end mm 18 20 20.5 22 24 28 30.2 Length mm 45 477
