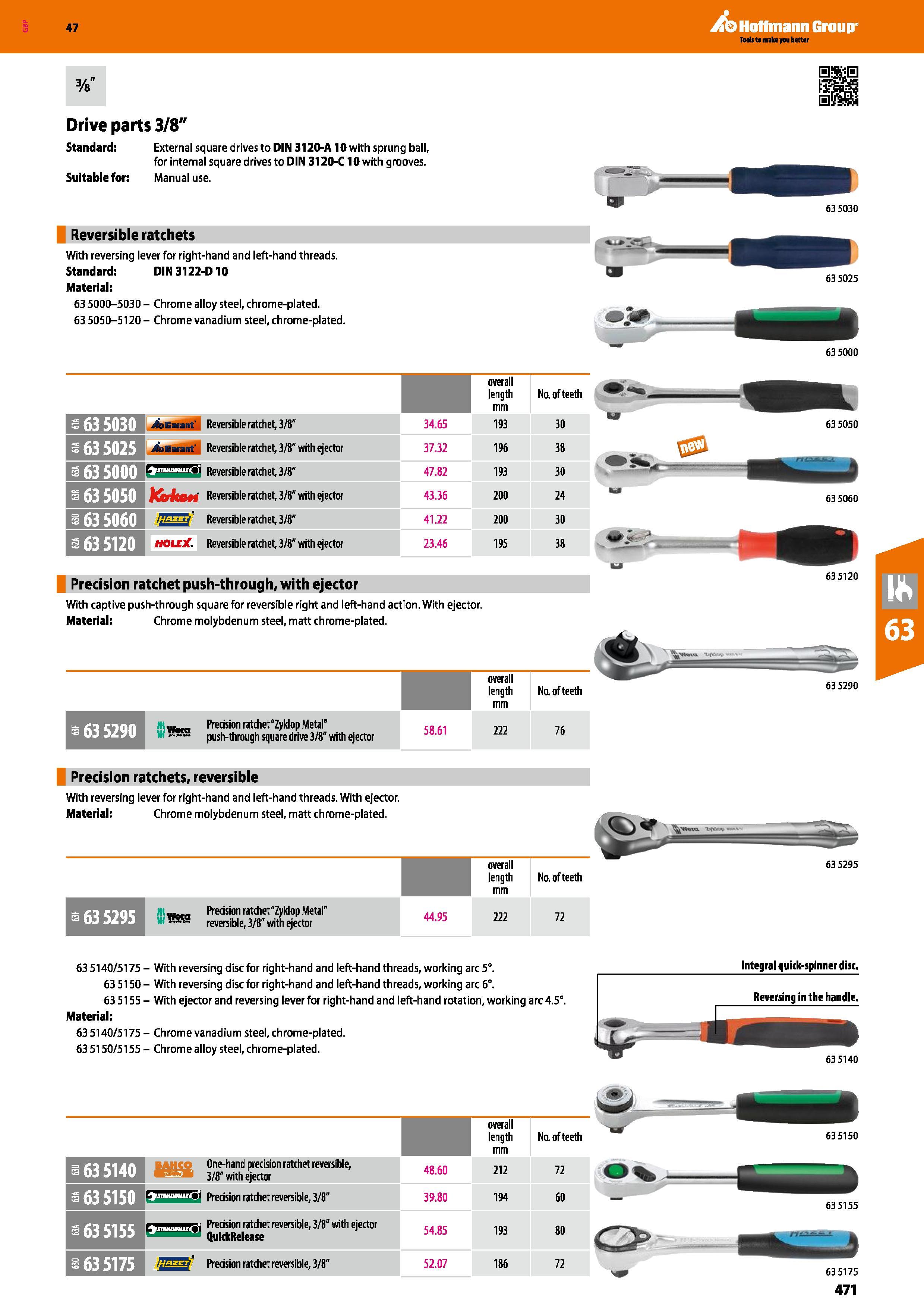

Hoffmann Group 47 0380 sSsSS Drive parts 3/8" Standard: External square drives to DIN 3120-A10 with sprung ball, for internal square drives to DIN 3120-C10 with grooves. Suitable for: Manual use. Reversible ratchets With reversing lever for right-hand and left-hand threads. Standard: DIN3122-D10 Material: 63 5000-5030 - Chrome alloy steel, chrome-plated. 635050-5120- Chrome vanadium steel, chrome-plated. 63 5030 635025 635000 overall length mm Na of teeth - 63 5030 jfbGannt' Reversible ratchet, 3/8" 34.65 193 30 - 63 5025 /bGatf Reversible ratchet, 3/8" with ejector 37.32 196 38 a 63 5000 Reversible ratchet, 3/8" 47.82 193 30 3 63 5050 kjukoii Reversible ratchet, 3/8" with ejector 43.36 200 24 a 63 5060 /7TCTV Reversible ratchet, 3/8" 41.22 200 30 s 63 5120 holeX. Reversible ratchet, 3/8" with ejector 23.46 195 38 Precision ratchet push-through, with ejector With captive push-through square for reversible right and left-hand action. With ejector. Material: Chrome molybdenum steel, matt chrome-plated. overall length mm Na of teeth 63 5290 Precision ratchet"Zyklop Metal" push-through square drive 3/8" with ejector 58.61 222 76 63 5050 63 5060 63 5120 63 5290 Precision ratchets, reversible With reversing lever for right-hand and left-hand threads. With ejector. Material: Chrome molybdenum steel, matt chrome-plated. overall length mm No. of teeth 63 521 )5 w, 1XJ Precision ratchet"Zyklop Metal” reversible, 3/8" with ejector 44.95 222 72 635295 635140/5175 - With reversing disc for right-hand and left-hand threads, working arc 5°. 63 5150 - With reversing disc for right-hand and left-hand threads, working arc 6°. 635155 - With ejector and reversing lever for right-hand and left-hand rotation, working arc 4.5°. Material: 635140/5175 - Chrome vanadium steel, chrome-plated. 63 5150/5155 - Chrome alloy steel, chrome-plated. Integral quick-spinrer disc. 63 5140 overall length mm Na of teeth 1 635140 One-hand precision ratchet reversible, 3/8" with ejector 48.60 212 72 635150 \ jraHUKUf< ) Precision ratchet reversible, 3/8" 39.80 194 60 635155 f STAHWltL iJ Precision ratchet reversible, 3/8" with ejector QuickRelease 54.85 193 80 % 635175 Precision ratchet reversible, 3/8" 52.07 186 72 o> 635150 63 5155 63 5175 471
