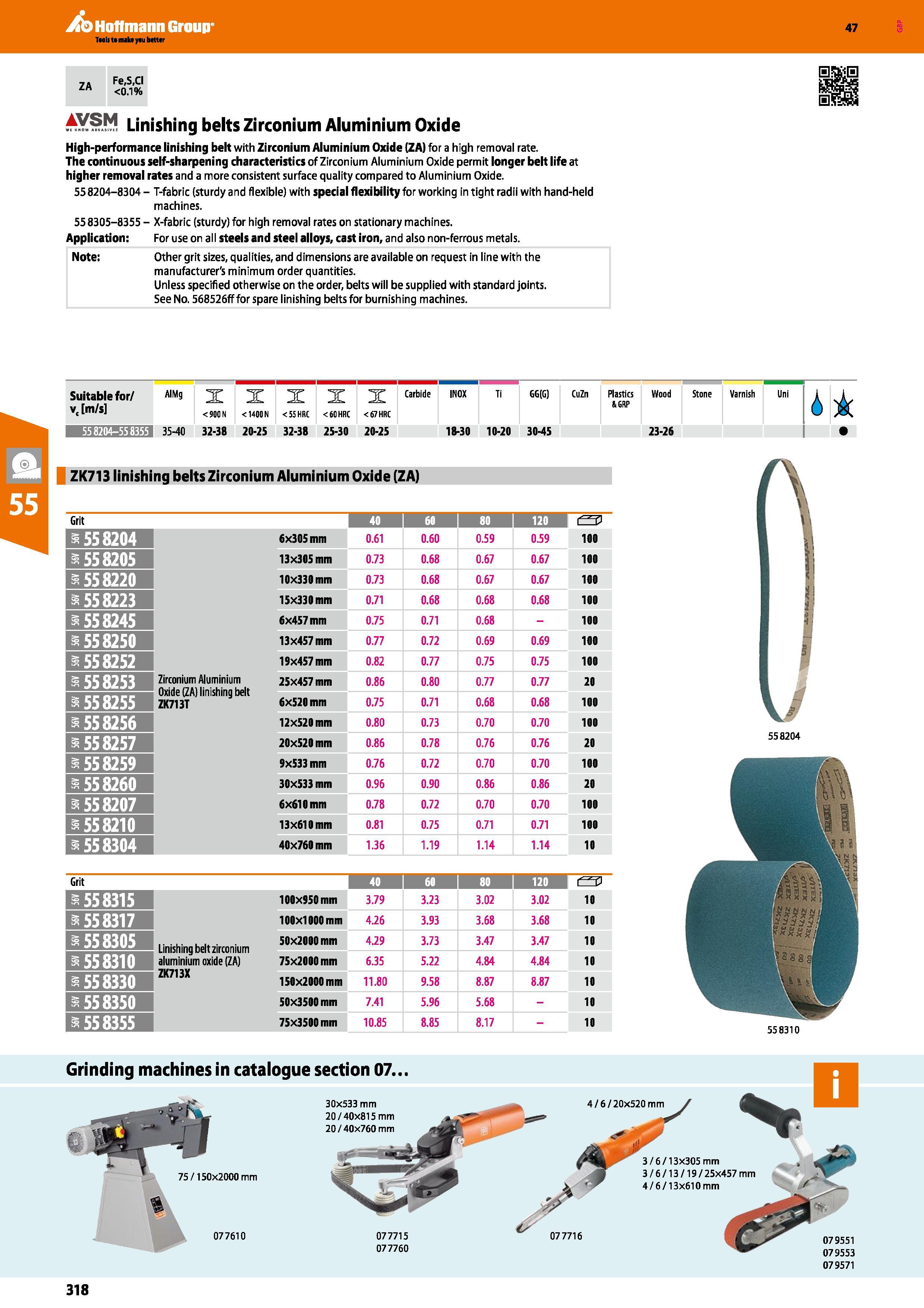

318 Каталог HOFFMANN GROUP 2016 Слесарно-монтажный и измерительный инструмент Вер. 47 ENG Стр.318

Каталог HOFFMANN GROUP 2016 Слесарный и мерительный инструмент Стр. 318 0318 ENG Lab2u

Hoffmann Group 47 ZA Fe,S,CI <0.1% Linishing belts Zirconium Aluminium Oxide High-performance linishing belt with Zirconium Aluminium Oxide (ZA) for a high removal rate. The continuous self-sharpening characteristics of Zirconium Aluminium Oxide permit longer belt life at higher removal rates and a more consistent surface quality compared to Aluminium Oxide. 558204-8304 - T-fabric (sturdy and flexible) with special flexibility for working in tight radii with hand-held machines. 55 8305-8355 - X-fabric (sturdy) for high removal rates on stationary machines. Application: For use on all steels and steel alloys, cast iron, and also non-ferrous metals. Note: Other grit sizes, qualities, and dimensions are available on request in line with the manufacturer's minimum order quantities. Unless specified otherwise on the order, belts will be supplied with standard joints. See No. 568526ff for spare linishing belts for burnishing machines. Suitable for/ v, m/s AIMg X <900 N X <1400 N X <55 HRC X < 60 HRC X <67 HRC Carbide IN0X Ti GG(G) CuZn Plastics fcGRP Wood Stone Varnish Uni i 558204-558355 35-40 32-38 20-25 32-38 25-30 20-25 18-30 10-20 30-45 23-26 ZK713 linishing belts Zirconium Aluminium Oxide (ZA) Grit s 55821 m 55821 m s 55 82; 0 558223 s 55 82' m 55 82 ;o 558252 558253 558255 558256 5582 >7 5582 >9 5582( 50 5582( m mmm s 55831 m Zirconium Aluminium Oxide (ZA) linishing belt ZK713T i 40 j 60 80 I 120 O 6x305 mm 0.61 0.60 0.59 0.59 100 13x315 mm 0.73 0.68 0.67 0.67 100 10x330 mm 0.73 0.68 0.67 0.67 100 15x330 mm 0.71 0.68 0.68 0.68 100 6x457 mm 0.75 0.71 0.68 - 100 13x457 mm 0.77 0.72 0.69 0.69 100 19x457 mm 0.82 0.77 0.75 0.75 100 25x457 mm 0.86 0.80 0.77 0.77 20 6x521 mm 0.75 0.71 0.68 0.68 100 12x520 mm 0.80 0.73 0.70 0.70 100 20x520 mm 0.86 0.78 0.76 0.76 20 9x533 mm 0.76 0.72 0.70 0.70 100 30x533 mm 0.96 0.90 0.86 0.86 20 6x610 mm 0.78 0.72 0.70 0.70 100 13x610 mm 0.81 0.75 0.71 0.71 100 40x760 mm 1.36 1.19 1.14 1.14 10 558204 Grit 1 40 i 60 80 I 120 O mmm 100x950 mm 3.79 3.23 3.02 3.02 10 100x1000 mm 4.26 3.93 3.68 3.68 10 558305 Linishing belt zirconium aluminium oxide (ZA) ZK713X 50x2000 mm 4.29 3.73 3.47 3.47 10 558310 75x2000 mm 6.35 5.22 4.84 4.84 10 558330 150x2000 mm 11.80 9.58 8.87 8.87 10 558350 50x3500 mm 7.41 5.96 5.68 - 10 558355 75x3500 mm 10.85 8.85 8.17 - 10 558310 Grinding machines in catalogue 077610 75/150X2000 mm section 07... 077715 077760 3/6/13X305 mm 3/6/13/19/25x457 mm 4/6/13x6l0mm 07 9551 079553 079571 30x533 mm 20/40x815 mm 20/40x760 mm 4/6/20x520 mm 318
