315 Каталог HOFFMANN GROUP 2016 Слесарно-монтажный и измерительный инструмент Вер. 47 ENG Стр.315

Каталог HOFFMANN GROUP 2016 Слесарный и мерительный инструмент Стр. 315 0315 ENG Lab2u

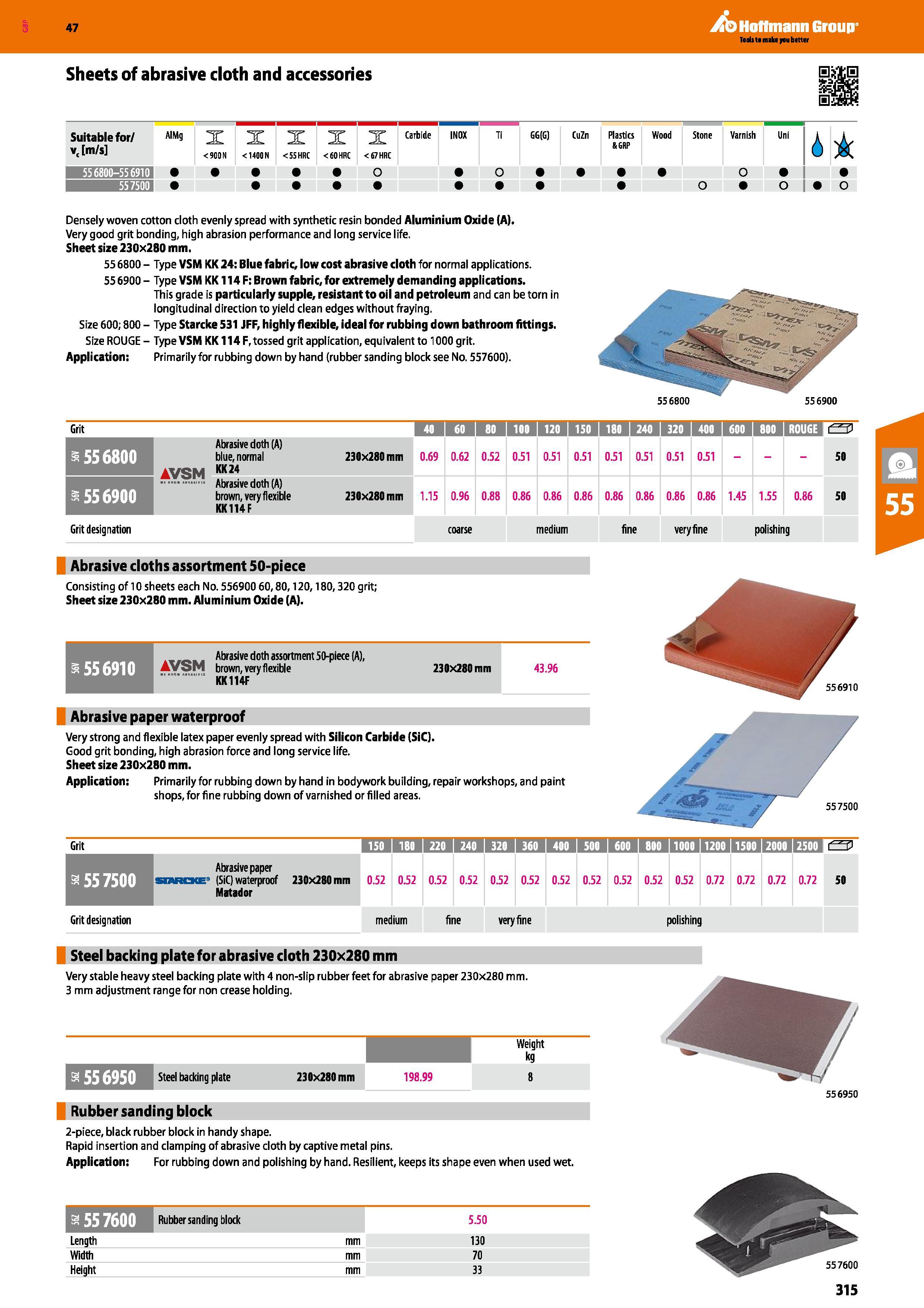

47 Sheets of abrasive cloth and accessories Hoffmann Group Suitable for/ vc m/s AIMg X < 900 N X <1400 N X <55 HRC X <60 HRC Carbide <67 HRC INOX Ti GG(G) CuZn Plastics MRP Wood Stone Varnish Uni 4 556800-556910 O 557500 o Densely woven cotton cloth evenly spread with synthetic resin bonded Aluminium Oxide (A). Very good grit bonding, high abrasion performance and long service life. Sheet size 230x280 mm. 55 6800 - Type VSM KK 24: Blue fabric, low cost abrasive cloth for normal applications. 55 6900 - Type VSM KK 114 F: Brown fabric, for extremely demanding applications. This grade is particularly supple, resistant to oil and petroleum and can be torn in longitudinal direction to yield clean edges without fraying. Size 600; 800 - Type Starcke 531 JFF, highly flexible, ideal for rubbing down bathroom fittings. Size ROUGE - Type VSM KK 114 F, tossed grit application, equivalent to 1000 grit. Application: Primarily for rubbing down by hand (rubber sanding block see No. 557600). Grit 80 1 100 1 120 1 150 I 180 1 240 I 320 I 400 I 600 I 800 I ROUGE s 55 6800 Abrasive doth (A) blue, normal VSM KK24 231x280 mm 0.69 0.62 0.52 0.51 0.51 0.51 0.51 0.51 0.51 0.51 50 brown, very flexible KK114F 231x280 mm 1.15 0.96 0.88 0.86 0.86 0.86 0.86 0.86 0.86 0.86 1.45 1.55 0.86 50 Grit designation coarse medium fine very fine polishing Abrasive cloths assortment 50-piece Consisting of 10 sheets each No. 556900 60,80,120,180,320 grit; Sheet size 230x280 mm. Aluminium Oxide (A). Abrasive doth assortment 50-piece (A), VSM brown, very flexible 230x280 mm 43.96 KK114F 556910 Abrasive paper waterproof Very strong and flexible latex paper evenly spread with Silicon Carbide (SiC). Good grit bonding, high abrasion force and long service life. Sheet size 230x280 mm. Application: Primarily for rubbing down by hand in bodywork building, repair workshops, and paint shops, for fine rubbing down of varnished or filled areas. Grit 150 1 180 1 220 1 240 1 320 1 360 1 400 1 500 1 600 1 800 1 1000 1 1200 1 1500 1 2000 1 2500 S3 s 55 7500 Abrasive paper sdhcke1 (SiC) waterproof 230x280 mm Matador 0.52 0.52 0.52 0.52 0.52 0.52 0.52 0.52 0.52 0.52 0.52 0.72 0.72 0.72 0.72 50 Grit designation medium fine very fine polishing Steel backing plate for abrasive cloth 230x280 mm Very stable heavy steel backing plate with 4 non-slip rubber feet for abrasive paper 230x280 mm. 3 mm adjustment range for non crease holding. Weight kg a 55 6950 Steel backing plate 230x280 mm 198.99 8 Rubber sanding block 2-piece, black rubber block in handy shape. Rapid insertion and clamping of abrasive cloth by captive metal pins. Application: For rubbing down and polishing by hand. Resilient, keeps its shape even when used wet. Iglyy/niTfB Rubber sanding block 5.50 Length mm 130 Width mm 70 Height mm 33 556800 556900 557500 557600 315
