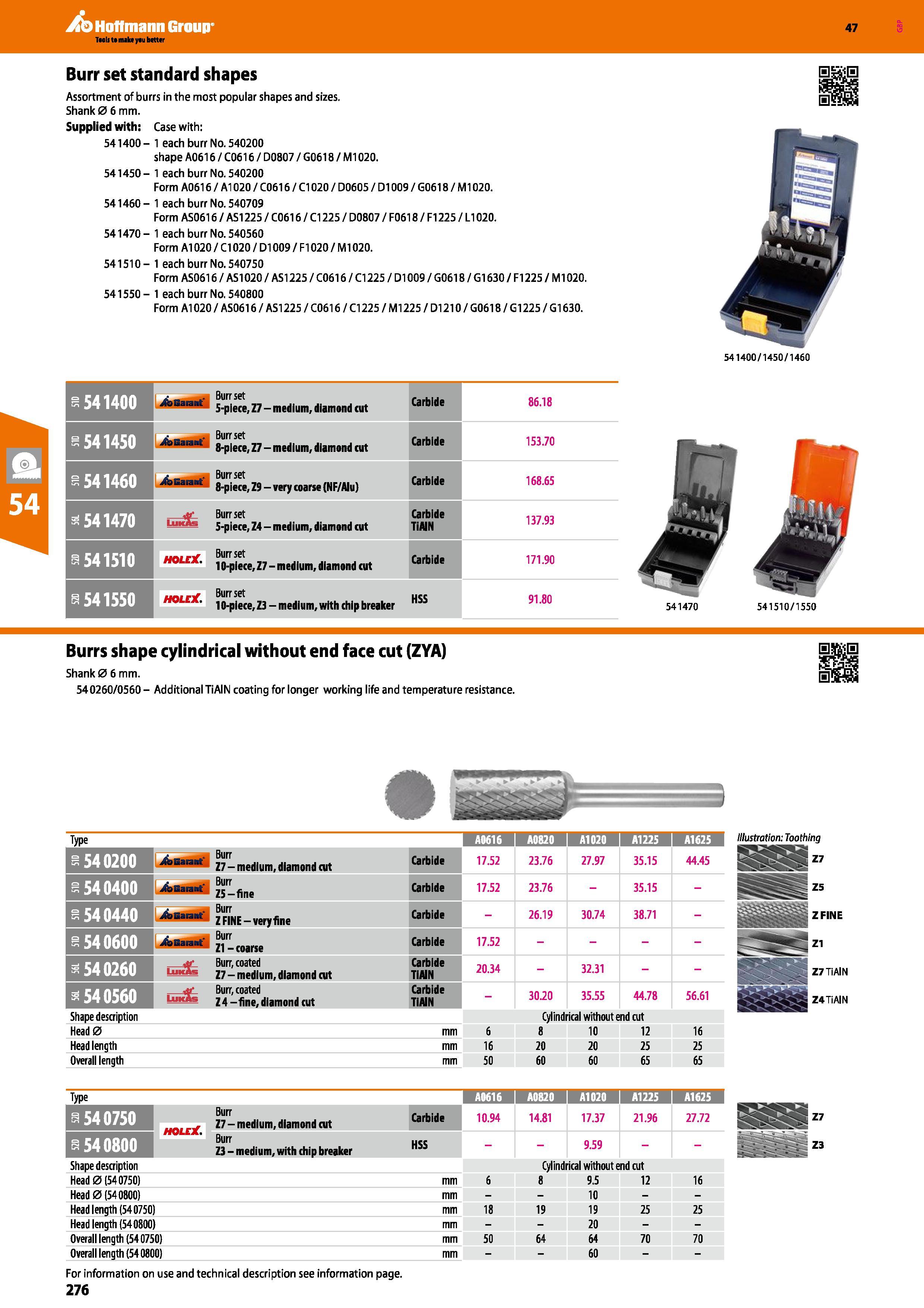

Hoffmann Group 47 Burr set standard shapes Assortment of burrs in the most popular shapes and sizes. Shank 0 6 mm. Supplied with: Case with: 541400 - 1 each burr No. 540200 shape A0616 / C0616 / D0807 / G0618 / M1020. 541450 - 1 each burr No. 540200 Form A0616 / A1020 / C0616 / C1020 / D0605 / D1009 / G0618 / M1020. 541460 - 1 each burr No. 540709 Form AS0616 / AS1225 / C0616 / Cl 225 / D0807 / F0618 / FI 225 / LI 020. 541470 - 1 each burr No. 540560 Form A1020 / Cl 020 / D1009 / FI 020 / Ml 020. 541510- 1 each burr No.540750 Form AS0616 / AS1020 / AS1225 / C0616 / Cl 225 / D1009 / G0618 / G1630 / FI 225 / Ml 020. 541550 - 1 each burr No. 540800 Form A1020 / AS0616 / AS1225 / C0616 / Cl 225 / Ml 225 / D1210 / G0618 / G1225 / G1630. 541400/1450/1460 541400 j . Burr set - 5-piece, Z7 - medium, diamond cut Carbide 86.18 541450 j Burr set - 8-piece, Z7 - medium, diamond cut Carbide 153.70 541460 - Burr set g B _ ¥Wy (oarse (NF/A U) Carbide 168.65 s541470 Burr set 5-piece, Z4 - medium, diamond cut Carbide TiAIN 137.93 541510 HauV Burrset 10-piece, Z7-medium, diamond cut Carbide 171.90 541550 HOLE BUrrSet 10-piece, Z3 - medium, with chip breaker HSS 91.80 Burrs shape cylindrical without end face cut (ZYA) Shank 0 6 mm. 540260/0560 - Additional TiAIN coating for longer working life and temperature resistance. 541470 541510/1550 Type A0616 I A0820 I A1020 A1225 I A1625 540200 i&Gaiant Burr Z7 - medium, diamond cut Carbide 17.52 23.76 27.97 35.15 44.45 540400 Garant" Burr Z5 fine Carbide 17.52 23.76 - 35.15 - 540440 i&Gaianf Burr ZFINE-very fine Carbide - 26.19 30.74 38.71 - 540600 Garant" Burr Z1 - coarse Carbide 17.52 - £54 0260 Lm& Burr, coated Z7 - medium, diamond cut Carbide TiAIN 20.34 - 32.31 54 0560 LmaCs Burr, coated Z4 -fine, diamond cut Carbide TiAIN - 30.20 35.55 44.78 56.61 Shape description Cylindrical without end cut Head 0 mm 6 8 10 12 16 Head length mm 16 20 20 25 25 Overall length mm 50 60 60 65 65 Type A0616 I A0820 I A1020 A1225 I A1625 540750 HQLSX. Burr Z7 - medium, diamond cut Carbide 10.94 14.81 17.37 21.96 27.72 540800 Burr Z3 - medium, with chip breaker HSS - 9.59 Shape description Cylindrical without end cut Head 0(540750) mm 6 8 9.5 12 16 Head 0(540800) mm - 10 Head length (540750) mm 18 19 19 25 25 Head length (540800) mm - 20 Overall length (540750) mm 50 64 64 70 70 Overall length (540800) mm - 60 Illustration: Toothing Z7 Z5 ZFINE Z1 Z7 TiAIN Z4 TiAIN For information on use and technical description see information page. 276
