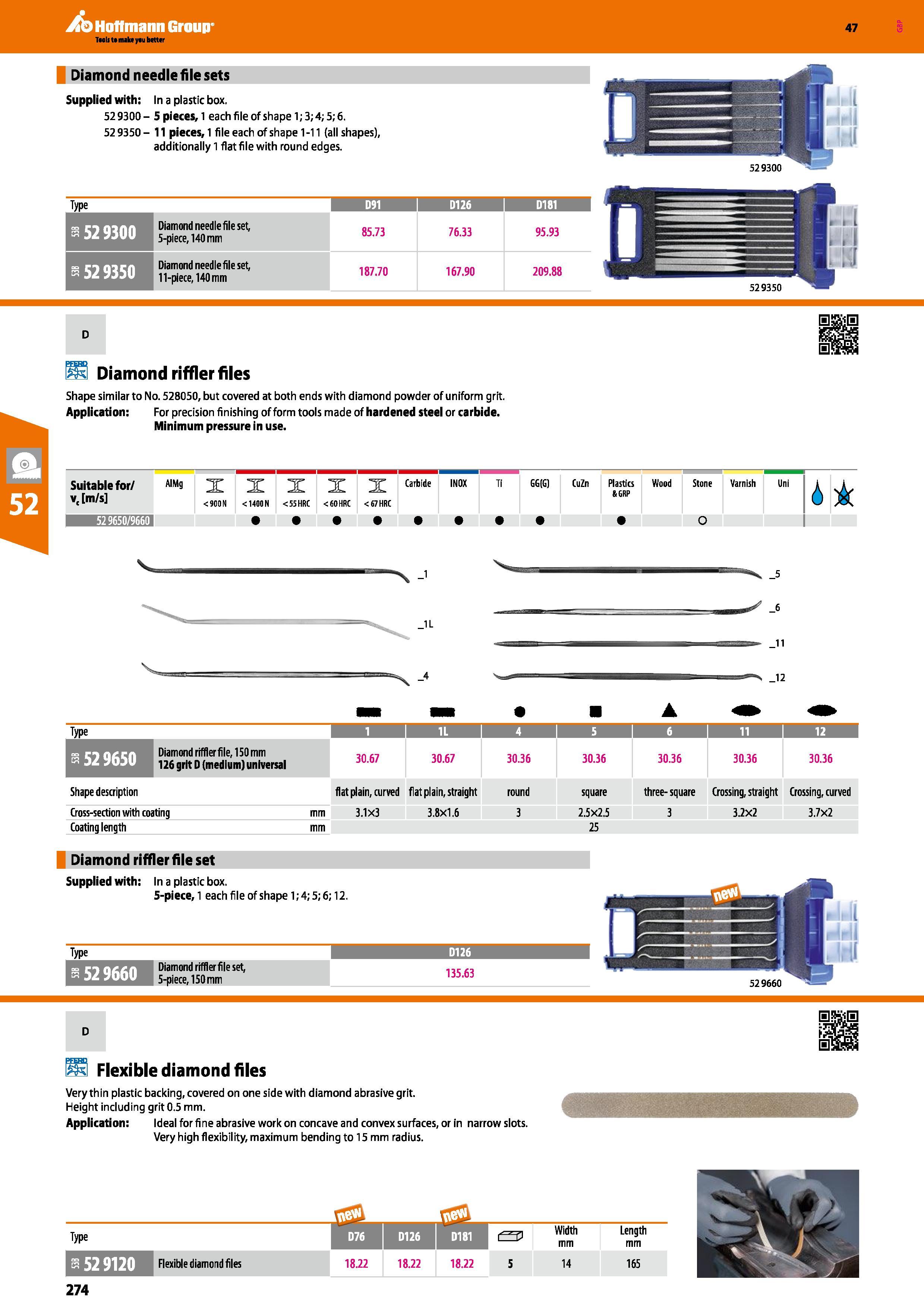

Hoffmann Group Diamond needle file sets Supplied with: In a plastic box. 529300- 5 pieces, 1 each file of shape 1; 3; 4; 5; 6. 52 9350 - 11 pieces, 1 file each of shape 1 -11 (all shapes), additionally 1 flat file with round edges. 47 Type D91 1 D126 D181 SI 52 9300 Diamond needle file set 5-piece, 140 mm 85.73 76.33 95.93 H 52 9350 Diamond needle file set, 11-piece, 140 mm 187.70 167.90 209.88 IH Diamond riffler files Shape similar to No. 528050, but covered at both ends with diamond powder of uniform grit. Application: For precision finishing of form tools made of hardened steel or carbide. Minimum pressure in use. _1L _5 _6 a- 11 Suitable for/ v, m/s AIMg X < 900 N X <1400 N X <55 HRC X <60 HRC X <67 HRC Carbide IN0X Ti GG(G) CuZn Plastics &GRP Wood Stone Varnish Uni 529650/9660 O 1 _12 Type I 4 I 5 I 6 I 11 12 I Diamond riffler file, 150 mm 126 grit D (medium) universal 30.67 30.67 30.36 30.36 30.36 30.36 30.36 Shape description flat plain, curved fat plain, straight round square three-square Crossing, straight Crossing, curved Cross-section with coating mm 3.1x3 3.8X1.6 3 2.5X2.5 3 3.2x2 3.7x2 Coating length Diamond riffler file set Supplied with: In a plastic box. 5-piece, 1 each file of shape 1; 4; 5; 6; 12. 25 Type D126 3 52966 Diamond riffler file set, 5-piece, 150 mm 135.63 Hi Flexible diamond files Very thin plastic backing, covered on one side with diamond abrasive grit. Height including grit 0.5 mm. Application: Ideal for fine abrasive work on concave and convex surfaces, or in narrow slots. Very high flexibility, maximum bending to 15 mm radius. Type D126 mm Width mm Length mm Flexible diamond files 18.22 18.22 18.22 5 14 165 529300 529660 J 274
