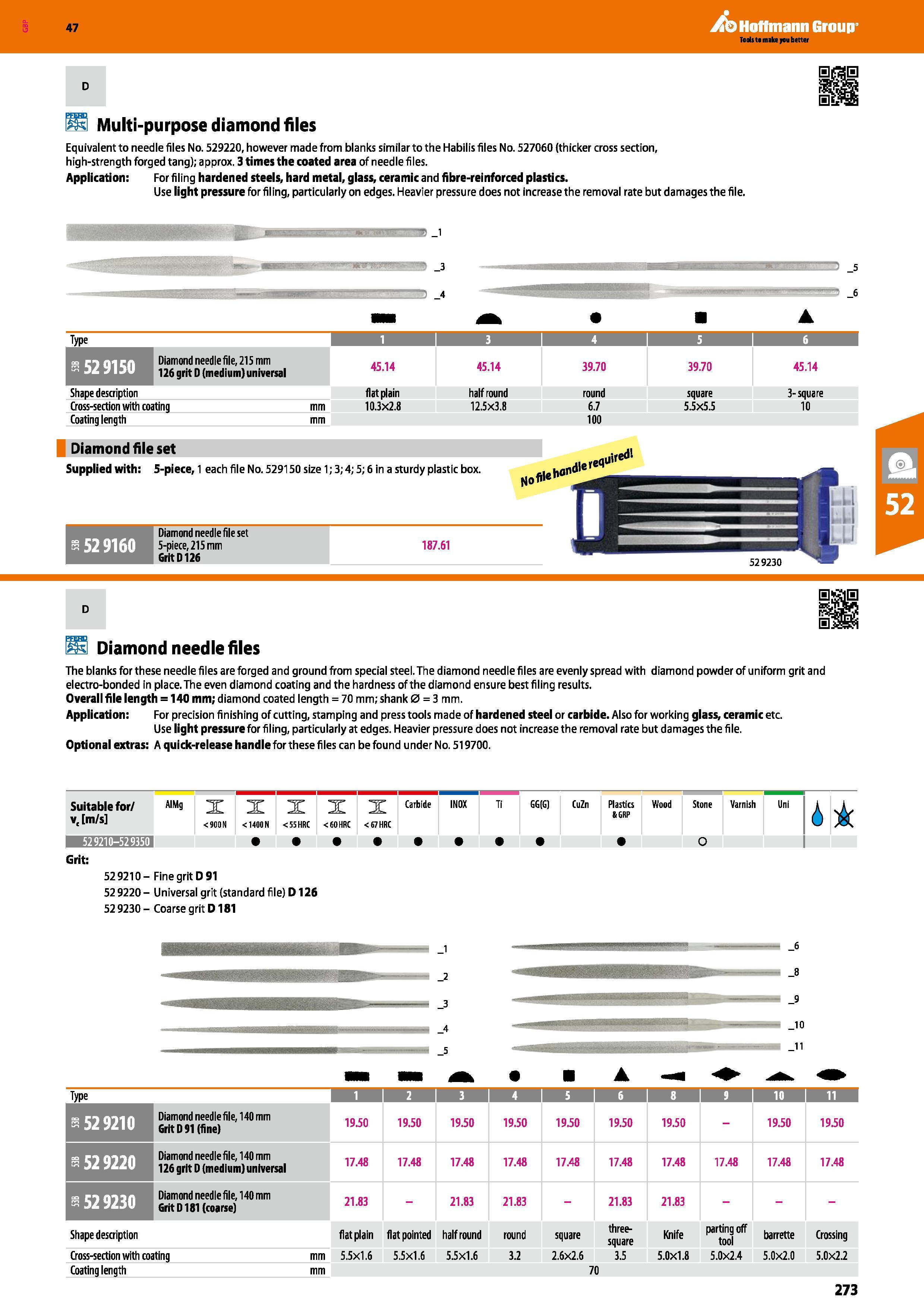

Hoffmann Group 47 Equivalent to needle files No. 529220, however made from blanks similar to the Habilis files No. 527060 (thicker cross section, high-strength forged tang); approx. 3 times the coated area of needle files. Application: For filing hardened steels, hard metal, glass, ceramic and fibre-reinforced plastics. Use light pressure for filing, particularly on edges. Heavier pressure does not increase the removal rate but damages the file. Type 1 3 4 5 6 529150 Diamond needle file, 215 mm 126 grit D (medium) universal 45.14 45.14 39.70 39.70 45.14 Shape description flat plain half round round square 3-square Cross-section with coating mm 10.3x2.8 12.5x3.8 6.7 5.5X5.5 10 Diamond file set Supplied with: 5-piece, 1 each file No. 529150 size 1; 3; 4; 5; 6 in a sturdy plastic box. No fjleharv 529160 Diamond needle file set 5-piece, 215 mm Grit D126 187.61 lH Diamond needle files The blanks for these needle files are forged and ground from special steel. The diamond needle files are evenly spread with diamond powder of uniform grit and electro-bonded in place. The even diamond coating and the hardness of the diamond ensure best filing results. Overall file length = 140 mm; diamond coated length = 70 mm; shank 0 = 3 mm. Application: For precision finishing of cutting, stamping and press tools made of hardened steel or carbide. Also for working glass, ceramic etc. Use light pressure for filing, particularly at edges. Heavier pressure does not increase the removal rate but damages the file. Optional extras: A quick-release handle for these files can be found under No. 519700. Suitable for/ v, m/s AIMg X <900N X <1400 N X <55 HRC X <60 HRC X <67 HRC Carbide IN0X Ti GG(G) CuZn Plastics MRP Wood Stone Varnish Uni I 529210-529350 O Grit: 529210- Fine grit D 91 52 9220 - Universal grit (standard file) D126 529230- Coarse grit D181 Type 1 1 2 I 3 I 4 I 5 1 6 1 8 J 10 1 11 529210 Diamond needle file, 140 mm Grit D 91 (fine) 19.50 19.50 19.50 19.50 19.50 19.50 19.50 - 19.50 19.50 529220 Diamond needle file, 140 mm 126 grit D (medium) universal 17.48 17.48 17.48 17.48 17.48 17.48 17.48 17.48 17.48 17.48 529230 Diamond needle file, 140 mm Grit D181 (coarse) 21.83 - 21.83 21.83 - 21.83 21.83 Shape description flat plain flat pointed half round round square three- square Knife parting off tool barrette Crossing Cross-section with coating mm 5.5x1.6 5.5x1.6 5.5x1.6 3.2 2.6X2.6 3.5 5.0x1.8 5.0X2.4 5.0X2.0 5.0X2.2 Coating length 70 273
