88 Каталог HOFFMANN GROUP 2016 Производственная мебель для работы и хранения Вер. 47 Стр.88

Каталог HOFFMANN GROUP 2016 Производственная мебель Стр. 88 0088 ENG Lab2u

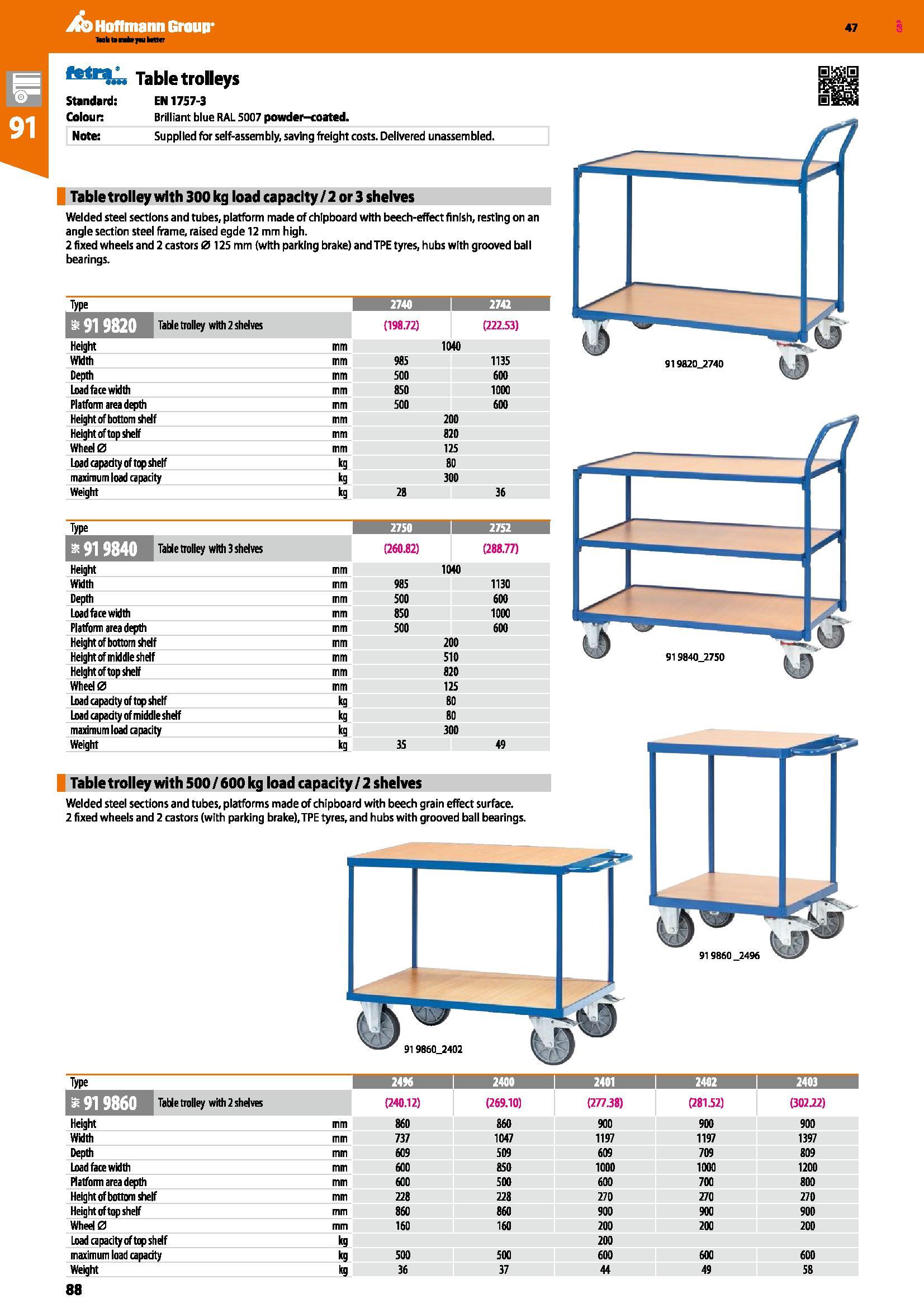

Table trolleys Standard: Colour: Note: EN1757-3 Brilliant blue RAL 5007 powder-coated. Supplied for self-assembly, saving freight costs. Delivered unassembled. Table trolley with 300 kg load capacity / 2 or 3 shelves Welded steel sections and tubes, platform made of chipboard with beech-effect finish, resting on an angle section steel frame, raised egde 12 mm high. 2 fixed wheels and 2 castors 0125 mm (with parking brake) and TPE tyres, hubs wtth grooved ball bearings. Type 2740 2742 I l 'JlH-M1 Table trolley with 2 shelves (198.72) (222.53) Height mm 1040 Width mm 985 1135 Depth mm 500 600 Load face width mm 850 1000 Platform area depth mm 500 600 Height of bottom shelf mm 200 Height of top shelf mm 820 Wheel 0 mm 125 Load capadty of top shelf kg 80 maximum load capacity kg 300 Weight kg 28 36 Type 2750 2752 i Table trolley with 3 shelves (260.82) (288.77) Height mm 1040 Width mm 985 1130 Depth mm 500 600 Load face width mm 850 1000 Platform area depth mm 500 600 Height of bottom shelf mm 200 Height of middle shelf mm 510 Height of top shelf mm 820 Wheel 0 mm 125 Load capadty of top shelf kg 80 Load capadty of middle shelf kg 80 maximum load capacity kg 300 Weight kg 35 49 Table trolley with 500/600 kg load capacity / 2 shelves Welded steel sections and tubes, platforms made of chipboard with beech grain effect surface. 2 fixed wheels and 2 castors (with parking brake),TPE tyres, and hubs with grooved ball bearings. Type 2496 I 2400 1 2401 1 2402 I 2403 I K'riM Table trolley with 2 shelves (240.12) (269.10) (277.38) (281.52) (30202) Height mm 860 860 900 900 900 Width mm 737 1047 1197 1197 1397 Depth mm 609 509 609 709 809 Load face width mm 600 850 1000 1000 1200 Platform area depth mm 600 500 600 700 800 Height of bottom shelf mm 228 228 270 270 270 Height of top shelf mm 860 860 900 900 900 Wheel 0 mm 160 160 200 200 200 Load capacity of top shelf kg 200 maximum load capacity kg 500 500 600 600 600 Weight kg 36 37 44 49 58
