86 Каталог HOFFMANN GROUP 2016 Производственная мебель для работы и хранения Вер. 47 Стр.86

Каталог HOFFMANN GROUP 2016 Производственная мебель Стр. 86 0086 ENG Lab2u

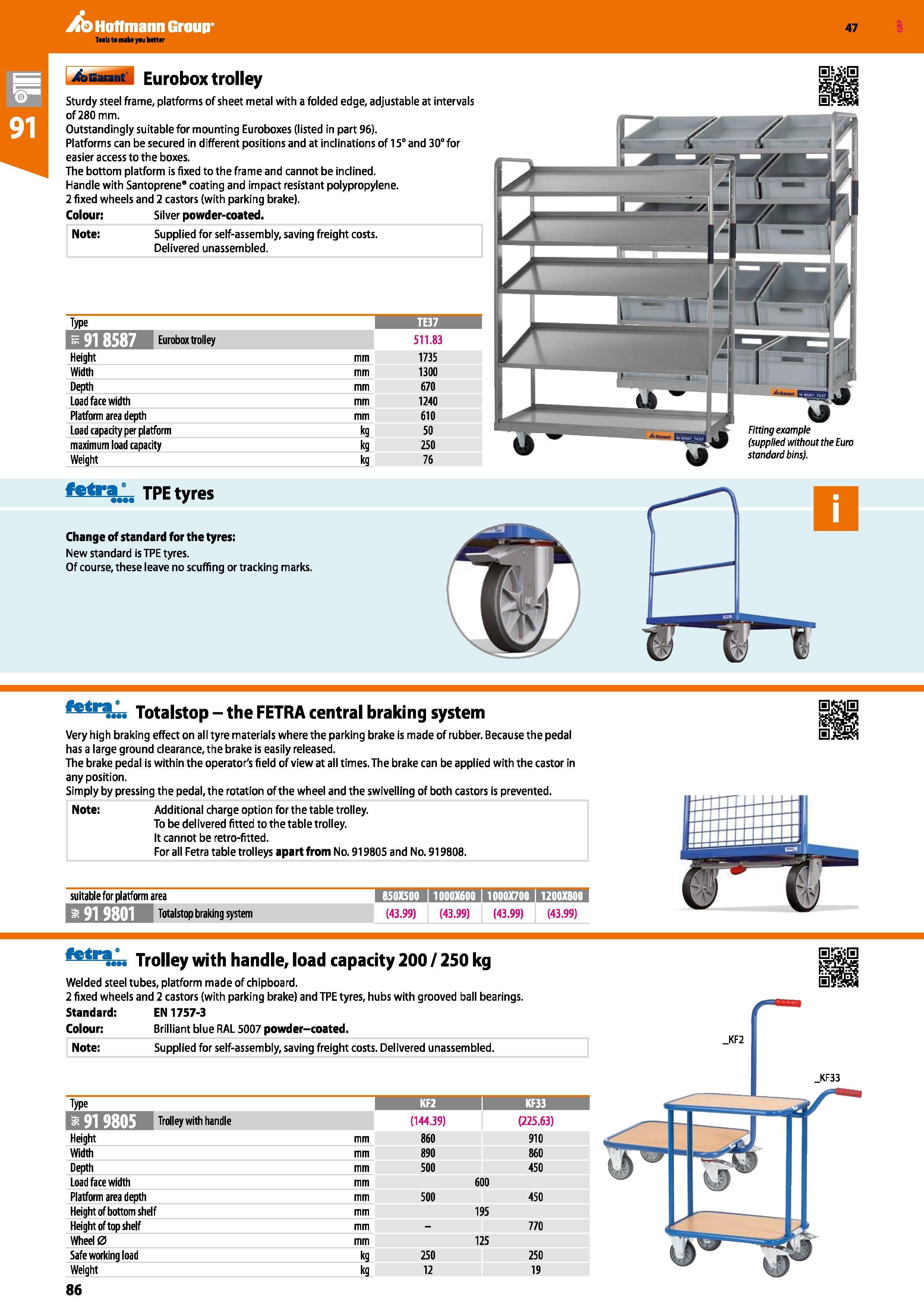

Hoffmann Group 918587 Eurobox trolley Height Width Depth Load face width Platform area depth Load capacity per platform maximum load capacity Weight Eurobox trolley Sturdy steel frame, platforms of sheet metal with a folded edge, adjustable at intervals of 280 mm. Outstandingly suitable for mounting Euroboxes (listed in part 96). Platforms can be secured in different positions and at inclinations of 15° and 30° for easier access to the boxes. The bottom platform is fixed to the frame and cannot be inclined. Handle with Santoprene coating and impact resistant polypropylene. 2 fixed wheels and 2 castors (with parking brake). Colour: Silver powder-coated. Note: Supplied for self-assembly, saving freight costs. Delivered unassembled. Fitting example (supplied without the Eurn standard bins). 511.83 1735 1300 670 1240 610 50 250 76 fetra... TPE tyres Change of standard for the tyres: New standard is TPE tyres. Of course, these leave no scuffing or tracking marks. Totalstop - the FETRA central braking system Very high braking effect on all tyre materials where the parking brake is made of rubber. Because the pedal has a large ground clearance, the brake is easily released. The brake pedal is within the operator's field of view at all times. The brake can be applied with the castor in any position. Simply by pressing the pedal, the rotation of the wheel and the swivelling of both castors is prevented. Note: Additional charge option for the table trolley. To be delivered fitted to the table trolley. It cannot be retro-fitted. For all Fetra table trolleys apart from No. 919805 and No. 919808. suitable for platform area Totalstop braking system (43.99) (43.99) (43.99) (43.99) Trolley with handle, load capacity 200 / 250 kg Welded steel tubes, platform made of chipboard. 2 fixed wheels and 2 castors (with parking brake) and TPE tyres, hubs with grooved ball bearings. Standard: EN1757-3 Colour: Brilliant blue RAL 5007 powder-coated. Note: Supplied for self-assembly, saving freight costs. Delivered unassembled. _KF2 Type KF2 1 KF33 EUlIJKIIl'B Trolley with handle (144.39) (225.63) Height mm 860 910 Width mm 890 860 Depth mm 500 450 Load face width mm 600 Platform area depth mm 500 450 Height of bottom shelf mm 195 Height of top shelf mm - 770 Wheel 0 mm 125 Safe working load kg 250 250 Weight kg 12 19 _KF33 86
