91 Каталог HOFFMANN GROUP 2016 Производственная мебель для работы и хранения Вер. 47 Стр.91

Каталог HOFFMANN GROUP 2016 Производственная мебель Стр. 91 0091 ENG Lab2u

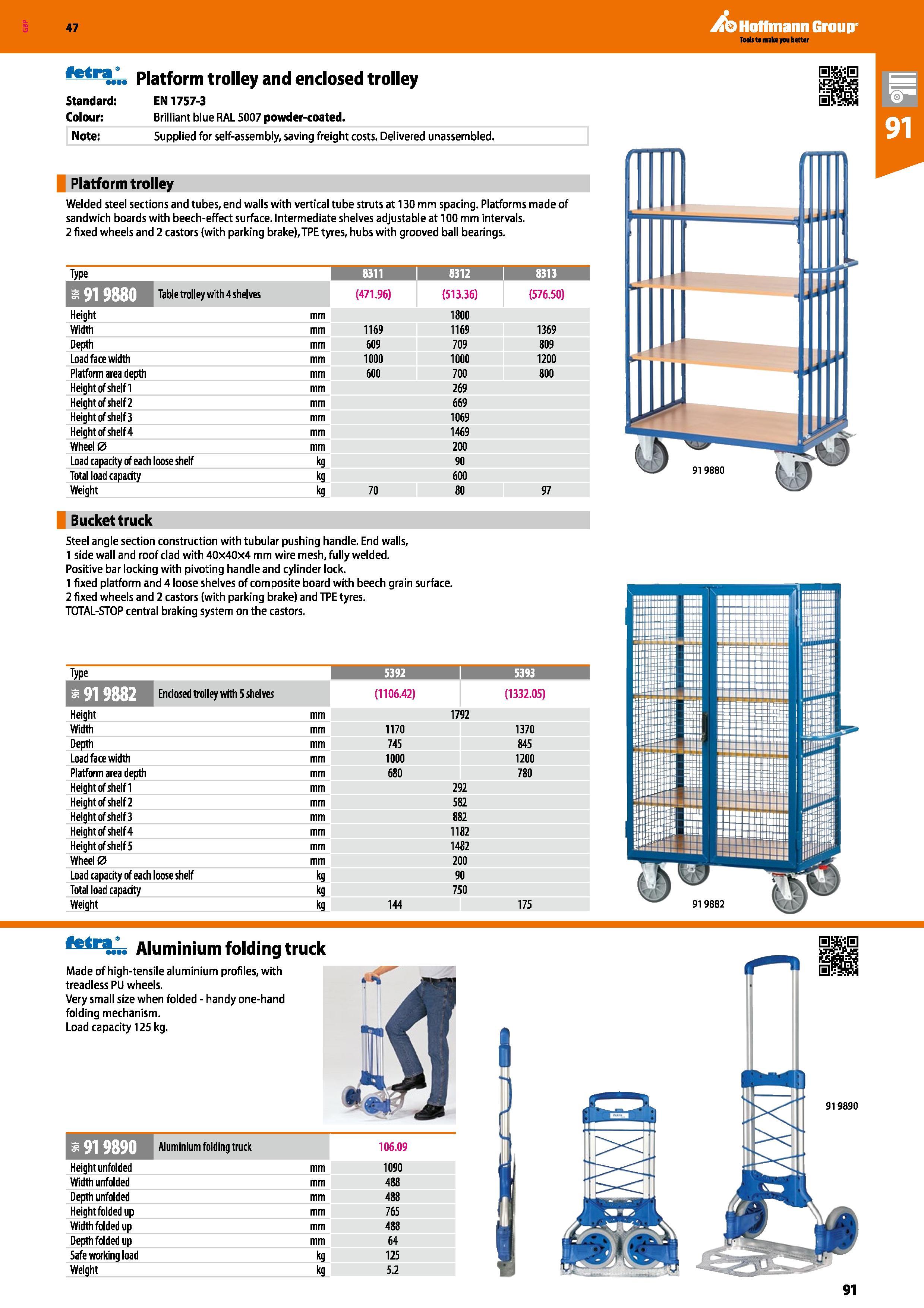

Hoffmann Group 47 Tads ta make jau better Platform trolley and enclosed trolley Standard: EN1757-3 Colour: Brilliant blue RAL 5007 powder-coated. Note: Supplied for self-assembly, saving freight costs. Delivered unassembled. Platform trolley Welded steel sections and tubes, end walls with vertical tube struts at 130 mm spacing. Platforms made of sandwich boards with beech-effect surface. Intermediate shelves adjustable at 100 mm intervals. 2 fixed wheels and 2 castors (with parking brake),TPE tyres, hubs with grooved ball bearings. Type I 8311 I 8312 I 8313 Table trolley with 4 shelves (471.96) (513.36) (576.50) Height mm 1800 Width mm 1169 1169 1369 Depth mm 609 709 809 Load face width mm 1000 1000 1200 Platform area depth mm 600 700 800 Height of shelf 1 mm 269 Height of shelf 2 mm 669 Height of shelf 3 mm 1069 Height of shelf 4 mm 1469 Wheel 0 mm 200 Load capacity of each loose shelf kg 90 Total load capacity kg 600 Weight kg 70 80 97 Bucket truck Steel angle section construction with tubular pushing handle. End walls, 1 sidewall and roof clad with 40x40x4 mm wire mesh, fully welded. Positive bar locking with pivoting handle and cylinder lock. 1 fixed platform and 4 loose shelves of composite board with beech grain surface. 2 fixed wheels and 2 castors (with parking brake) and TPE tyres. TOTAL-STOP central braking system on the castors. Type 5392 1 5393 Enclosed trolley with 5 shelves (1106.42) (1332.05) Height mm 1792 Width mm 1170 1370 Depth mm 745 845 Load face width mm 1000 1200 Platform area depth mm 680 780 Height of shelf 1 mm 292 Height of shelf 2 mm 582 Height of shelf 3 mm 882 Height of shelf 4 mm 1182 Height of shelf 5 mm 1482 Wheel 0 mm 200 Load capacity of each loose shelf kg 90 Total load capacity kg 750 Weight kg 144 175 fetra Aluminium folding truck Made of high-tensile aluminium profiles, with treadless PU wheels. Very small size when folded - handy one-hand folding mechanism. Load capacity 125 kg. Aluminium folding truck Height unfolded Width unfolded Depth unfolded Height folded up Width folded up Depth folded up Safe working load Weight mm kg kg 106.09 1090 488 488 765 488 64 125 5.2 0 91
