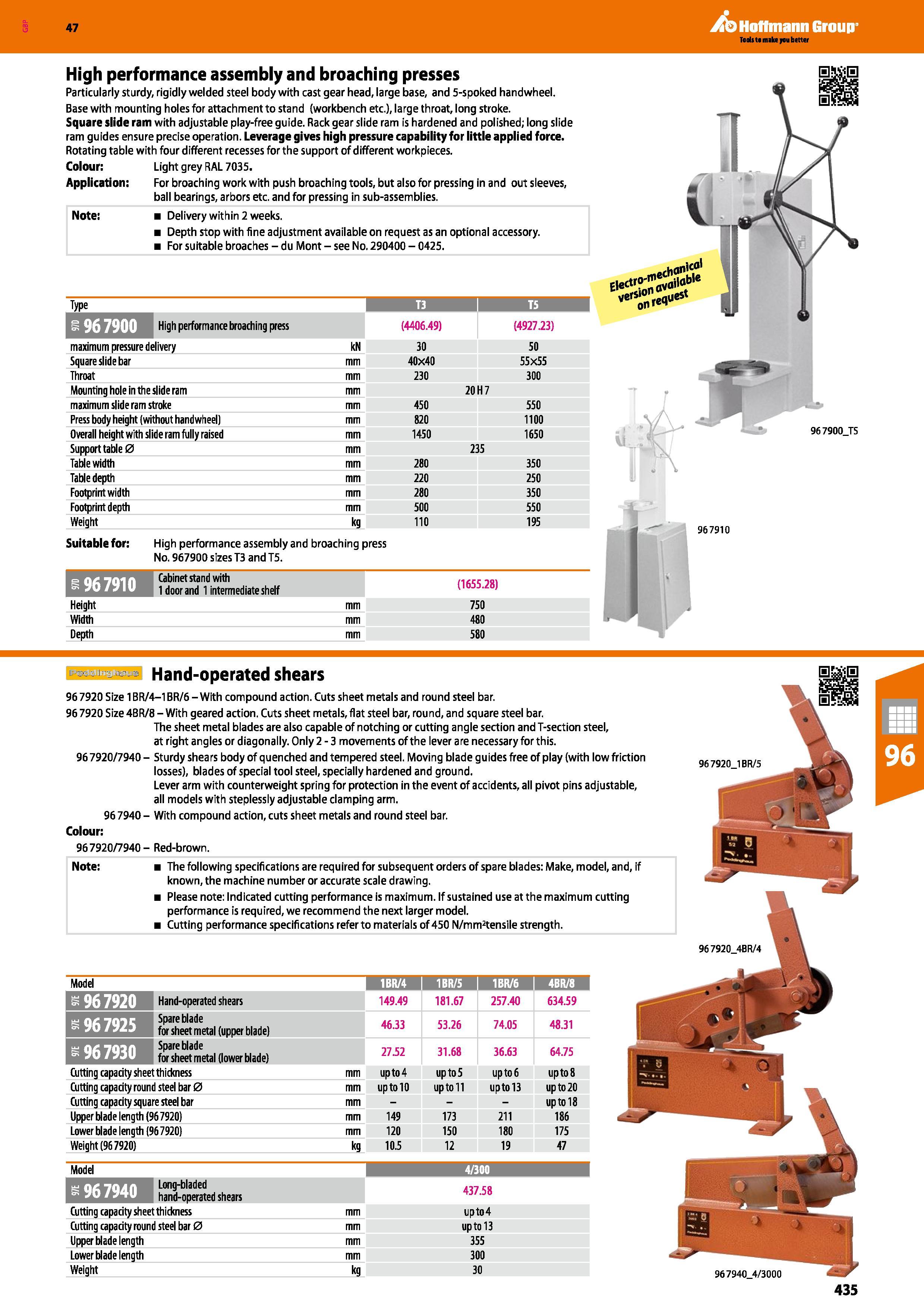

Hoffmann Group 47 High performance assembly and broaching presses Particularly sturdy, rigidly welded steel body with cast gear head, large base, and 5-spoked handwheel. Base with mounting holes for attachment to stand (workbench etc.), large throat, long stroke. Square slide ram with adjustable play-free guide. Rack gear slide ram is hardened and polished; long slide ram guides ensure precise operation. Leverage gives high pressure capability for little applied force. Rotating table with four different recesses for the support of different workpieces. Colour: Light grey RAL 7035. Application: For broaching work with push broaching tools, but also for pressing in and out sleeves, ball bearings, arbors etc. and for pressing in sub-assemblies. Note; Delivery within 2 weeks. Depth stop with line adjustment available on request as an optional accessory. For suitable broaches - du Mont - see No. 290400 - 0425. Type T3 T5 tsjJJ.'Wi.'ImB High performance broaching press (4406.49) (4927.23) maximum pressure delivery kN 30 50 Square slide bar mm 40x40 55x55 Throat mm 230 300 Mounting hole in the slide ram mm 20 H 7 maximum slide ram stroke mm 450 550 Press body height (without handwheel) mm 820 1100 Overall height with slide ram fully raised mm 1450 1650 Support table 0 mm 235 Table width mm 280 350 Table depth mm 220 250 Footprint width mm 280 350 Footprint depth mm 500 550 Weight kg 110 195 96 7900_T5 \ Suitable for: High performance assembly and broaching press No. 967900 sizes T3 and T5. s 967910 Cabinet stand with 1 door and 1 intermediate shelf (1655.28) Height mm 750 Width mm 480 Depth mm 580 967910 Hand-operated shears 96 7920 Size 1BR/4-1BR/6 - With compound action. Cuts sheet metals and round steel bar. 96 7920 Size 4BR/8 - With geared action. Cuts sheet metals, flat steel bar, round, and square steel bar. The sheet metal blades are also capable of notching or cutting angle section and T-section steel, at right angles or diagonally. Only 2-3 movements of the lever are necessary for this. 96 7920/7940 - Sturdy shears body of quenched and tempered steel. Moving blade guides free of play (with low friction losses), blades of special tool steel, specially hardened and ground. Lever arm with counterweight spring for protection in the event of accidents, all pivot pins adjustable, all models with steplessly adjustable clamping arm. 96 7940 - With compound action, cuts sheet metals and round steel bar. Colour: 967920/7940- Red-brown. 96 7920_1 BR/5 Note: The following specifications are required for subsequent orders of spare blades: Make, model, and, if known, the machine number or accurate scale drawing. Please note: Indicated cutting performance is maximum. If sustained use at the maximum cutting performance is required, we recommend the next larger model. Cutting performance specifications refer to materials of 450 N/mm2tensile strength. Model 1BR/4 I 1BR/5 I 1BR/6 I 4BR/8 s 96 7920 Hand-operated shears 149.49 181.67 257.40 634.59 96 7925 Spare blade for sheet metal (upper blade) 46.33 53.26 74.05 48.31 s 96 7930 Spare blade for sheet metal (lower blade) 27.52 31.68 36.63 64.75 Cutting capacity sheet thickness mm up to 4 up to 5 up to 6 upto8 Cutting capacity round steel bar 0 mm uptolO up toll upto13 up to 20 Cutting capacity square steel bar mm - - - up to 18 Upper blade length (96 7920) mm 149 173 211 186 Lower blade length (96 7920) mm 120 150 180 175 Weight (96 7920) kg 10.5 12 19 47 Model 4/300 Long-bladed hand-operated shears 437.58 Cutting capacity sheet thickness mm upto4 Cutting capacity round steel bar 0 mm up to 13 Upper blade length mm 355 Lower blade length mm 300 Weight kg 30 967940_4/3000 435
