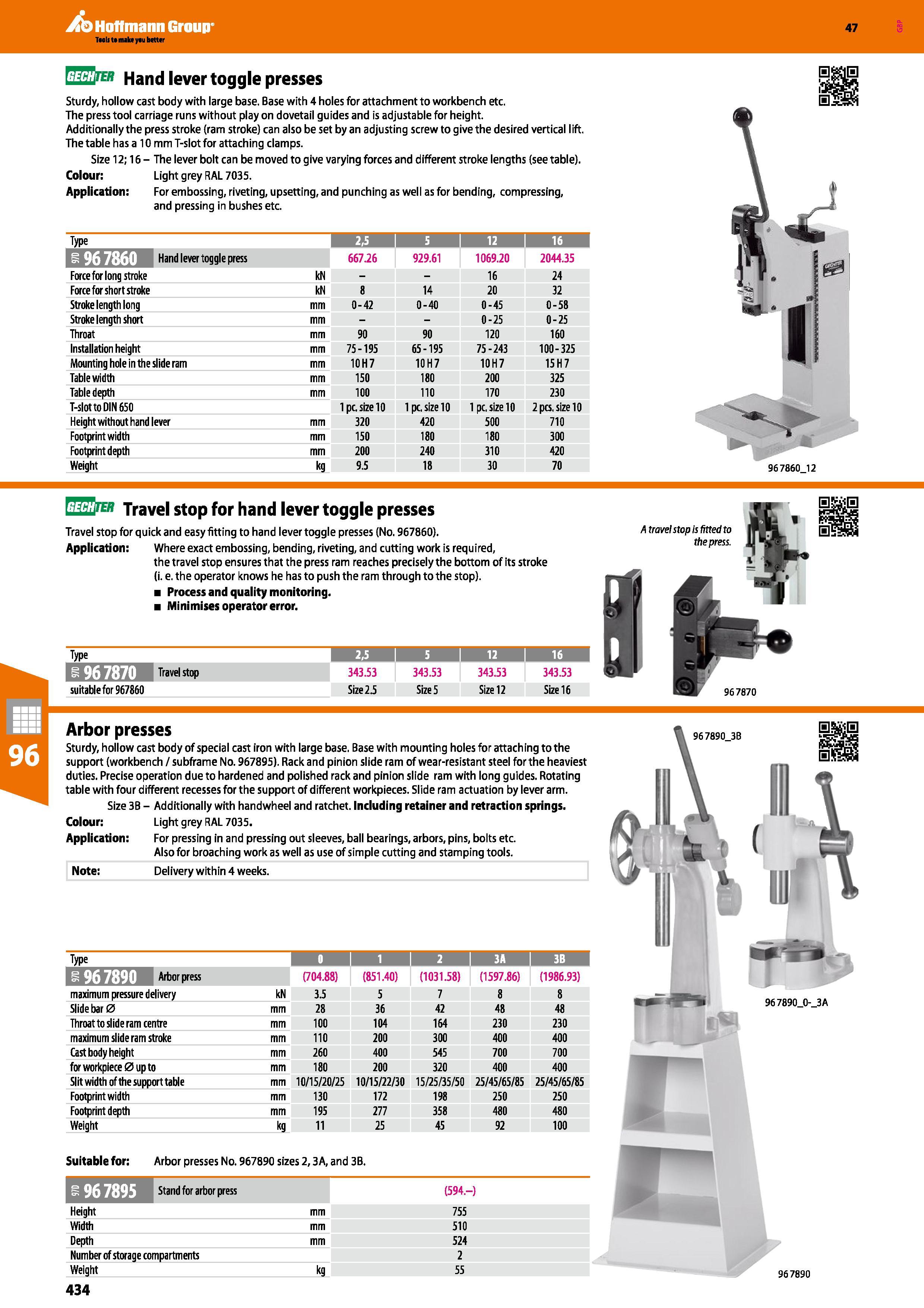

Hoffmann Group 47 EE3 Hand lever toggle presses Sturdy, hollow cast body with large base. Base with 4 holes for attachment to workbench etc. The press tool carriage runs without play on dovetail guides and is adjustable for height. Additionally the press stroke (ram stroke) can also be set by an adjusting screw to give the desired vertical lift. The table has a 10 mm T-slot for attaching clamps. Size 12; 16 - The lever bolt can be moved to give varying forces and different stroke lengths (see table). Colour: Light grey RAL 7035. Application: For embossing, riveting, upsetting, and punching as well as for bending, compressing, and pressing in bushes etc. Type 1 2,5 I 5 1 12 I 16 1 Hand lever toggle press 667.26 929.61 1069.20 2044.35 Force for long stroke kN - - 16 24 Force for short stroke kN 8 14 20 32 Stroke length long mm 0-42 0-40 0-45 0-58 Stroke length short mm - - 0-25 0-25 Throat mm 90 90 120 160 Installation height mm 75-195 65-195 75-243 100-325 Mounting hole in the slide ram mm 10H7 10H7 10H7 15 H 7 Table width mm 150 180 200 325 Table depth mm 100 110 170 230 T-slot to DIN 650 Ipc size 10 1 pc. size 10 1 pc. size 10 2 pcs. size 10 Height without hand lever mm 320 420 500 710 Footprint width mm 150 180 180 300 Footprint depth mm 200 240 310 420 Weight kg 9.5 18 30 70 LiiiJ Travel stop for hand lever toggle presses Travel stop for quick and easy fitting to hand lever toggle presses (No. 967860). Application: Where exact embossing, bending, riveting, and cutting work is required, the travel stop ensures that the press ram reaches precisely the bottom of its stroke (i. e. the operator knows he has to push the ram through to the stop). Process and quality monitoring. Minimises operator error. Type iKlB9 I 5 I 12 I 16 1 I 96 7870 IBB 343.53 343.53 343.53 343.53 suitable for 967860 Size 2 j Size 5 Size 12 Size 16 A travel stop is fitted to the press. Arbor presses Sturdy, hollow cast body of special cast iron with large base. Base with mounting holes for attaching to the support (workbench / subframe No. 967895). Rack and pinion slide ram of wear-resistant steel for the heaviest duties. Precise operation due to hardened and polished rack and pinion slide ram with long guides. Rotating table with four different recesses for the support of different workpieces. Slide ram actuation by lever arm. Size 3B - Additionally with handwheel and ratchet. Including retainer and retraction springs. Colour: Light grey RAL 7035. Application: For pressing in and pressing out sleeves, ball bearings, arbors, pins, bolts etc. Also for broaching work as well as use of simple cutting and stamping tools. Note: Delivery within 4 weeks. Type 0 I 1 I 2 I 3A I 3B I 96 7890 EH (704.88) (851.40) (1031.58) (1597.86) (1986.93) maximum pressure delivery kN 3.5 5 7 8 8 Slide bar 0 mm 28 36 42 48 48 Throat to slide ram centre mm 100 104 164 230 230 maximum slide ram stroke mm 110 200 300 400 400 Cast body height mm 260 400 545 700 700 for workpiece 0 up to mm 180 200 320 400 400 Slit width of the support table mm 10/15/20/25 10/15/22/30 15/25/35/50 25/45/65/85 25/45/65/85 Footprint width mm 130 172 198 250 250 Footprint depth mm 195 277 358 480 480 Weight kg 11 25 45 92 100 Suitable for: Arbor presses No. 967890 sizes 2,3A, and 3B. 967895 Stand for arbor press Height Width Depth Number of storage compartments Weight 434 mm (594.-) 755 510 524 2 55 967890 96 7860J 2
