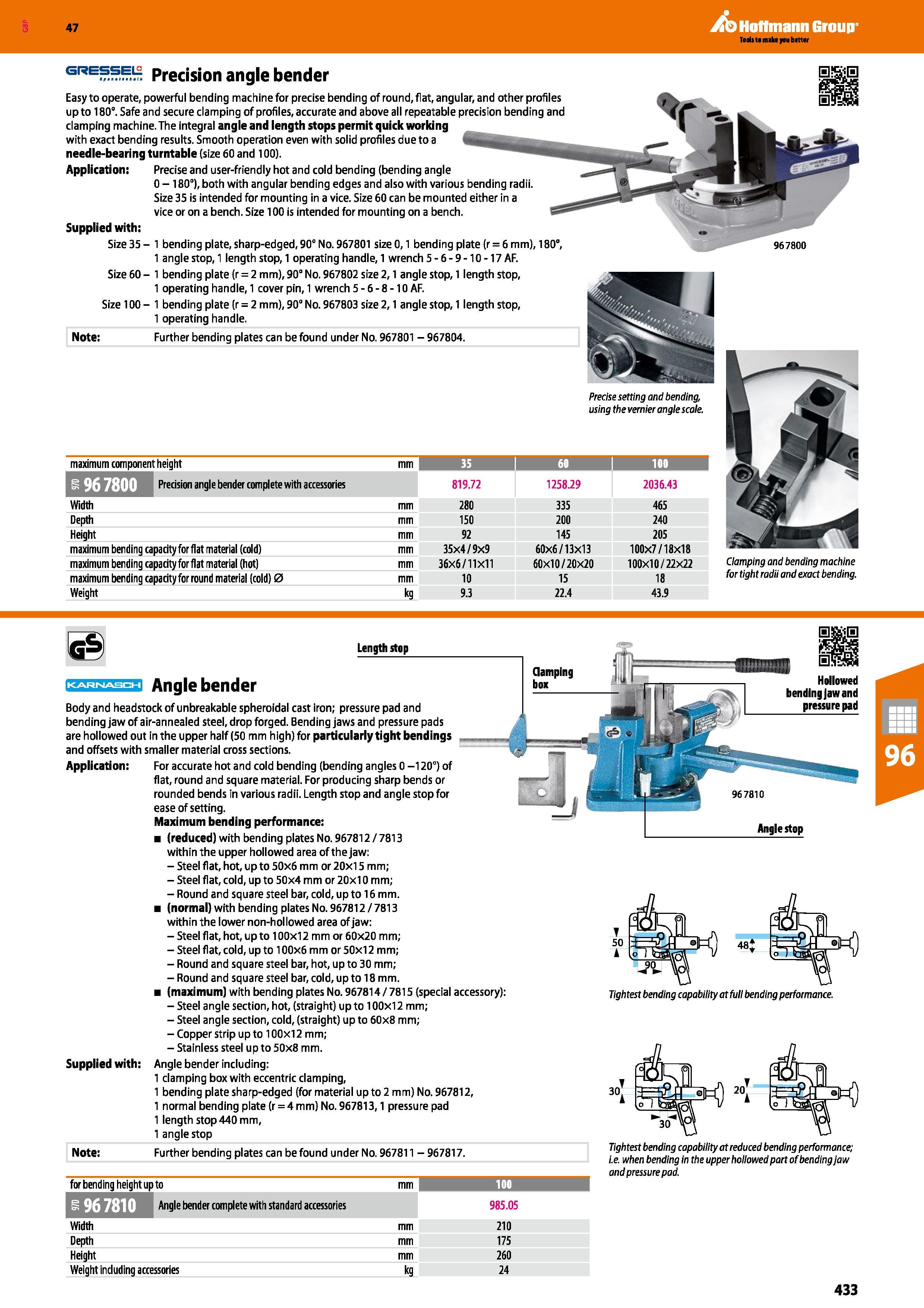

Hoffmann Group 47 Precision angle bender Easy to operate, powerful bending machine for precise bending of round, flat, angular, and other profiles up to 180°. Safe and secure clamping of profiles, accurate and above all repeatable precision bending and clamping machine. The integral angle and length stops permit quick working with exact bending results. Smooth operation even with solid profiles due to a needle-bearing turntable (size 60 and 100). Application: Precise and user-friendly hot and cold bending (bending angle 0 -180°), both with angular bending edges and also with various bending radii Size 35 is intended for mounting in a vice. Size 60 can be mounted either in a vice or on a bench. Size 100 is intended for mounting on a bench. Supplied with: Size 35 - 1 bending plate, sharp-edged, 90° No. 967801 size 0,1 bending plate (r = 6 mm), 180°, 1 angle stop, 1 length stop, 1 operating handle, 1 wrench 5-6-9-10-17 AF. Size 60 - 1 bending plate (r = 2 mm), 90° No. 967802 size 2,1 angle stop, 1 length stop, 1 operating handle, 1 cover pin, 1 wrench 5 - 6 - 8 -10 AF. Size 100-1 bending plate (r = 2 mm), 90° No. 967803 size 2,1 angle stop, 1 length stop, 1 operating handle. Note: Further bending plates can be found under No. 967801 - 967804. 967800 Precise setting and bending, using thevernier angle scale. maximum component height mm 35 i 60 mo 1 Precision angle bender complete with accessories 819.72 1258.29 2036.43 Width mm 280 335 465 Depth mm 150 200 240 Height mm 92 145 205 maximum bending capacity for flat material (cold) mm 35x4/9x9 60x6/13x13 100x7/18x18 maximum bending capacity for flat material (hot) mm 36x6/11x11 60x10/20x20 100x10/22x22 maximum bending capacity for round material (cold) 0 mm 10 15 18 Weight kg 9.3 22.4 43.9 Clamping and bending machine for tigh t radii and exact bending. Length step Angle bender Body and headstock of unbreakable spheroidal cast iron; pressure pad and bending jaw of air-annealed steel, drop forged. Bending jaws and pressure pads are hollowed out in the upper half (50 mm high) for particularly tight bendings and offsets with smaller material cross sections. Application: For accurate hot and cold bending (bending angles 0 -120°) of flat, round and square material. For producing sharp bends or rounded bends in various radii. Length stop and angle stop for ease of setting. Maximum bending performance: (reduced) with bending plates No. 967812 / 7813 within the upper hollowed area of the jaw: - Steel flat, hot, up to 50x6 mm or 20x15 mm; - Steel flat, cold, up to 50x4 mm or 20x10 mm; - Round and square steel bar, cold, up to 16 mm. (normal) with bending plates No. 967812 / 7813 within the lower non-hol lowed area of jaw: - Steel flat, hot, up to 100x12 mm or 60x20 mm; - Steel flat, cold, up to 100x6 mm or 50x12 mm; - Round and square steel bar, hot, up to 30 mm; - Round and square steel bar, cold, up to 18 mm. (maximum) with bending plates No. 967814/7815 (special accessory): - Steel angle section, hot, (straight) up to 100x12 mm; - Steel angle section, cold, (straight) up to 60x8 mm; -Copper strip up to 100x12 mm; - Stainless steel up to 50x8 mm. Supplied with: Angle bender including: 1 clamping box with eccentric clamping, 1 bending plate sharp-edged (for material up to 2 mm) No. 967812, 1 normal bending plate (r = 4 mm) No. 967813,1 pressure pad 1 length stop 440 mm, 1 angle stop Hollowed bending jaw and pressure pad 3 Tightest bending capability at full bending performance. Note: Further bending plates can be found under No. 967811 -967817. for bending height up to mm 100 j Angle bender complete with standard accessories 985.05 Width mm 210 Depth mm 175 Height mm 260 Weight including accessories kg 24 3
