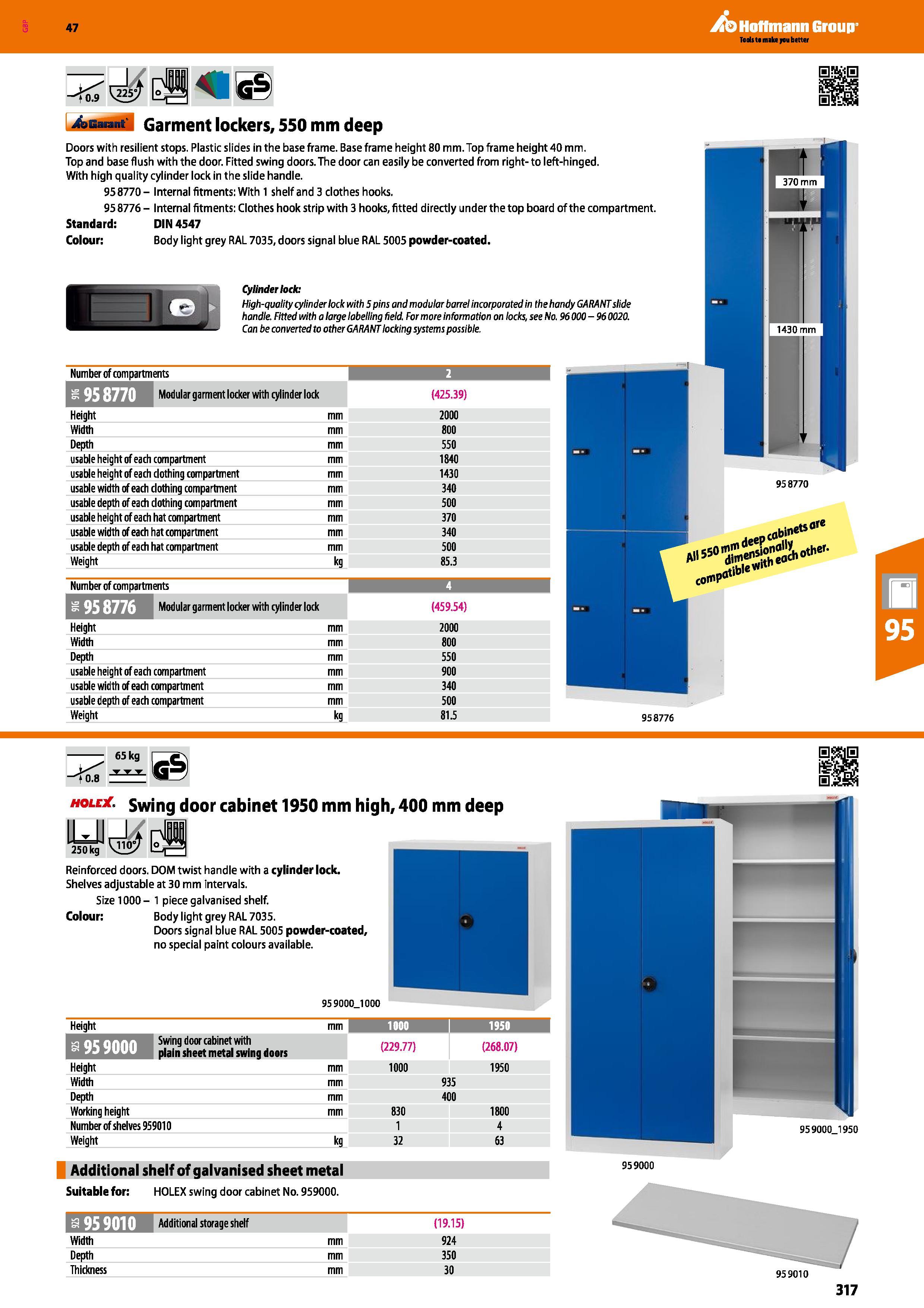

317 Каталог HOFFMANN GROUP 2016 Производственная мебель для работы и хранения Вер. 47 Стр.317

Каталог HOFFMANN GROUP 2016 Производственная мебель Стр. 317 0317 ENG Lab2u

Hoffmann Group 47 Garment lockers, 550 mm deep Doors with resilient stops. Plastic slides in the base frame. Base frame height 80 mm. Top frame height 40 mm. Top and base flush with the door. Fitted swing doors. The door can easily be converted from right- to left-hinged. With high quality cylinder lock in the slide handle. 958770- Internal fitments: With 1 shelf and 3 clothes hooks. 95 8776 - Internal fitments: Clothes hook strip with 3 hooks, fitted directly under the top board of the compartment. Standard: DIN 4547 Colour: Body light grey RAL 7035, doors signal blue RAL 5005 powder-coated. Cylinder lode High-quality cylinder lock with 5 pins and modular barrel incorporated in the handy GARANT slide handle. Fitted with a large labelling field For more information on locks, see No. 96 000 - 96 0020. Can be converted to other GARANT locking systems possible. Number of compartments fALTlfJ 7lH Modular garment locker with cylinder lock (425.39) Height mm 2000 Width mm 800 Depth mm 550 usable height of each compartment mm 1840 usable height of each clothing compartment mm 1430 usable width of each clothing compartment mm 340 usable depth of each clothing compartment mm 500 usable height of each hat compartment mm 370 usable width of each hat compartment mm 340 usable depth of each hat compartment mm 500 Weight kg 85.3 Number of compartments eop'r HT Modular garment locker with cylinder lock (459.54) 1 y Height mm 2000 Width mm 800 Depth mm 550 usable height of each compartment mm 900 usable width of each compartment mm 340 usable depth of each compartment mm 500 Weight kg 81.5 958770 cobin 0' -ntib e 958776 Swing door cabinet 1950 mm high, 400 mm deep w r 250 kg Reinforced doors. DOM twist handle with a cylinder lock. Shelves adjustable at 30 mm intervals. Size 1000- 1 piece galvanised shelf. Colour: Body light grey RAL 7035. Doors signal blue RAL 5005 powder-coated, no special paint colours available. 95 9000_1000 Height mm 1000 I 1950 HPfWfJfWl Swing door cabinet with plain sheet metal swing doors (229.77) (268.07) Height mm 1000 1950 Width mm 935 Depth mm 400 Working height mm 830 1800 Number of shelves 959010 Weight 1 32 4 63 Additional shelf of galvanised sheet metal Suitable for: HOLEX swing door cabinet No. 959000. 95 9010 1 Width Depth Thickness Additional storage shelf mm (19.15) 924 350 30 959000_1950 959000 317
