316 Каталог HOFFMANN GROUP 2016 Производственная мебель для работы и хранения Вер. 47 Стр.316

Каталог HOFFMANN GROUP 2016 Производственная мебель Стр. 316 0316 ENG Lab2u

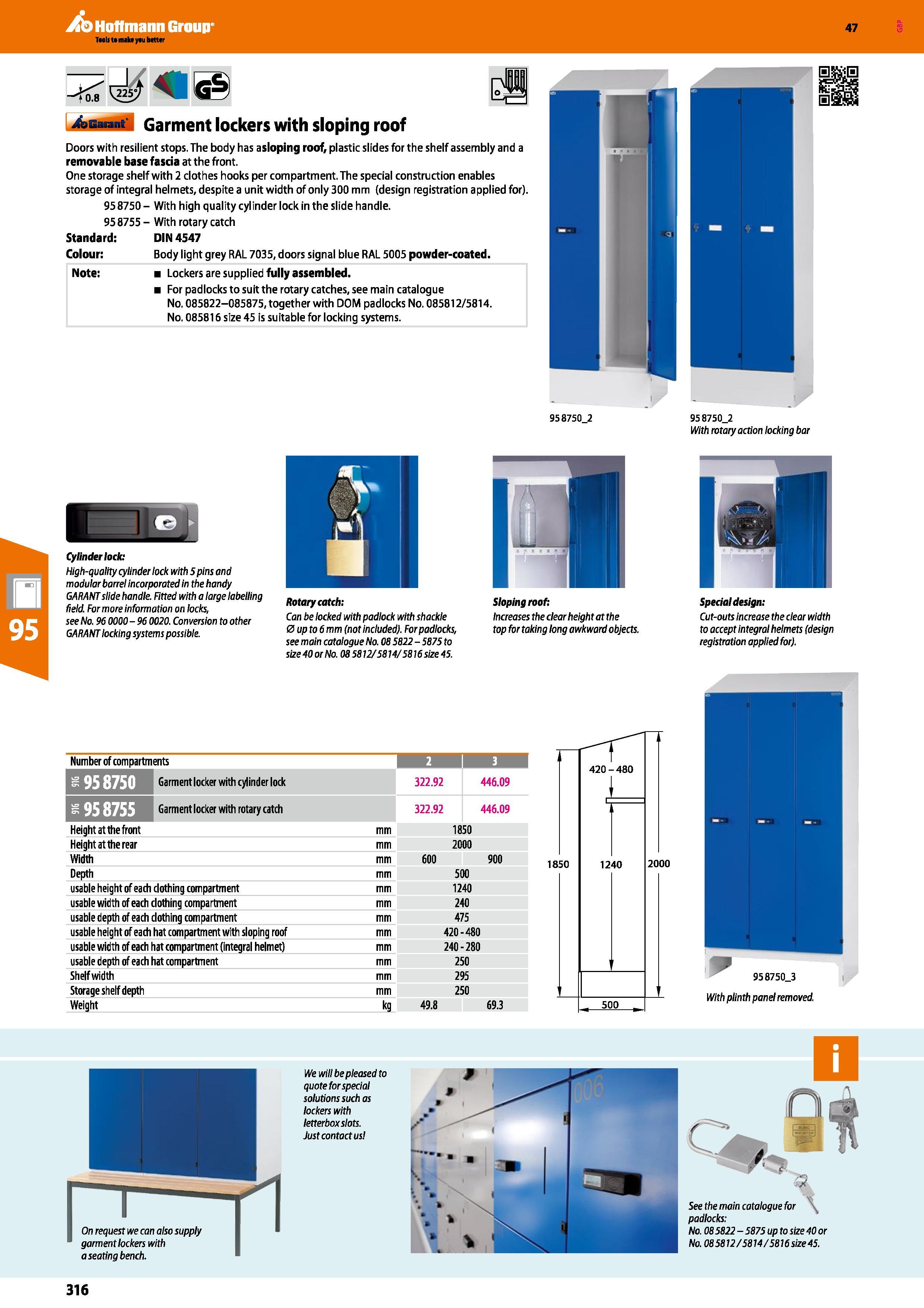

Hoffmann Group 47 <0.8 Auarant Garment lockers with sloping roof Doors with resilient stops. The body has asloping roof, plastic slides for the shelf assembly and a removable base fascia at the front. One storage shelf with 2 clothes hooks per compartment. The special construction enables storage of integral helmets, despite a unit width of only 300 mm (design registration applied for). 95 8750 - With high quality cylinder lock in the slide handle. 958755 - With rotary catch Standard: DIN 4547 Colour: Body light grey RAL 7035, doors signal blue RAL 5005 powder-coated. Note: Lockers are supplied fully assembled. For padlocks to suit the rotary catches, see main catalogue No. 085822-085875, together with DOM padlocks No. 085812/5814. No. 085816 size 45 is suitable for locking systems. 958750_2 95 8750_2 With rotary action locking bar Cylinder lock; High-quality cylinder lock with 5 pins and modular barrel incorporated in the handy GARANT slide handle. Fitted with a large labelling field For more information on locks, see No. 96 0000 - 96 0020. Conversion to other GARANT locking systems possible. Rotary catch: Can be locked with padlock with shackle 0 up to 6 mm (not included). For padlocks, see main catalogue No. OS 5B22- 5875 to size 40 or No. 065812/5814/5816 size 45. Sloping roof: Increases the clear height at the top for taking long awkward objects. Number of compartments fit-' Kl' frVB Garment locker with cylinder lock 322.92 446.09 EL'L4:ylvW Garment locker with rotary catch 322.92 446.09 Height at the front mm 1850 Height at the rear mm 2000 Width mm 600 900 Depth mm 500 usable height of each clothing compartment mm 1240 usable width of each clothing compartment mm 240 usable depth of each clothing compartment mm 475 usable height of each hat compartment with sloping roof mm 420 - 480 usable width of each hat compartment (integral helmet) mm 240-280 usable depth of each hat compartment mm 250 Shelf width mm 295 Storage shelf depth mm 250 Weight kg 49.8 69.3 Special design: Cut-outs increase the clear width to accept integral helmets (design registration applied for). 958750_3 With plinth panel removed. On request we can also supply garment lockers with a seating bench. We will be pleased to quote for special solutions such as lockers with letterbox slots. Just contact us " '1M m See the main catalogue for \ padlocks: No. 08 5822 - 5875 up to size 40 or No. 085812/5814/5816size45. 316
