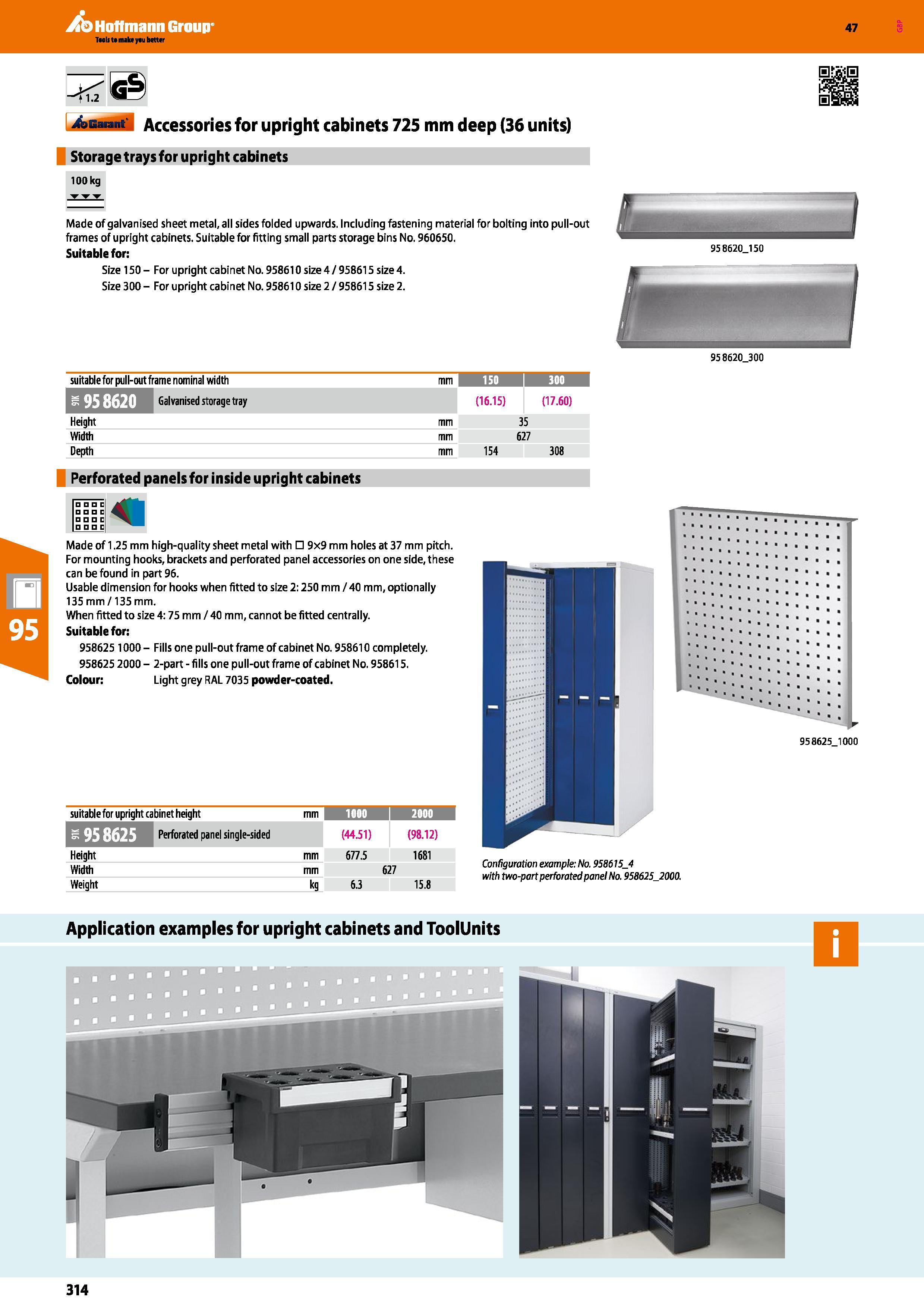

Hoffmann Group 47 <1.2 Garant Accessories for upright cabinets 725 mm deep (36 units) Storage trays for upright cabinets 100 kg Made of galvanised sheet metal, all sides folded upwards. Including fastening material for bolting into pull-out frames of upright cabinets. Suitable for fitting small parts storage bins No. 960650. Suitable for: Size 150 - For upright cabinet No. 958610 size 4 / 958615 size 4. Size 300 - For upright cabinet No. 958610 size 2 / 958615 size 2. 95 8620_300 suitable for pull-out frame nominal width mm 150 i 300 i Galvanised storage tray (16.15) (17.60) Height mm 35 Width mm 627 Depth mm 154 308 Perforated panels for inside upright cabinets E E E E Made of 1.25 mm high-quality sheet metal with 9x9 mm holes at 37 mm pitch. For mounting hooks, brackets and perforated panel accessories on one side, these can be found in part 96. Usable dimension for hooks when fitted to size 2:250 mm/40 mm, optionally 135 mm/ 135 mm. When fitted to size 4:75 mm / 40 mm, cannot be fitted centrally. Suitable for: 958625 1000- Fills one pull-out frame of cabinet No. 958610 completely. 958625 2000 - 2-part - fills one pull-out frame of cabinet No. 958615. Colour: Light grey RAL 7035 powder-coated. suitable for upright cabinet height mm 1000 i 2000 j Perforated panel single-sided (44.51) (98.12) Height mm 677.5 1681 Width mm 627 Weight kg 6.3 15.8 Configuration example: No. 958615_4 with two-part perforated panel No. 958625_2000. Application examples for upright cabinets and ToolUnits 314
