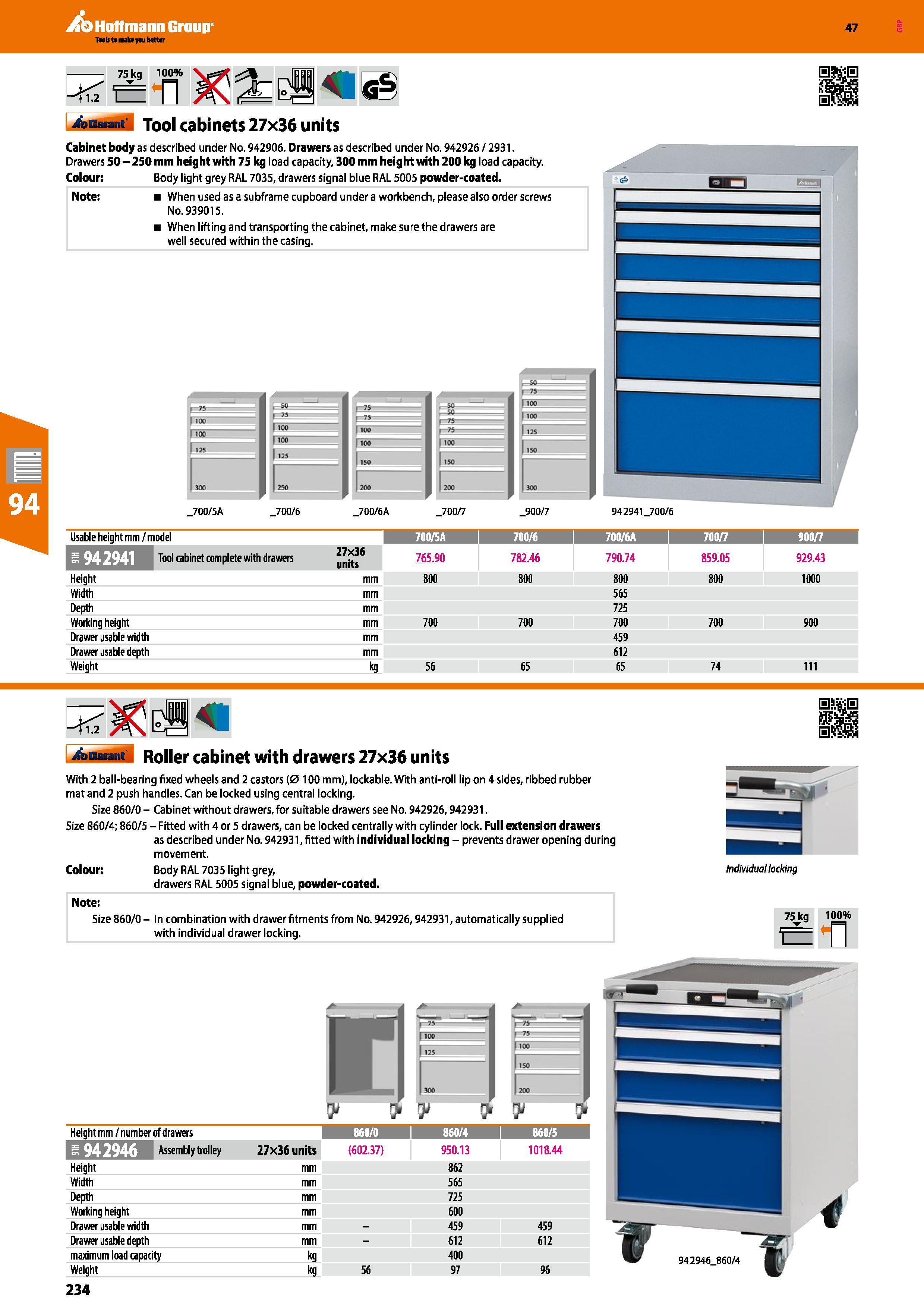

234 Каталог HOFFMANN GROUP 2016 Производственная мебель для работы и хранения Вер. 47 Стр.234

Каталог HOFFMANN GROUP 2016 Производственная мебель Стр. 234 0234 ENG Lab2u

Hoffmann Group 47 75kg <1.2 L 100% n bGaiant Tool cabinets 27x36 units Cabinet body as described under No. 942906. Drawers as described under No. 942926 / 2931. Drawers 50 - 250 mm height with 75 kg load capacity, 300 mm height with 200 kg load capacity. Colour: Body light grey RAL 7035, drawers signal blue RAL 5005 powder-coated. Note: When used as a subframe cupboard under a workbench, please also order screws No. 939015. When lifting and transporting the cabinet, make sure the drawers are well secured within the casing. _700/6A 942941_700/6 Usable height mm /model 700/5A 700/6 700/6A 700/7 I 900/7 i Tool cabinet complete with drawers 27x36 units 765.90 782.46 790.74 859.05 929.43 Height mm 800 800 800 800 1000 Width mm 565 Depth mm 725 Working height mm 700 700 700 700 900 Drawer usable width mm 459 Drawer usable depth mm 612 Weight kg 56 65 65 74 111 bBaiant Roller cabinet with drawers 27x36 units With 2 ball-bearing fixed wheels and 2 castors (0 100 mm), lockable. With anti-roll lip on 4 sides, ribbed rubber mat and 2 push handles. Can be locked using central locking. Size 860/0 - Cabinet without drawers, for suitable drawers see No. 942926,942931. Size 860/4; 860/5 - Fitted with 4 or 5 drawers, can be locked centrally with cylinder lock. Full extension drawers as described under No. 942931, fitted with individual locking - prevents drawer opening during movement. Colour: Body RAL 7035 light grey, drawers RAL 5005 signal blue, powder-coated. Note: Size 860/0 - In combination with drawer fitments from No. 942926,942931, automatically supplied with individual drawer locking. 75 kg 100% i± n I r75- Height mm / number of drawers 860/0 860/4 I 860/5 I HL'EUZ'f rfl Assembly trolley 27x36 units (602.37) 950.13 1018.44 Height mm 862 Width mm 565 Depth mm 725 Working height mm 600 Drawer usable width mm - 459 459 Drawer usable depth mm - 612 612 maximum load capacity kg 400 Weight kg 56 97 96 234 Individual locking
