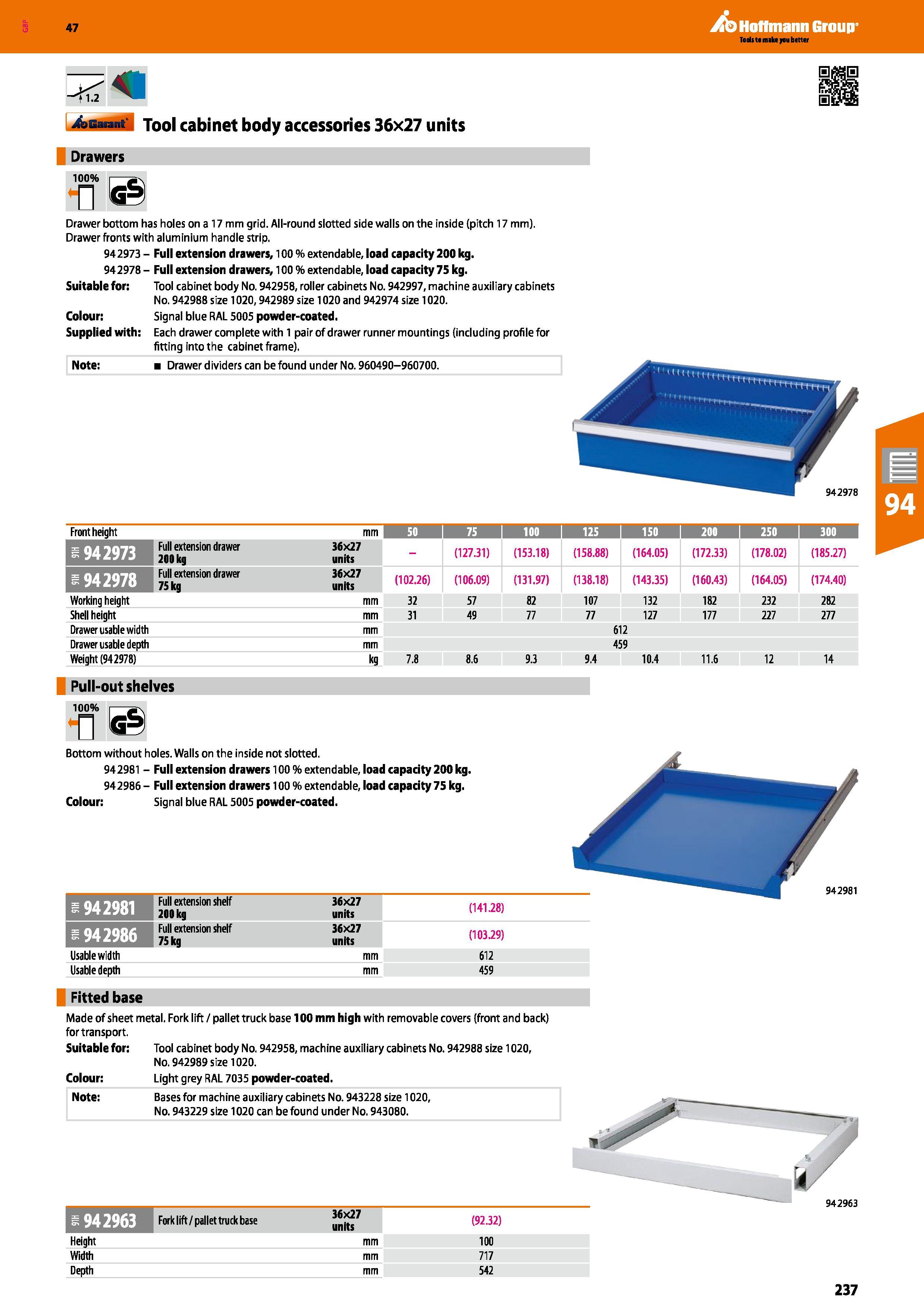

237 Каталог HOFFMANN GROUP 2016 Производственная мебель для работы и хранения Вер. 47 Стр.237

Каталог HOFFMANN GROUP 2016 Производственная мебель Стр. 237 0237 ENG Lab2u

-T1.2 bGaiant Tool cabinet body accessories 36x27 units Drawers 100% Drawer bottom has holes on a 17 mm grid. All-round slotted side walls on the inside (pitch 17 mm). Drawer fronts with aluminium handle strip. 942973 - Full extension drawers, 100 % extendable, load capacity 200 kg. 942978 - Full extension drawers, 100 % extendable, load capacity 75 kg. Suitable for: Tool cabinet body No. 942958, roller cabinets No. 942997, machine auxiliary cabinets No. 942988 size 1020,942989 size 1020 and 942974 size 1020. Colour: Signal blue RAL 5005 powder-coated. Supplied with: Each drawer complete with 1 pair of drawer runner mountings (including profile for fitting into the cabinet frame). Note: Drawer dividers can be found under No. 960490-960700. Front height mm 50 1 75 i 100 1 125 1 150 i 200 i 250 1 300 1 i 942973 Full extension drawer 200 kg 36x27 units - (127.31) (153.18) (158.88) (164.05) (172.33) (178.02) (185.27) 1942978 Full extension drawer 75 kg 36x27 units (102.26) (106.09) (131.97) (138.18) (143.35) (160.43) (164.05) (174.40) Working height mm 32 57 82 107 132 182 232 282 Shell height mm 31 49 77 77 127 177 227 277 Drawer usable width mm 612 Drawer usable depth mm 459 Weight (942978) kg 7.8 8.6 9.3 9.4 10.4 11.6 12 14 Pull-out shelves 100% I n Bottom without holes. Walls on the inside not slotted. 942981 - Full extension drawers 100% extendable, load capacity 200 kg. 942986 - Full extension drawers 100 % extendable, load capacity 75 kg. Colour: Signal blue RAL 5005 powder-coated. 942981 942986 Usable width Usable depth Full extension shelf 200 kg Full extension shelf 75 kg 36x27 units 36x27 units mm (141.28) (103.29) 612 459 Fitted base Made of sheet metal. Fork lift / pallet truck base 100 mm high with removable covers (front and back) for transport. Tool cabinet body No. 942958, machine auxiliary cabinets No. 942988 size 1020, No. 942989 Size 1020. Light grey RAL 7035 powder-coated. Bases for machine auxiliary cabinets No. 943228 size 1020, No. 943229 size 1020 can be found under No. 943080. Suitable for: Colour: Note: 942963 Fork lift /pallet truck base Height Width Depth 36x27 units mm (92.32) 100 717 542 942978 942981 237
