233 Каталог HOFFMANN GROUP 2016 Производственная мебель для работы и хранения Вер. 47 Стр.233

Каталог HOFFMANN GROUP 2016 Производственная мебель Стр. 233 0233 ENG Lab2u

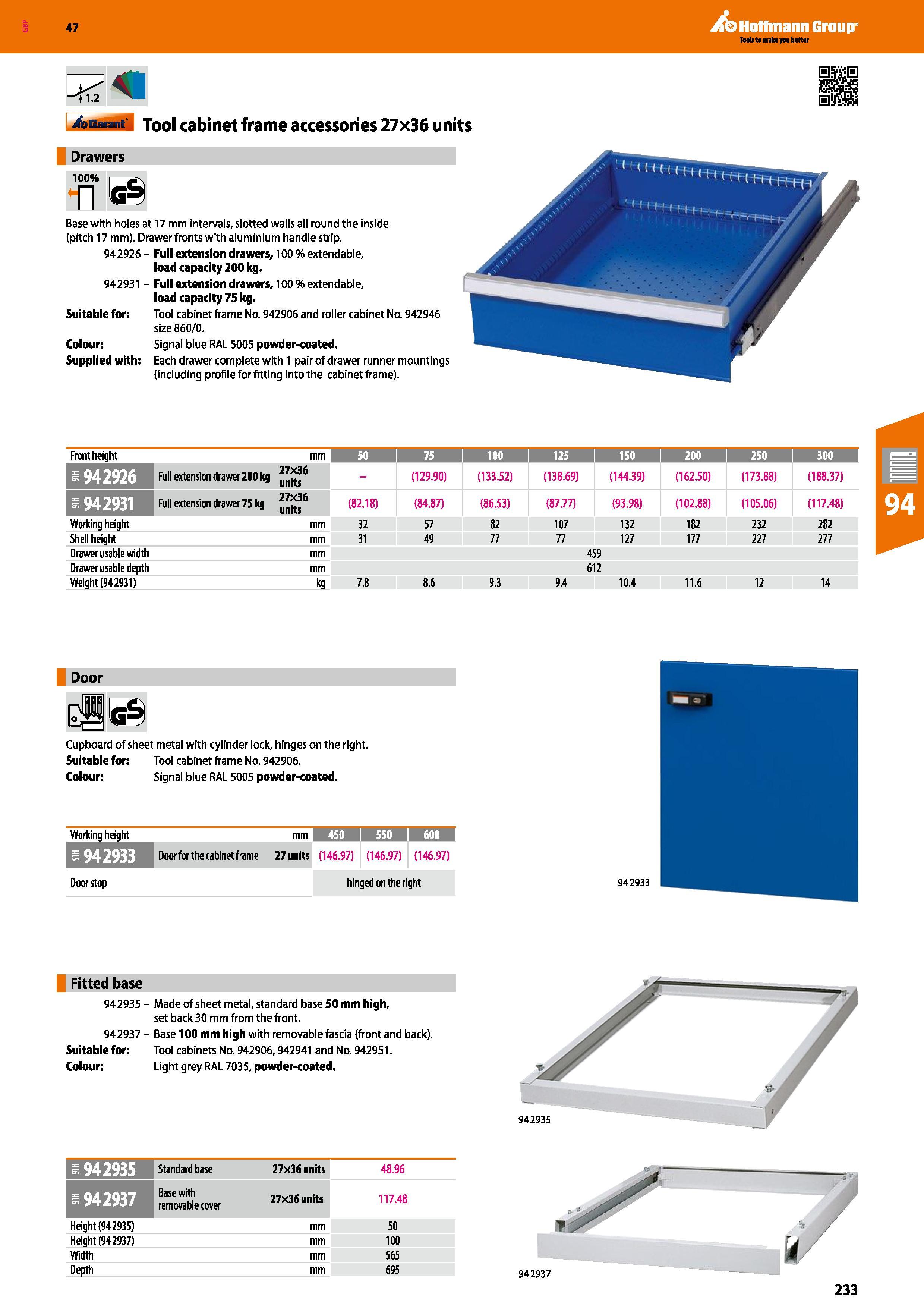

Hoffmann Group 47 <1.2 bGaiant Tool cabinet frame accessories 27x36 units Drawers Base with holes at 17 mm intervals, slotted walls all round the inside (pitch 17 mm). Drawer fronts with aluminium handle strip. 942926 - Full extension drawers, 100 % extendable, load capacity 200 kg. 942931 - Full extension drawers, 100%extendable, load capacity 75 kg. Suitable for: Tool cabinet frame No. 942906 and roller cabinet No. 942946 size 860/0. Colour: Signal blue RAL 5005 powder-coated. Supplied with: Each drawer complete with 1 pair of drawer runner mountings (including profile for fitting into the cabinet frame). Front height mm 50 I 75 i 100 I 125 1 150 I 200 I 250 300 f Full extension drawer 200 kg 27x36 units - (129.90) (133.52) (138.69) (144.39) (162.50) (173.88) (188.37) Full extension drawer 75 kg 27x36 units (82.18) (84.87) (86.53) (87.77) (93.98) (102.88) (105.06) (117.48) Working height mm 32 57 82 107 132 182 232 282 Shell height mm 31 49 77 77 127 177 227 277 Drawer usable width mm 459 Drawer usable depth mm 612 Weight (942931) kg 7.8 8.6 9.3 9.4 10.4 11.6 12 14 Door Cupboard of sheet metal with cylinder lock, hinges on the right. Suitable for: Tool cabinet frame No. 942906. Colour: Signal blue RAL 5005 powder-coated. Working height mm 450 1 550 1 600 I i 942933 Door for the cabinet frame 27 units (146.97) (146.97) (146.97) Doorstop hinged on the right 942933 Fitted base 942935 - Made of sheet metal, standard base 50 mm high, set back 30 mm from the front. 942937 - Base 100 mm high with removable fascia (front and back). Suitable for: Tool cabinets No. 942906,942941 and No. 942951. Colour: Light grey RAL 7035, powder-coated. -942935 Standard base 27x36 units 48.96 Base with removable cover 27x36 units 117.48 Height (94 2935) mm 50 Height (94 2937) mm 100 Width mm 565 Depth mm 695 233 942935
