215 Каталог HOFFMANN GROUP 2016 Производственная мебель для работы и хранения Вер. 47 Стр.215

Каталог HOFFMANN GROUP 2016 Производственная мебель Стр. 215 0215 ENG Lab2u

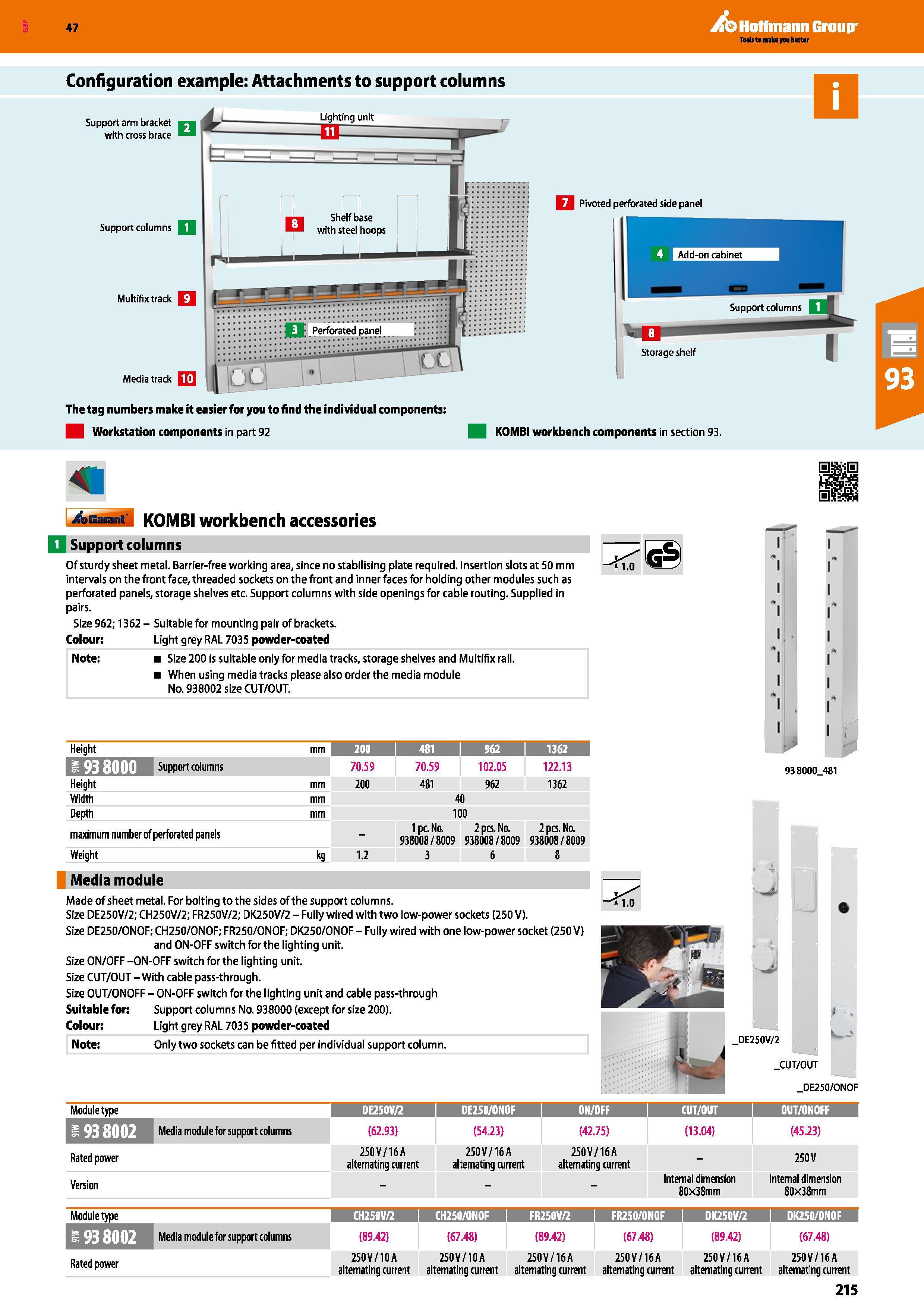

Hoffmann Group 47 Support columns Storage shelf KOMBI workbench components in section 93. Configuration example: Attachments to support columns Support arm bracket kv with cross brace Support columns Qj El Pivoted perforated side panel Multifix track Media track m The tag numbers make it easier for you to find the individual components: Workstation components in part 92 XbGarant KOMBI workbench accessories Q Support columns Of sturdy sheet metal. Barrier-free working area, since no stabilising plate required. Insertion slots at 50 mm intervals on the front face, threaded sockets on the front and inner faces for holding other modules such as perforated panels, storage shelves etc. Support columns with side openings for cable routing. Supplied in pairs. Size 962; 1362 - Suitable for mounting pair of brackets. Colour: Light grey RAL 7035 powder-coated Note: Size 200 is suitable only for media tracks, storage shelves and Multifix rail. When using media tracks please also order the media module No. 938002 size CUT/OUT. "t 1.0 Height mm 200 481 I 962 I 1362 11938000 imMMir 70.59 70.59 102.05 122.13 Height mm 200 481 962 1362 Width mm 40 Depth mm 100 maximum number of perforated panels - 1 pc. Na 2 pcs. Na 938008 / 8009 938008 / 8009 2 pcs. Na 938008/8009 Weight kg 1.2 3 6 8 j 93 8000_481 Media module Made of sheet metal. For bolting to the sides of the support columns. Size DE250V/2; CH250V/2; FR250V/2; DK250V/2 - Fully wired with two low-power sockets (250 V). Size DE250/ONOF; CH250/ONOF; FR250/ONOF; DK250/ONOF - Fully wired with one low-power socket (250 V) and ON-OFF switch for the lighting unit. Size ON/OFF -ON-OFF switch for the lighting unit. Size CUT/OUT - With cable pass-through. Size OUT/ONOFF - ON-OFF switch for the lighting unit and cable pass-through Suitable for: Support columns No. 938000 (except for size 200). Colour: Light grey RAL 7035 powder-coated Note: Only two sockets can be fitted per individual support column. i . _DE250V/2 _CUT/OUT _DE25Q/ONOF Module type 11 DE250V/2 DE250/0N0F I 0N/0FF I CUT/OUT I OUT/ONOFF 1 Media module for support columns (62.93) (54.23) (42.75) (13.04) (45.23) Rated power 250V/16A alternating current 250 V/16 A alternating current 250V/16A alternating current - 250V Version - - - Internal dimension 80x38mm Internal dimension 80x38mm Module type CH250V/2 i CH250/ONOF FR250V/2 i FR250/0N0F DK250V/2 DK250/0N0F Media module for support columns (89.42) (67.48) (89.42) (67.48) (89.42) (67.48) Rated power 250 V/10 A alternating current 250V/10A alternating current 250V/16A alternating current 250V/16A alternating current 250V/16A alternating current 250 V/16 A alternating current 215
