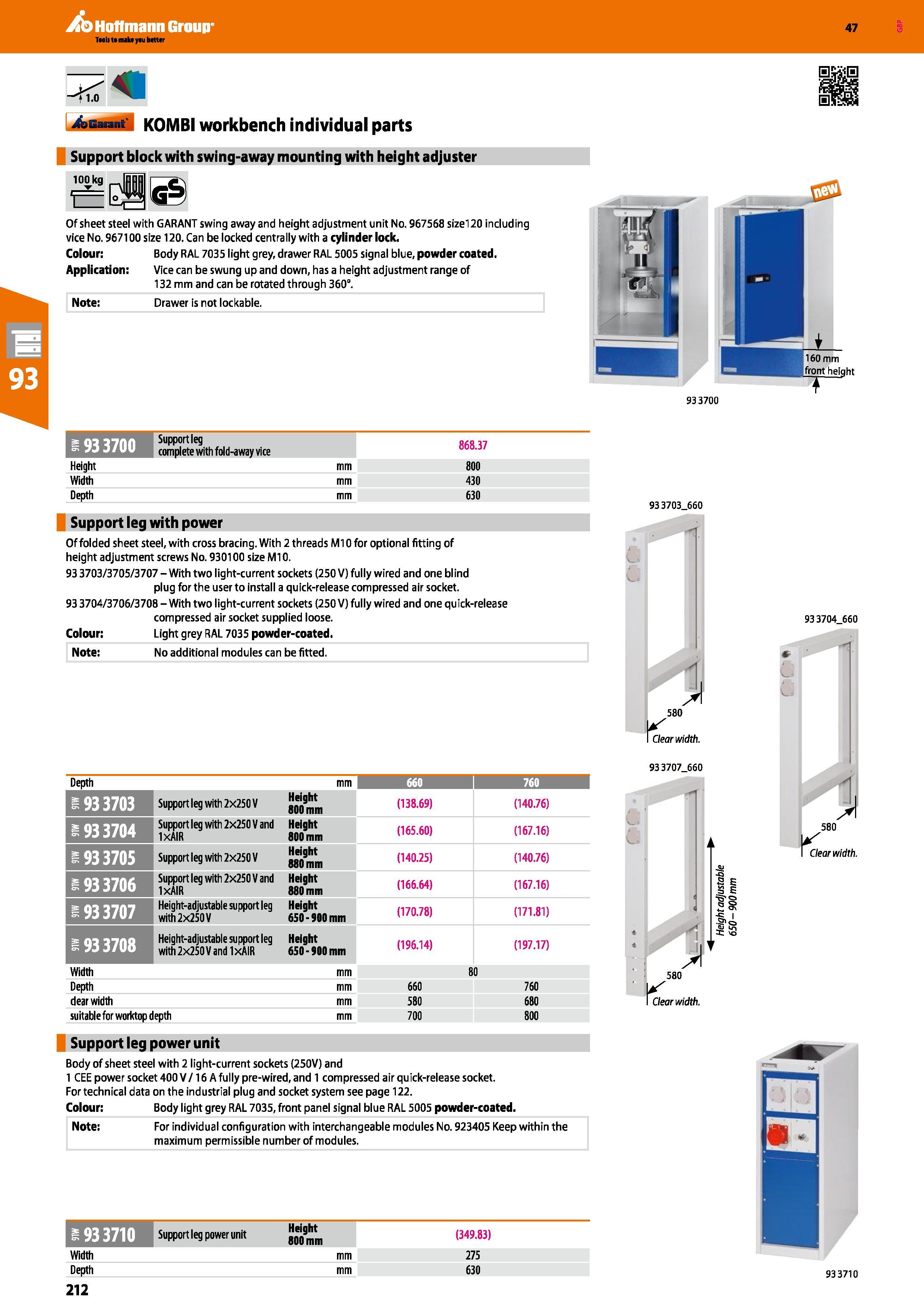

Hoffmann Group 47 <1.0 Auarant KOMBI workbench individual parts Support block with swing-away mounting with height adjuster 100 kg t Of sheet steel with GARANT swing away and height adjustment unit No. 967568 size 20 including vice No. 967100 size 120. Can be locked centrally with a cylinder lock. Colour: Body RAL 7035 light grey, drawer RAL 5005 signal blue, powder coated. Application: Vice can be swung up and down, has a height adjustment range of 132 mm and can be rotated through 360°. Note: Drawer is not lockable. front height 933700 complete with fold-away vice Height Width Depth mm 868.37 800 430 630 93 3703_660 Support leg with power Of folded sheet steel, with cross bracing. With 2 threads Ml 0 for optional fitting of height adjustment screws No. 930100 size M10. 93 3703/3705/3707 - With two light-current sockets (250 V) fully wired and one blind plug for the user to install a quick-release compressed air socket. 93 3704/3706/3708 - With two light-current sockets (250 V) fully wired and one quick-release compressed air socket supplied loose. Colour: Light grey RAL 7035 powder-coated. Note: No additional modules can be fitted. a 580 k I Clear width. 93 3707_660 Depth Support leg with 2x250 V jj 9 (138.69) (140.76) Support leg with 2x250 V and Height IxAIR 800 mm (165.60) (167.16) Support leg with 2x250 V jj 9 (140.25) (140.76) Support leg with 2x250 V and Height IxAIR 880 mm (166.64) (167.16) Height-adjustable support leg Height with 2x250 V 650-900 mm (170.78) (171.81) 193 3708 Height-adjustable support leg Height with 2x250V and IxAIR 650 - 900 mm (196.14) (197.17) Width mm 80 Depth mm 660 760 dear width mm 580 680 suitable for worktop depth mm 700 800 -Si a e 3 E S'O Si 5 s J 580 Clear width. & Support leg power unit 93 3704 660 3 580 K I Clear width. Body of sheet steel with 2 light-current sockets (250V) and 1 CEE power socket 400 V/16 A fully pre-wired, and 1 compressed air quick-release socket. For technical data on the ind ustrial plug and socket system see page 122. Colour: Body light grey RAL 7035, front panel signal blue RAL 5005 powder-coated. Note: For individual configuration with interchangeable modules No. 923405 Keep within the maximum permissible number of modules. Support leg power unit Height 100 mm (349.83) Width mm 275 Depth mm 630 93 3710 212
