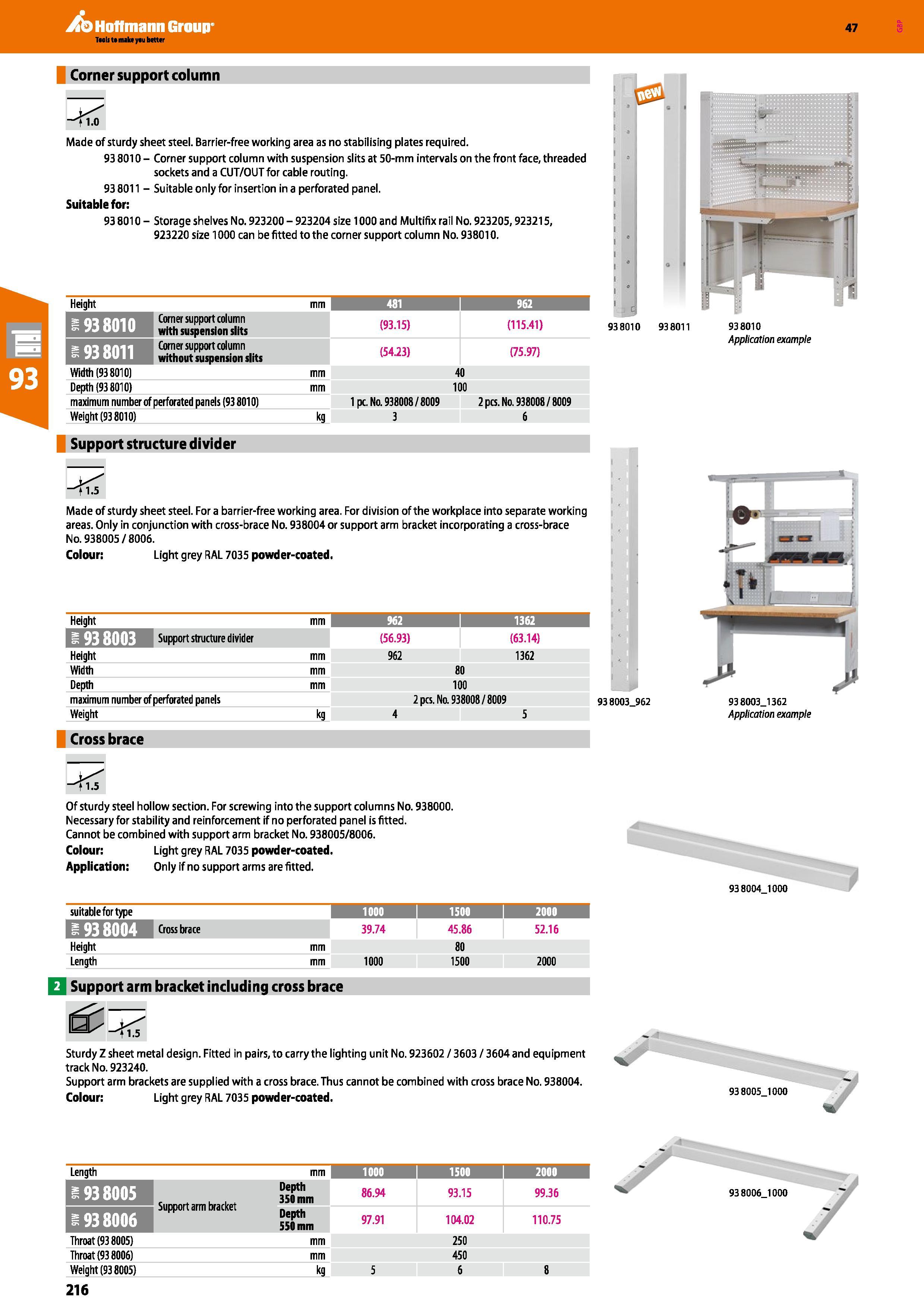

Hoffmann Group 47 Corner support column "t 1-0 Made of sturdy sheet steel. Barrier-free working area as no stabilising plates required. 93 8010 - Corner support column with suspension slits at 50-mm intervals on the front face, threaded sockets and a CUT/OUT for cable routing. 93 8011 - Suitable only for insertion in a perforated panel. Suitable for: 93 8010 - Storage shelves No. 923200 - 923204 size 1000 and Multifix rail No. 923205,923215, 923220 size 1000 can befitted to the corner support column No. 938010. Height mm 481 962 I 1WWWW Corner support column with suspension slits (93.15) (115.41) Corner support column without suspension slits (54.23) (75.97) Width (93 8010) Depth (93 8010) maximum number of perforated panels (938010) Weight (93 8010) mm 40 100 1 pc. No 938008/ 8009 3 2 pcs. No. 938008 / 8009 6 Support structure divider t0L q 938010 938011 938010 Application example Tl.5 Made of sturdy sheet steel. For a barrier-free working area. For division of the workplace into separate working areas. Only in conjunction with cross-brace No. 938004 or support arm bracket incorporating a cross-brace No. 938005/8006. Colour: Light grey RAL 7035 powder-coated. Height mm 962 i 1362 Support structure divider (56.93) (63.14) Height mm 962 1362 Width Depth maximum number of perforated panels Weight mm 100 2 pcs. No. 938008/ 8009 4 5 Cross brace 93 8003_962 /V ‘m m u_ rf J 938003J1362 Application example 11.5 Of sturdy steel hollow section. For screwing into the support columns No. 938000. Necessary for stability and reinforcement if no perforated panel is fitted. Cannot be combined with support arm bracket No. 938005/8006. Colour: Light grey RAL 7035 powder-coated. Application: Only if no support arms are fitted. suitable for type 1000 i 1500 11938004 EKE 39.74 45.86 52.16 Height mm 80 Length mm 1000 1500 2000 Q Support arm bracket including cross brace 'Ti.s Sturdy Z sheet metal design. Fitted in pairs, to carry the lighting unit No. 923602 / 3603 / 3604 and equipment track No. 923240. Support arm brackets are supplied with a cross brace. Thus cannot be combined with cross brace No. 938004. Colour: Light grey RAL 7035 powder-coated. 938004_1000 938005_1000 Length mm 1000 I 1500 2000 1 Depth 350 mm 86.94 93.15 99.36 Support arm bracket Depth 550 mm 97.91 104.02 110.75 Throat (93 8005) mm 250 Throat (93 8006) mm 450 Weight (93 8005) kg 5 6 8 216 938006_1000
