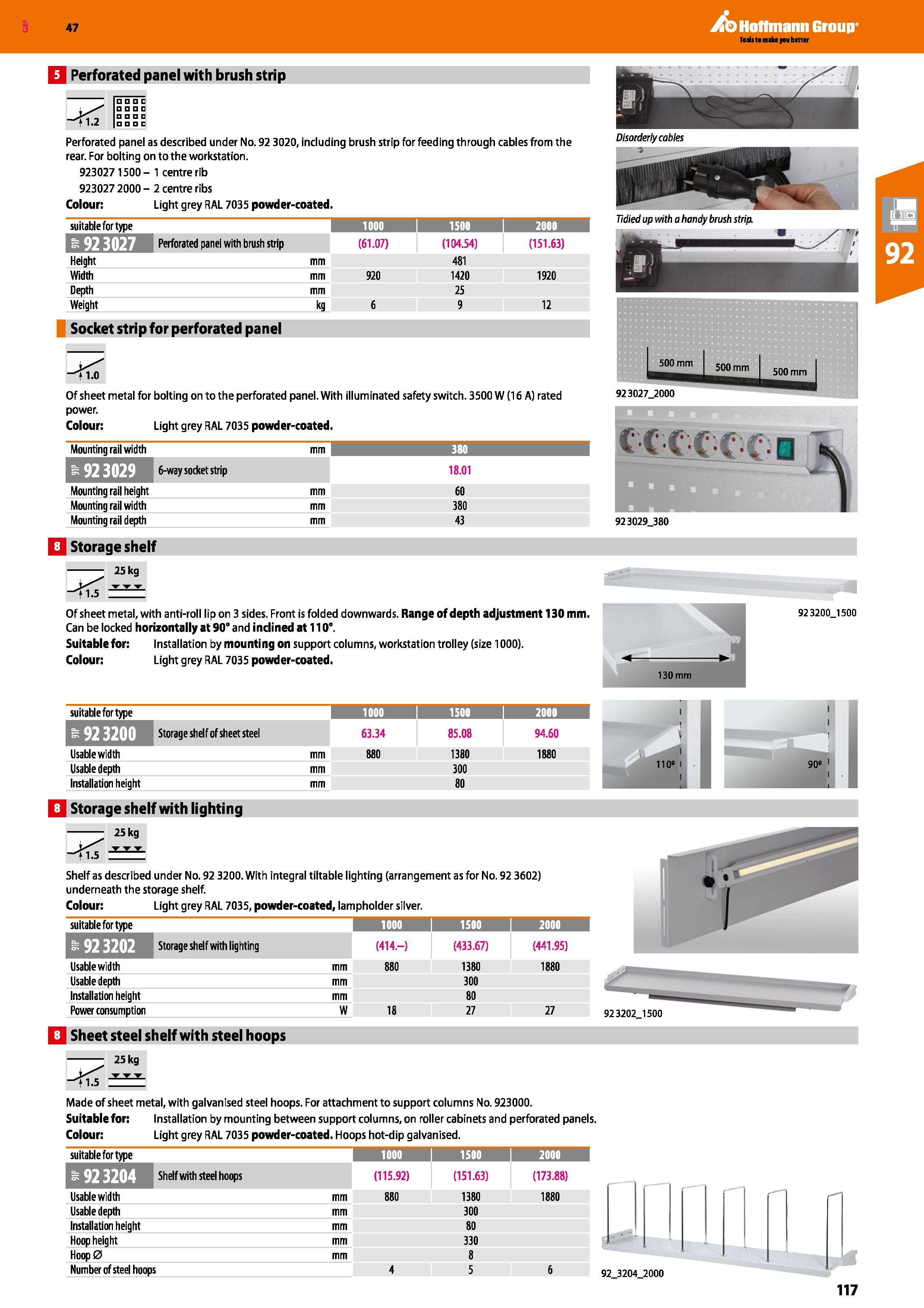

Hoffmann Group 47 Q Perforated panel with brush strip -T1.2 c D D Perforated panel as described under No. 92 3020, Including brush strip for feeding through cables from the rear. For bolting on to the workstation. 9230271500 - 1 centre rib 923027 2000 - 2 centre ribs Colour: Light grey RAL 7035 powder-coated. suitable for type I 1000 1500 S-' VJt 1 Perforated panel with brush strip (61.07) (104.54) (151.63) Height mm 481 Width mm 920 1420 1920 Depth mm 25 Weight kg 6 9 12 Socket strip for perforated panel "t 1-0 Of sheet metal for bolting on to the perforated panel. With illuminated safety switch. 3500 W 16 A) rated power. Colour: Light grey RAL 7035 powder-coated. 500 mm 923027_2000 Mounting rail width mm 380 1 6-way socket strip 18.01 Mounting rail height mm 60 Mounting rail width mm 380 Mounting rail depth mm 43 92 3029_380 Q Storage shelf Tl.5 25 kg Of sheet metal, with anti-roll lip on 3 sides. Front is folded downwards. Range of depth adjustment 130 mm. Can be locked horizontally at 90° and inclined at 110°. Suitable for: Installation by mounting on support columns, workstation trolley (size 1000). Colour: Light grey RAL 7035 powder-coated. 92 3200_1500 130 mm suitable for type HH iooo 1500 nxnBn borage shelf of sheet steel 63.34 85.08 94.60 Usable width mm 880 1380 1880 Usable depth mm 300 Installation height mm 80 ' 110° I 90° Q Storage shelf with lighting Shelf as described under No. 92 3200. With integral tiltable lighting (arrangement as for No. 92 3602) underneath the storage shelf. Colour: Light grey RAL 7035, powder-coated, lampholder silver. suitable for type 1000 i 1500 2000 1 Storage shelf with lighting (414.-) (433.67) (441.95) Usable width mm 880 1380 1880 Usable depth mm 300 Installation height mm 80 Power consumption W 18 27 27 923202 1500 Q Sheet steel shelf with steel hoops Ti.5 25 kg Made of sheet metal, with galvanised steel hoops. For attachment to support columns No. 923000. Suitable for: Installation by mounting between support columns, on roller cabinets and perforated panels. Colour: Light grey RAL 7035 powder-coated. Hoops hot-dip galvanised. suitable for type H iooo I 1500 : 2000 1 Shelf with steel hoops (115.92) (151.63) (173.88) Usable width mm 880 1380 1880 Usable depth mm 300 Installation height mm 80 Hoop height mm 330 Hoop0 mm 8 Number of steel hoops 4 5 6 92_3204_2000 117
