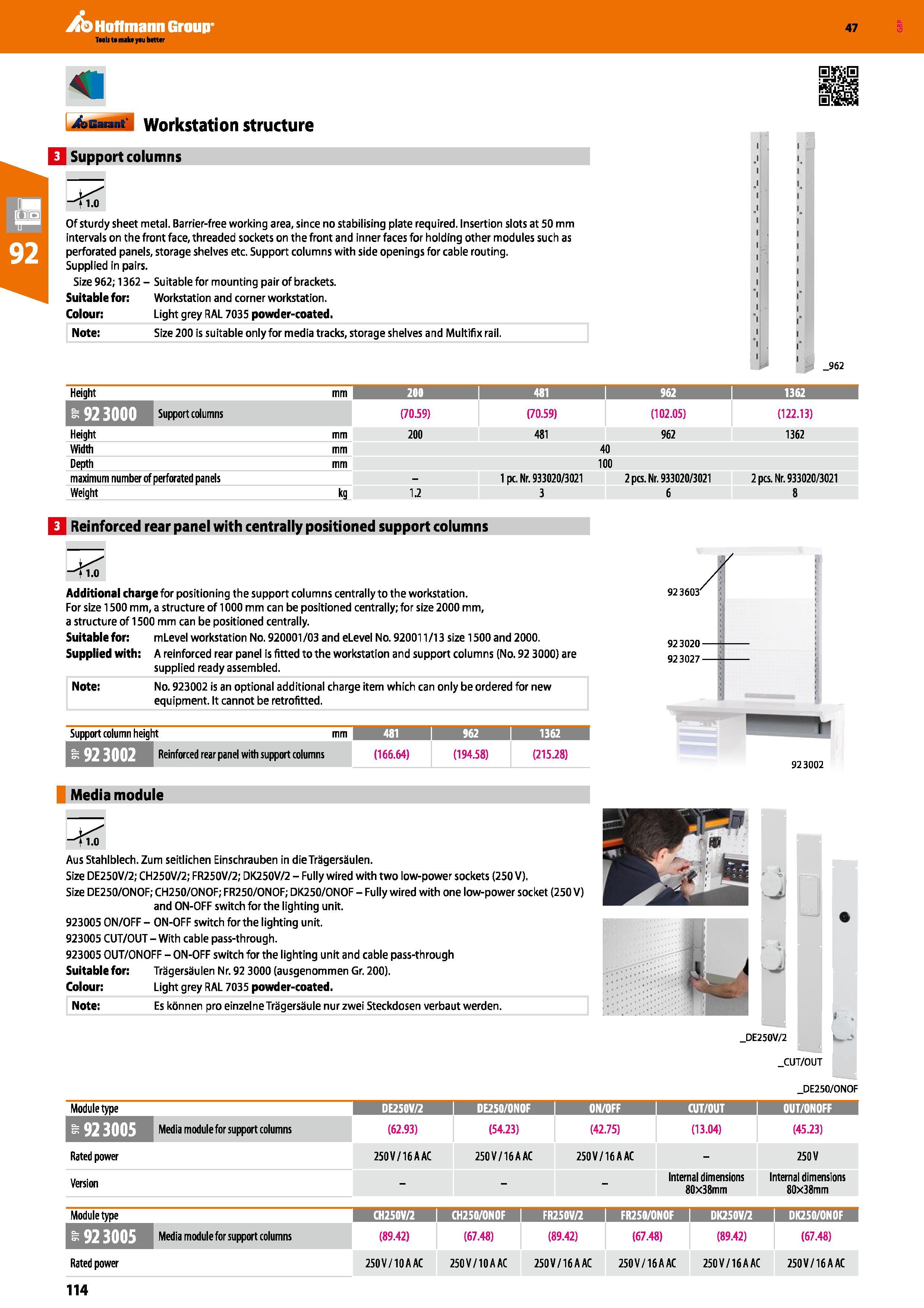

114 Каталог HOFFMANN GROUP 2016 Производственная мебель для работы и хранения Вер. 47 Стр.114

Каталог HOFFMANN GROUP 2016 Производственная мебель Стр. 114 0114 ENG Lab2u

Hoffmann Group 47 4sBa Hk Workstation structure Q Support columns t i.o Of sturdy sheet metal. Barrier-free working area, since no stabilising plate required. Insertion slots at 50 mm intervals on the front face, threaded sockets on the front and inner faces for holding other modules such as perforated panels, storage shelves etc. Support columns with side openings for cable routing. Supplied in pairs. Size 962; 1362 - Suitable for mounting pair of brackets. Suitable for: Workstation and corner workstation. Colour: Light grey RAL 7035 powder-coated. Note: Size 200 is suitable only for media tracks, storage shelves and Multifix rail. _962 Height mm 200 481 962 i 1362 1 Support columns (70.59) (70.59) (102.05) (122.13) Height mm 200 481 962 1362 Width mm 40 Depth mm 100 maximum number of perforated panels - 1 pc. Nr. 933020/3021 2 pcs. Nr. 933020/3021 2 pcs. Nr. 933020/3021 Weight kg 1.2 3 6 8 Q Reinforced rear panel with centrally positioned support columns " i.o Additional charge for positioning the support columns centrally to the workstation. For size 1500 mm, a structure of 1000 mm can be positioned centrally; for size 2000 mm, a structure of 1500 mm can be positioned centrally. Suitable for: mLevel workstation No. 920001/03 and eLevel No. 920011/13 size 1500 and 2000. Supplied with: A reinforced rear panel is fitted to the workstation and support columns (No. 92 3000) are supplied ready assembled. Note: No. 923002 is an optional additional charge item which can only be ordered for new equipment. It cannot be retrofitted. 923603' 923020-923027 3 Support column height mm 481 962 I 1362 1 Reinforced rear panel with support columns (166.64) (194.58) (215.28) 923002 Media module t i.o Aus Stahlblech. Zum seitlichen Einschrauben in dieTragersaulen. Size DE250V/2; CH250V/2; FR250V/2; DK250V/2 - Fully wired with two low-power sockets (250 V). Size DE250/ONOF; CH250/ONOF; FR250/ONOF; DK250/ONOF - Fully wired with one low-power socket (250 V) and ON-OFF switch for the lighting unit. 923005 ON/OFF - ON-OFF switch for the lighting unit. 923005 CUT/OUT -With cable pass-through. 923005 OUT/ONOFF - ON-OFF switch for the lighting unit and cable pass-through Suitable for: Tragersaulen Nr. 92 3000 (ausgenommen Gr. 200). Colour: Light grey RAL 7035 powder-coated. Note: Es konnen proeinzelneTragersaule nurzwei Steckdosen verbaut werden. _DE250V/2 _CUT/OUT _DE25Q/ONOF Module type DE250V/2 DE250/0N0F 0N/0FF i CUT/OUT 0UT/0N0FF I ta.7i:ilIlV Media module for support columns (62.93) (54.23) (42.75) (13.04) (45.23) Rated power 250V/16AAC 250V/16AAC 250 V/16 A AC - 250 V Version - - - Internal dimensions 80x38mm Internal dimensions 80x38mm Module type CH250V/2 I CH250/0N0F i FR250V/2 I FR250/0N0F i DK250V/2 I DK250/0NQF 1 Media module for support columns (89.42) (67.48) (89.42) (67.48) (89.42) (67.48) Rated power 250V/10AAC 250V/10AAC 250 V/16 A AC 250V/16AAC 250V/16AAC 250 V/16 A AC 114
