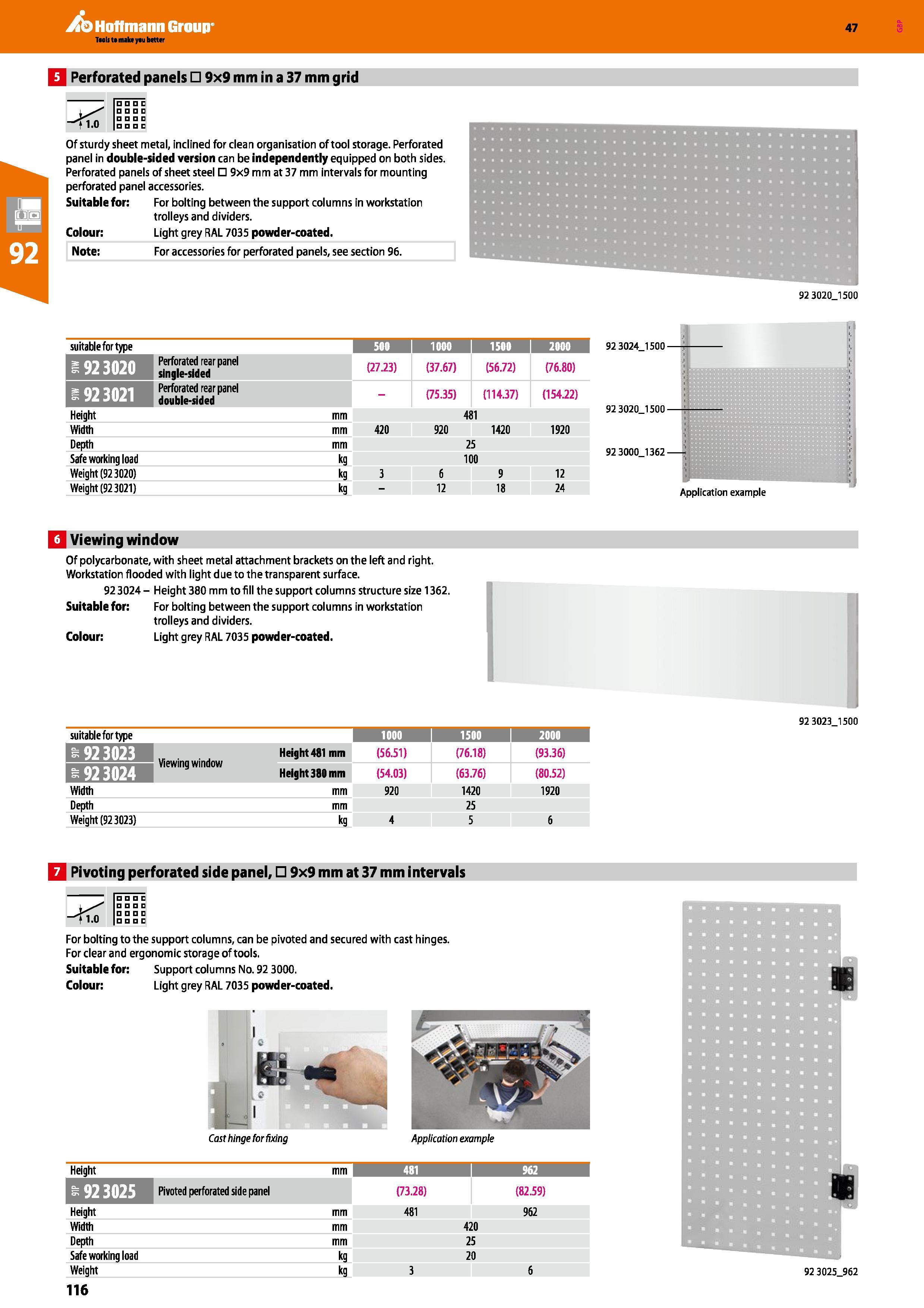

Hoffmann Group 47 Q Perforated panels 9x9 mm in a 37 mm grid "t 1-0 c D D Of sturdy sheet metal, inclined for dean organisation of tool storage. Perforated panel in double-sided version can be independently equipped on both sides. Perforated panels of sheet steel 9x9 mm at 37 mm intervals for mounting perforated panel accessories. Suitable for: For bolting between the support columns in workstation trolleys and dividers. Colour: Light grey RAL 7035 powder-coated. Note: For accessories for perforated panels, see section 96. 92 3020_1500 suitable for type 1 500 1 1000 I 1500 I 2000 Perforated rear panel single-sided (27.23) (37.67) (56.72) (76.80) Perforated rear panel double-sided - (75.35) (114.37) (154.22) Height mm 481 Width mm 420 920 1420 1920 Depth mm 25 Safe working load kg 100 Weight (92 3020) kg 3 6 9 12 Weight (92 3021) kg - 12 18 24 92 3024 1500- 92 3020_1500 92 3000 1362 Application example Q Viewing window Of polycarbonate, with sheet metal attachment brackets on the left and right. Workstation flooded with light due to the transparent surface. 92 3024 - Height 380 mm to fill the support columns structure size 1362. Suitable for: For bolting between the support columns in workstation trolleys and dividers. Colour: Light grey RAL 7035 powder-coated. suitable for type 1 1000 1500 2000 i & 92 3023 Height 481 mm (56.51) (76.18) (93.36) -92 3024 mmm Height 380 mm (54.03) (63.76) (80.52) Width mm 920 1420 1920 Depth mm 25 Weight (92 3023) kg 4 5 6 92 3023 1500 Q Pivoting perforated side panel, 9x9 mm at 37 mm intervals c ± n -Tin hnnD t l.U Inane For bolting to the support columns, can be pivoted and secured with cast hinges. For clear and ergonomic storage of tools. Suitable for: Support columns No. 92 3000. Colour: Light grey RAL 7035 powder-coated. iu > Cast hinge for fixing Application example Height mm 481 1 962 I Pivoted perforated side panel (73.28) (82.59) Height mm 481 962 Width mm 420 Depth mm 25 Safe working load kg 20 Weight kg 3 6 116 m 92 3025_962
