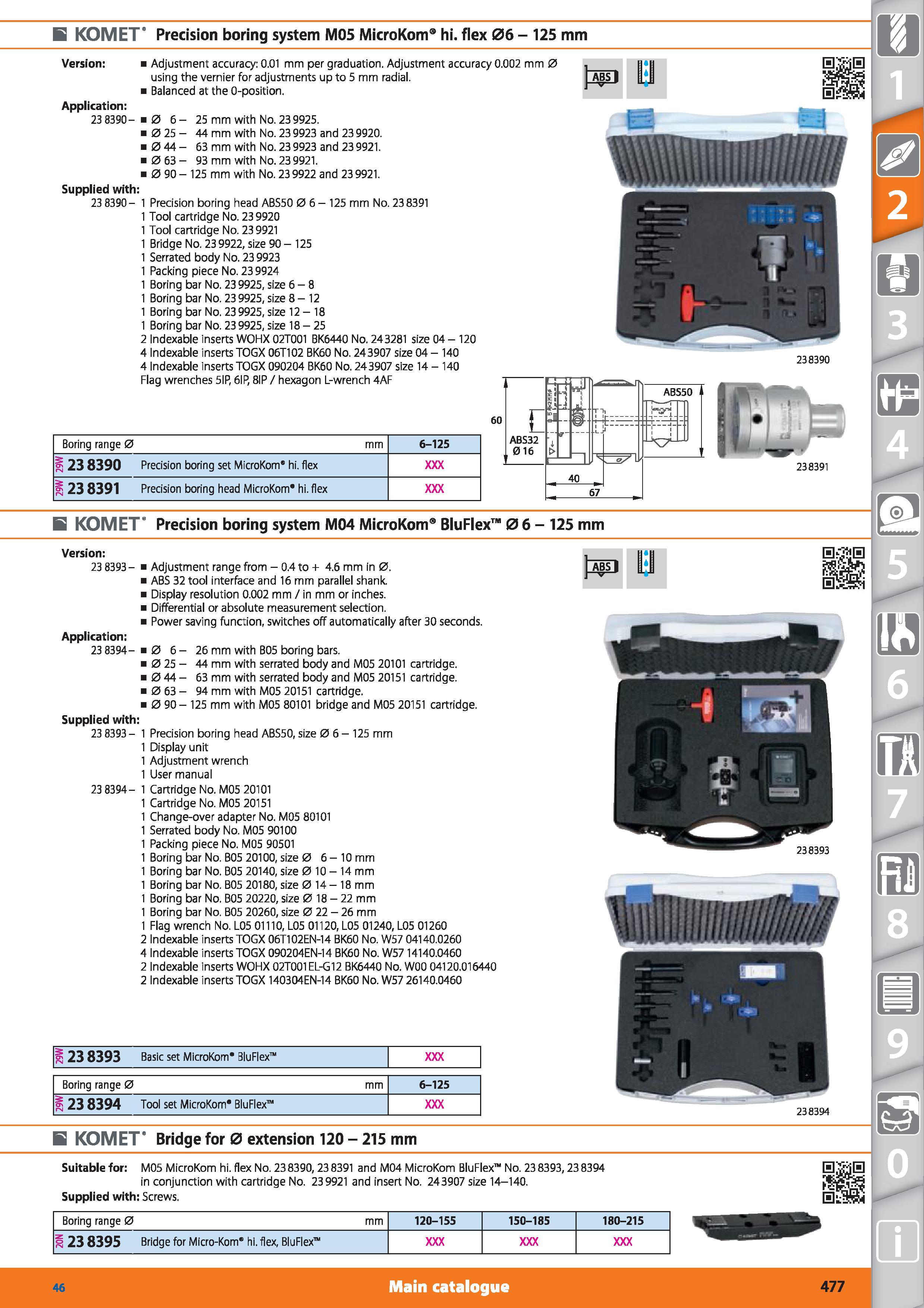

Precision boring system KOMET M05 MicroKom hi. flex 06 - 125 mm 238390 Version Adjustment accuracy 0.01 mm per graduation. Adjustment accuracy 0.002 using the vernier for adjustments up to 5 mm radial. Balanced at the 0-position. Application 23 8390- 0 6 - 25 mm with No. 239925. 0 25 - 44 mm with No. 23 9923 and 23 9920. 0 44 - 63 mm with No. 23 9923 and 23 9921. 0 63 - 93 mm with No. 23 9921. 0 90-125 mm with No. 239922 and 239921. Supplied with 23 8390- 1 Precision boring head ABS50 0 6 - 125 mm No. 238391 1 Tool cartridge No. 239920 1 Tool cartridge No. 239921 1 Bridge No. 23 9922, size 90 - 125 1 Serrated body No. 23 9923 1 Packing piece No. 239924 1 Boring bar No. 23 9925, size 6-8 1 Boring bar No. 23 9925, size 8-12 1 Boring bar No. 23 9925, size 12-18 1 Boring bar No. 23 9925, size 18-25 2 Indexable inserts WOHX 02T001 BK6440 No. 243281 size 04 - 120 4 Indexable inserts TOGX 06T102 BK60 No. 243907 size 04 - 140 4 Indexable inserts TOGX 090204 BK60 No. 243907 size 14-140 Flag wrenches 5IP, 6IP, 8IP / hexagon L-wrench 4AF mm 0 ABS50 Boring range 0 mm 6-125 I 23 8390 Precision boring set MicroKom” hi. flex 1238391 Precision boring head MicroKom hi. flex 238391 KOMET Precision boring system M04 MicroKom8 BluFlex 0 6 - 125 mm Version 23 8393- Application 23 8394- i Adjustment range from - 0.4 to + 4.6 mm in 0. i ABS 32 tool interface and 16 mm parallel shank i Display resolution 0.002 mm / in mm or inches, i Differential or absolute measurement selection, i Power saving function, switches off automatically after 30 seconds. i0 6 - 26 mm with B05 boring bars. 0 25 - 44 mm with serrated body and M05 20101 cartridge. 0 44 - 63 mm with serrated body and M05 20151 cartridge. 0 63 - 94 mm with M05 20151 cartridge. 0 90- 125 mm with M05 80101 bridge and M05 20151 cartridge. Supplied with 23 8393 - 1 Precision boring head ABS50, size 0 6 - 125 mm 1 Display unit 1 Adjustment wrench 1 User manual 23 8394- 1 Cartridge No. M05 20101 1 Cartridge No. M05 20151 1 Change-over adapter No. M05 80101 1 Serrated body No. M05 90100 1 Packing piece No. M05 90501 1 Boring bar No. B05 20100, size 0 6-10 mm 1 Boring bar No. B05 20140, size 010-14 mm 1 Boring bar No. B05 20180, size 0 14-18 mm 1 Boring bar No. B05 20220, size 0 18 - 22 mm 1 Boring bar No. B05 20260, size 0 22 - 26 mm 1 Flag wrench No. L05 01110, L05 01120, L05 01240, L05 01260 2 Indexable inserts TOGX 06T102EN-14 BK60 No. W57 04140.0260 4 Indexable inserts TOGX 090204EN-14 BK60 No. W5714140.0460 2 Indexable inserts WOHX 02T001EL-G12 BK6440 No. WOO 04120.016440 2 Indexable inserts TOGX 140304EN-14 BK60 No. W57 26140.0460 j 23 8393 Basic set MicroKom BluFlex Boring range 0 mm 6-125 J 23 8394 Tool set MicroKom BluFlex 238394 KOMET Bridge for 0 extension 120 - 215 mm Suitable for M05 MicroKom hi. flex No. 23 8390,23 8391 and M04 MicroKom BluFlex No. 23 8393,23 8394 in conjunction with cartridge No. 239921 and insert No. 243907 size 14-140. Supplied with Screws. Boring range 0 mm 120-155 150-185 180-215 S 23 8395 Bridge for Micro-Kom hi. flex, BluFlex 46 Main catalogue
