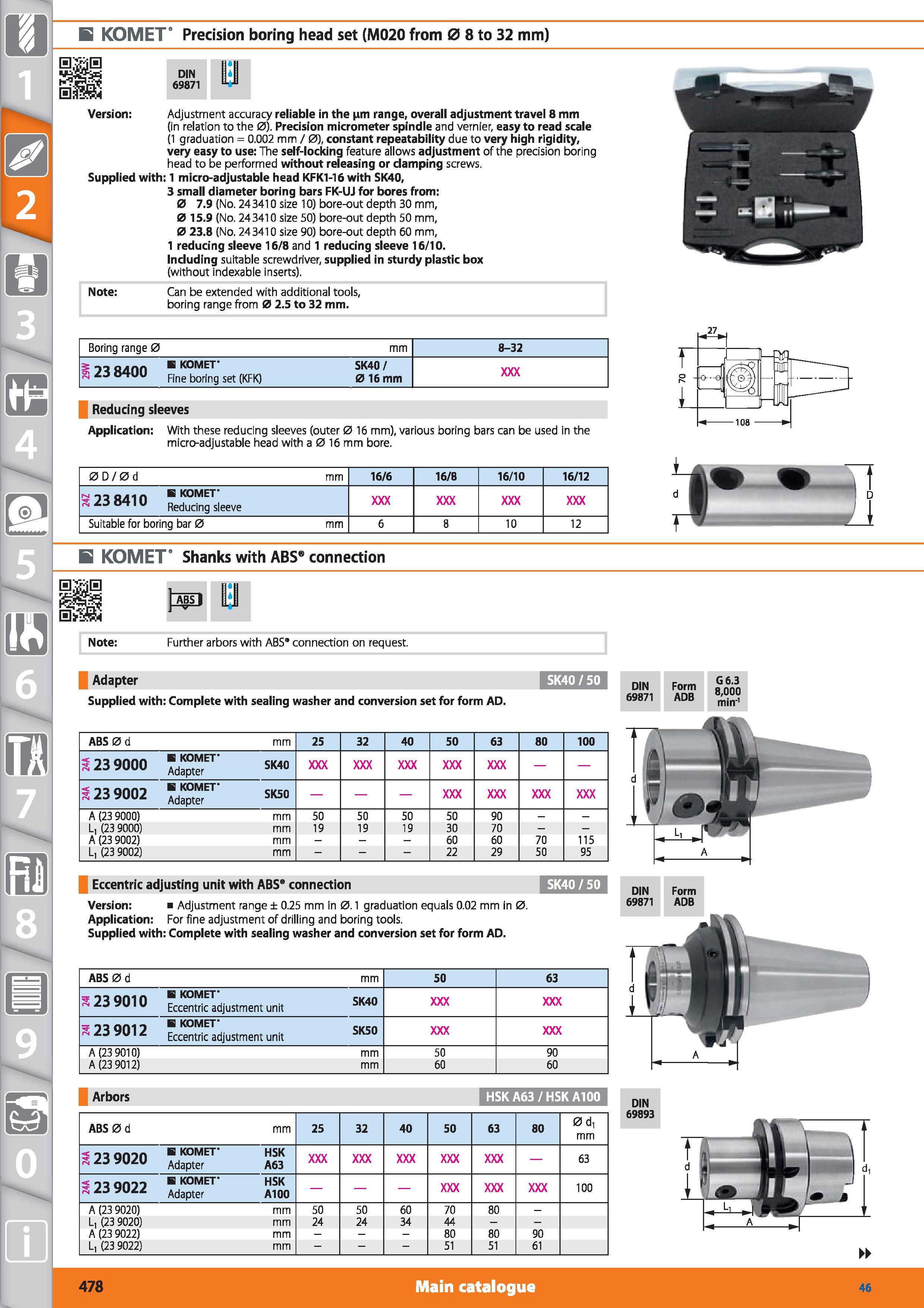

Precision boring head set KOMET M020 from 0 8 to 32 mm DIN 69871 Version Adjustment accuracy reliable in the nm range, overall adjustment travel

Precision boring head set KOMET M020 from 0 8 to 32 mm DIN 69871 Version Adjustment accuracy reliable in the nm range, overall adjustment travel 8 mm (in relation to the 0). Precision micrometer spindle and vernier, easy to read scale (1 graduation 0.002 mm / 0), constant repeatability due to very high rigidity, very easy to use The self-locking feature allows adjustment of the precision boring head to be performed without releasing or clamping screws. Supplied with 1 micro-adjustable head KFK1-16 with SK40, 3 small diameter boring bars FK-UJ for bores from 0 7.9 (No. 243410 size 10) bore-out depth 30 mm, 0 15.9 (No. 243410 size 50) bore-out depth 50 mm, 0 23.8 (No. 243410 size 90) bore-out depth 60 mm, 1 reducing sleeve 16/8 and 1 reducing sleeve 16/10. Including suitable screwdriver, supplied in sturdy plastic box (without indexable inserts). Note Can be extended with additional tools, boring range from 0 2.5 to 32 mm. Boring range 0 mm 8-32 5 g jaa H KOMET =3 IS 84UU Rne bor(ng set (KFK) SK40 / 0 16 mm Reducing sleeves Application With these reducing sleeves (outer 0 16 mm), various boring bars can be used in the micro-adjustable head with a 0 16 mm bore. 0 D / 0 d mm 16/6 16/8 16/10 16/12 S B KOMET Reducing sleeve Suitable for boring bar 0 mm 6 8 10 12 B KOMET Shanks with ABS connection Note Further arbors with ABS connection on request. Adapter Supplied with Complete with sealing washer and conversion set for form AD. SK40/50 DIN 69871 Form ADB G6.3 8,000 min-1 ABS 0d mm 25 32 40 50 63 80 100 a 23 9000 KOMET Adapter SK40 1239002 H KOMET Adapter SK50 A (23 9000) mm 50 50 50 50 90 L, (23 9000) mm 19 19 19 30 70 A (23 9002) mm - 60 60 70 115 L, (23 9002) mm - 22 29 50 95 Eccentric adjusting unit with ABS connection Version Adjustment range ± 0.25 mm in 0.1 graduation equals 0.02 mm in 0. Application For fine adjustment of drilling and boring tools. Supplied with Complete with sealing washer and conversion set for form AD. SK40/50 ABS 0d mm 50 63 S 23 9010 B KOMET Eccentric adjustment unit SK40 a 23 9012 B KOMET Eccentric adjustment unit SK50 A (23 9010) mm 50 90 A (23 9012) mm 60 60 Arbors 478 HSKA63/HSK A100 ABS 0 d mm 25 32 40 50 63 80 0 d, mm 1239020 B KOMET Adapter HSK A63 63 1239022 B KOMET Adapter HSK A100 100 A (23 9020) mm 50 50 60 70 80 - L, (23 9020) mm 24 24 34 44 A (23 9022) mm - 80 80 90 L, (23 9022) mm - 51 51 61 DIN 69893 Main catalogue Hoffmann Group 46 DIN 69871
