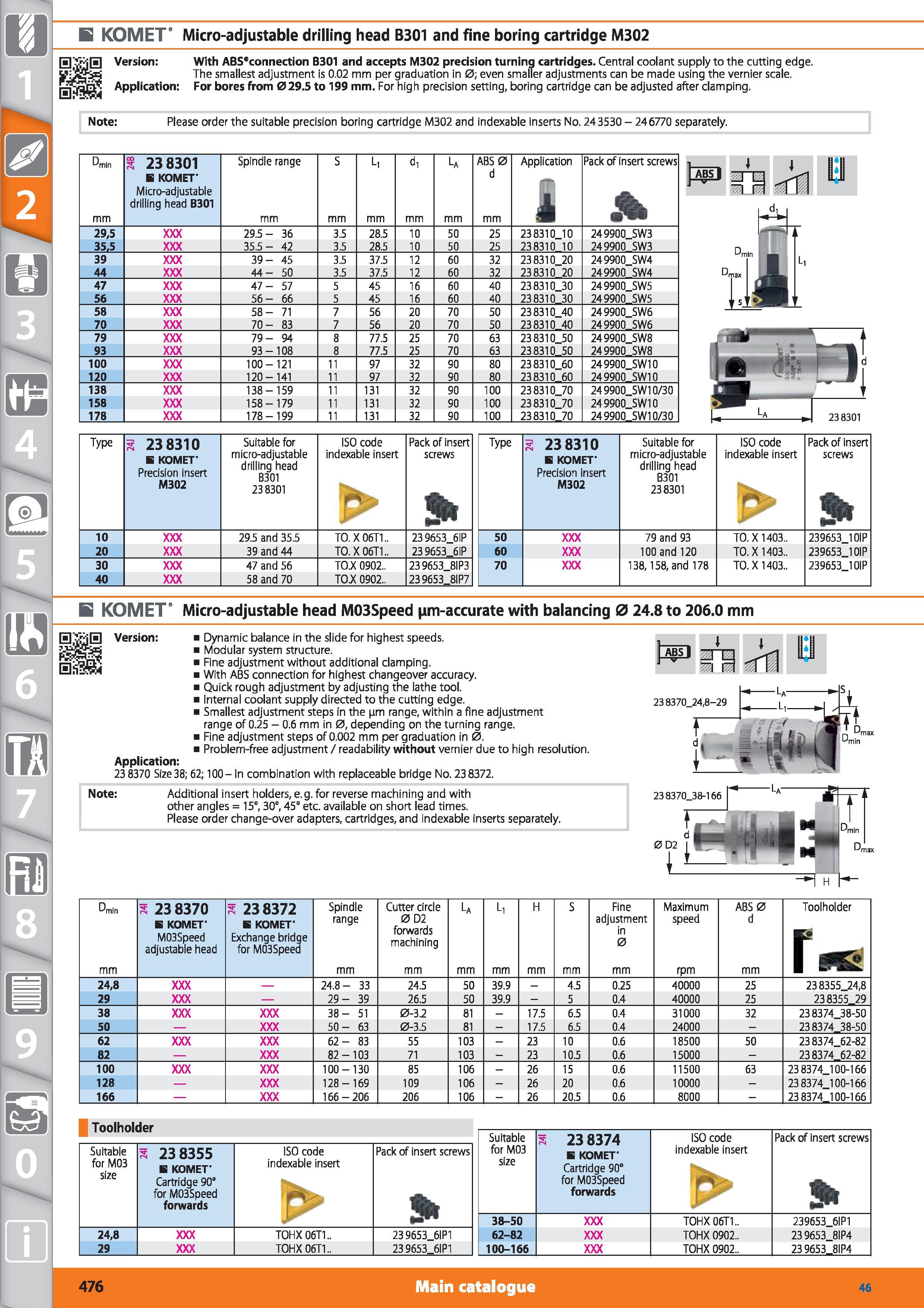

Micro-adjustable drilling head KOMET B301 and fine boring cartridge M302 Version With ABS'connection B301 and accepts M302 precision turning cartridges. Central coolant supply to the cutting edge. The smallest adjustment is 0.02 mm per graduation in 0; even smaller adjustments can be made using the vernier scale. Application For bores from 029.5 to 199 mm. For high precision setting, boring cartridge can be adjusted after clamping. Note Please order the suitable precision boring cartridge M302 and indexable inserts No. 243530 - 246770 separately. L min mm 3 238301 KOMET Micro-adjustable drilling head B301 Spindle range mm S mm L, mm di mm La mm ABS 0 d mm Application Pack of insert screws 29,5 29.5- 36 3.5 28.5 10 50 25 238310 10 249900 SW3 35,5 35.5- 42 3.5 28.5 10 50 25 238310 10 249900 SW3 39 39- 45 3.5 37.5 12 60 32 238310 20 249900 SW4 44 44-50 3.5 37.5 12 60 32 238310 20 249900 SW4 47 47- 57 5 45 16 60 40 238310 30 249900 SW5 56 56- 66 5 45 16 60 40 238310 30 249900 SW5 58 58- 71 7 56 20 70 50 238310 40 249900 SW6 70 70- 83 7 56 20 70 50 238310 40 249900 SW6 79 79-94 8 77.5 25 70 63 238310 50 249900 SW8 93 93-108 8 77.5 25 70 63 238310 50 249900 SW8 100 100-121 11 97 32 90 80 238310 60 249900 SW10 120 120-141 11 97 32 90 80 238310 60 249900 SW10 138 138-159 11 131 32 90 100 238310 70 249900 SW10/30 158 158-179 11 131 32 90 100 238310 70 249900 SW10 178 178-199 11 131 32 90 100 238310 70 249900 SW10/30 1/1 ft 4 _l y “i n -iVi 11 1 Type 3 238310 KOMET Precision insert M302 Suitable for micro-adjustable drilling head B301 238301 ISO code indexable insert > Pack of insert screws Type 3 238310 KOMET Precision insert M302 Suitable for micro-adjustable drilling head B301 238301 ISO code indexable insert > Pack of insert screws Sfc 10 29.5 and 35.5 TO. X 06T1 239653 6IP 50 79 and 93 TO.X 1403 239653 10IP 20 39 and 44 TO.X06T1 239653_6IP 60 100 and 120 TO.X 1403 239653 10IP 30 47 and 56 TO.X 0902 23 9653_8IP3 70 138,158, and 178 TO. XI403 239653J0IP 40 58 and 70 TO.X 0902 23 9653_8IP7 iu KOMET Micro-adjustable head M03Speed (im-accurate with balancing 0 24.8 to 206.0 mm Version Dynamic balance in the slide for highest speeds. Modular system structure. Fine adjustment without additional clamping. With ABS connection for highest changeover accuracy. Quick rough adjustment by adjusting the lathe tool. Internal coolant supply directed to the cutting edge. Smallest adjustment steps in the pm range, within a fine adjustment range of 0.25 - 0.6 mm in 0, depending on the turning range. Fine adjustment steps of 0.002 mm per graduation in 0. Problem-free adjustment / readability without vernier due to high resolution. Application 23 8370 Size 38; 62; 100 - In combination with replaceable bridge No. 23 8372. absJ _l l_ -i r rfl 111 Note Additional insert holders, e.g. for reverse machining and with other angles 15°, 30°, 45° etc. available on short lead times. Please order change-over adapters, cartridges, and indexable inserts separately. mln 3 238370 KOMET M03Speed adjustable head 3 238372 KOMET Exchange bridge for M03Speed Spindle range Cutter circle 0D2 forwards machining La L, H S Fine adjustment in 0 Maximum speed ABS 0 d Toolholder mm rpm mm II WB. 24,8 24.8- 33 24.5 50 39.9 - 4.5 0.25 40000 25 23 8355_24,8 29 29- 39 26.5 50 39.9 - 5 0.4 40000 25 238355 29 38 38- 51 0-3.2 81 - 17.5 6.5 0.4 31000 32 238374 38-50 50 50- 63 0-3.5 81 - 17.5 6.5 0.4 24000 - 238374 38-50 62 62- 83 55 103 - 23 10 0.6 18500 50 238374 62-82 82 82-103 71 103 - 23 10.5 0.6 15000 - 238374 62-82 100 100-130 85 106 - 26 15 0.6 11500 63 238374 100-166 128 128-169 109 106 - 26 20 0.6 10000 - 238374 100-166 166 166 - 206 206 106 - 26 20.5 0.6 8000 - 23 8374_100-166 Toolholder Suitable for M03 size 3 23 8355 KOMET Cartridge 90° for M03Speed forwards ISO code indexable insert > Pack of insert screws Sh 24,8 TOHX 06T1 239653 6IP1 29 TOHX 06T1 23 9653_6IP1 Suitable for M03 size 3 238374 KOMET Cartridge 90° for M03Speed forwards ISO code indexable insert Pack of insert screws Sh 38-50 TOHX 06T1 239653 6IP1 62-82 TOHX 0902 239653 8IP4 100-166 TOHX 0902 23 9653_8IP4 46 238301 Main catalogue
