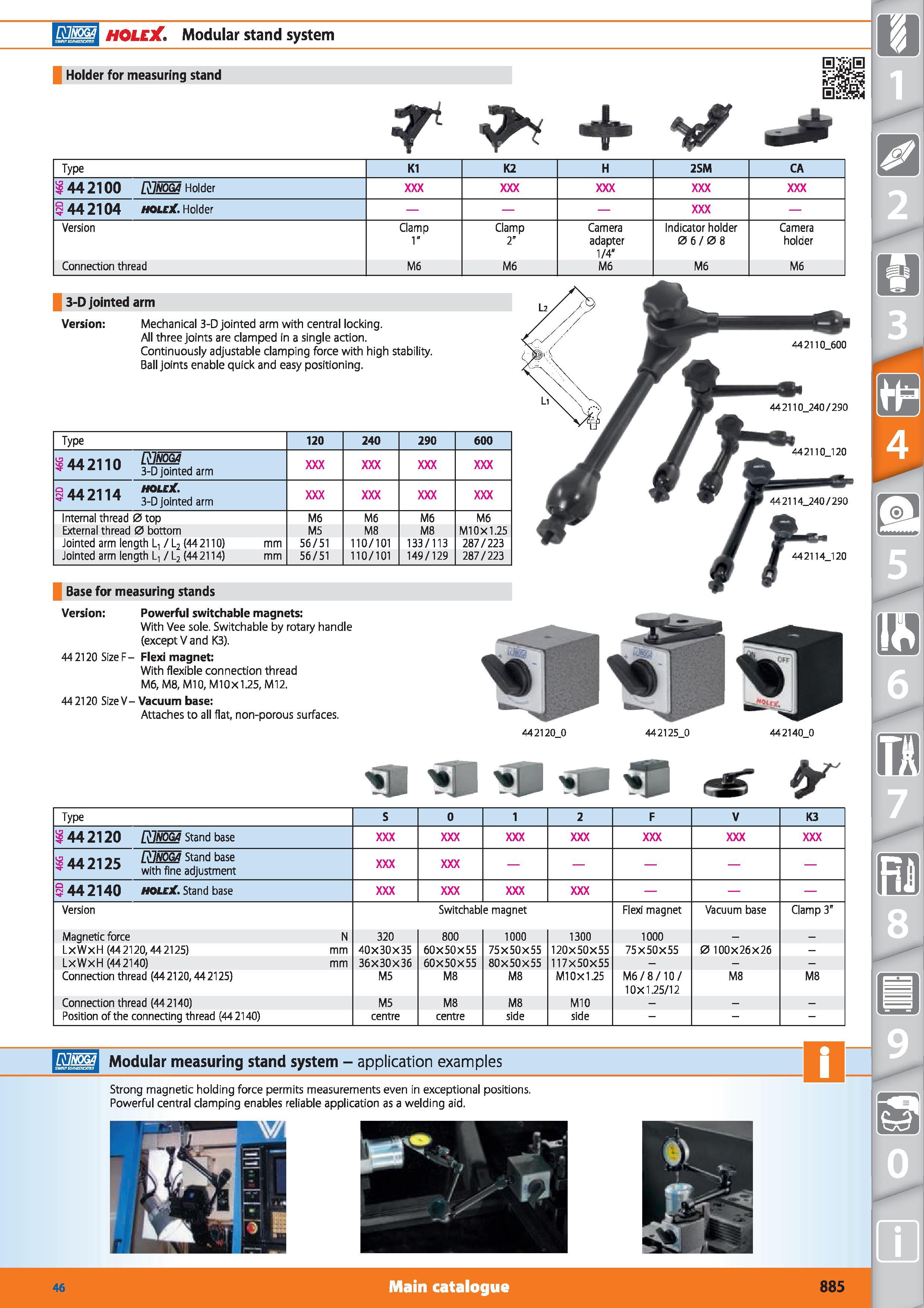

RlNOGA HOLEX Modular stand system Holder for measuring stand Type K1 K2 H 2SM CA 44 2100 mSOOJ Holder 44 2104 holcjC. Holder Version Clamp Clamp Camera Indicator holder Camera 1" 2" adapter 06/08 holder 1/4" Connection thread M6 M6 M6 M6 M6 3-D jointed arm Version Mechanical 3-D jointed arm with central locking. All three joints are clamped in a single action. Continuously adjustable clamping force with high stability. Ball joints enable quick and easy positioning. Type 120 240 290 600 s 44 2110 SWZMU 3-D jointed arm Q a a A HQLEjC 3 44 2114 3-D jointed arm Internal thread 0 top M6 M6 M6 M6 External thread 0 bottom Jointed arm length L,/L2 (442110) mm M5 56/51 M8 110/101 M8 133/113 M10X1.25 287/223 Jointed arm length L, / L2 (442114) mm 56/51 110/101 149/129 287/223 Base for measuring stands Version Powerful switchable magnets With Vee sole. Switchable by rotary handle (except V and K3). 44 2120 Size F - Flexi magnet With flexible connection thread M6, M8, M10, MlOxl.25, M12. 44 2120 Size V - Vacuum base Attaches to all flat, non-porous surfaces. 442120_0 442125_0 442140_0 Type s 0 1 2 F V K3 44 2120 fflSOG Stand base S AA 21 DlNOGA Stand base with fine adjustment 44 2140 HOLEX Stand base Version Switchable magnet Flexi magnet Vacuum base Clamp 3” Magnetic force N 320 800 1000 1300 1000 LxWxH (442120,442125) mm 40X30X35 60X50X55 75X50X55 120X50X55 75X50X55 0 100X26X26 - LxWxH (442140) mm 36X30X36 60X50X55 80X50X55 117X50X55 - Connection thread (442120,442125) M5 M8 M8 Ml OX 1.25 M6/8/10/ 10x1.25/12 M8 M8 Connection thread (442140) M5 M8 M8 M10 - Position of the connecting thread (442140) centre centre side side - R'lNOQA Modular measuring stand system - application examples Strong magnetic holding force permits measurements even in exceptional positions. Powerful central clamping enables reliable application as a welding aid. m m 46 Main catalogue
