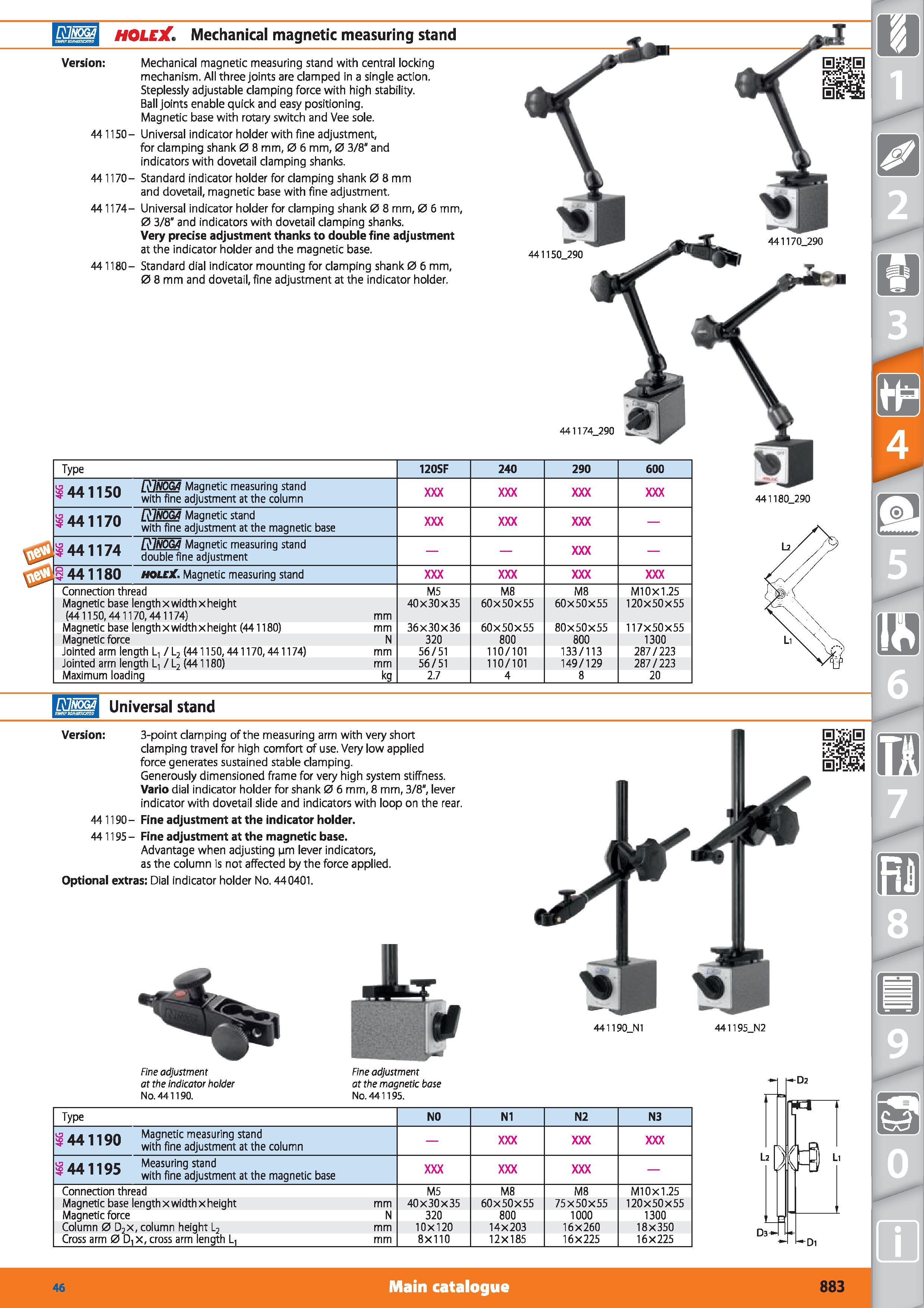

RlNOGA HOLEX Mechanical magnetic measuring stand Version Mechanical magnetic measuring stand with central locking mechanism. All three joints are clamped in a single action. Steplessly adjustable clamping force with high stability. Ball joints enable quick and easy positioning. Magnetic base with rotary switch and Vee sole. 441150- Universal indicator holder with fine adjustment, for clamping shank 0 8 mm, 0 6 mm, 0 3/8" and indicators with dovetail clamping shanks. 441170- Standard indicator holder for clamping shank 0 8 mm and dovetail, magnetic base with fine adjustment. 441174- Universal indicator holder for clamping shank 0 8 mm, 0 6 mm, 0 3/8” and indicators with dovetail clamping shanks. Very precise adjustment thanks to double fine adjustment at the indicator holder and the magnetic base. 441180- Standard dial indicator mounting for clamping shank 0 6 mm, 0 8 mm and dovetail, fine adjustment at the indicator holder. rfi 441150_290 441174_290 Type 120SF 240 290 600 u a a 11 Tl RlNOGA Maanetic measurina stand with fine adjustment at the column a 44 1170 RlNOM Magnetic stand with fine adjustment at the magnetic base u < 7< RlNOGA Maanetic measurina stand m double fine adjustment 44 1180 holeX. Magnetic measuring stand Connection thread M5 M8 M8 M10X1.25 Magnetic base lengthxwidthxheight (441150,441170,441174) mm 40 x 30 x 35 60x50x55 60x50x55 120x50x55 Magnetic base lengthxwidthxheight (441180) mm 36x30x36 60x50x55 80x50x55 117x50x55 Magnetic force N 320 800 800 1300 Jointed arm length L, /1_2 (441150,441170,441174) mm 56/51 110/101 133/113 287/223 Jointed arm length L, / L2 (441180) mm 56/51 110/101 149/129 287/223 Maximum loading kg 2.7 4 8 20 RInoga Universal stand Version 3-point clamping of the measuring arm with very short clamping travel for high comfort of use. Very low applied force generates sustained stable clamping. Generously dimensioned frame for very high system stiffness. Vario dial indicator holder for shank 0 6 mm, 8 mm, 3/8", lever indicator with dovetail slide and indicators with loop on the rear. 441190- Fine adjustment at the indicator holder. 441195 - Fine adjustment at the magnetic base. Advantage when adjusting pm lever indicators, as the column is not affected by the force applied. Optional extras Dial indicator holder No. 440401. 441190JM1 441195_N2 Fine adjustment at the indicator holder No. 441190. Fine adjustment at the magnetic base No. 441195. Type NO N1 N2 N3 44 1190 Ma9netic measuring stand with fine adjustment at the column 3 44 1195 Measuring stand with fine adjustment at the magnetic base Connection thread M5 M8 M8 MIOxl.25 Magnetic base lengthxwidthxheight mm 40 x 30 x 35 60x50x55 75x50x55 120x50x55 Magnetic force N 320 800 1000 1300 Column 0 D2x, column height L2 mm 10x120 14x203 16x260 18x350 Cross arm 0 D, x, cross arm length L, mm 8X110 12X185 16x225 16x225 Di Da I -Di m Main catalogue Hoffmann Group 46 883
