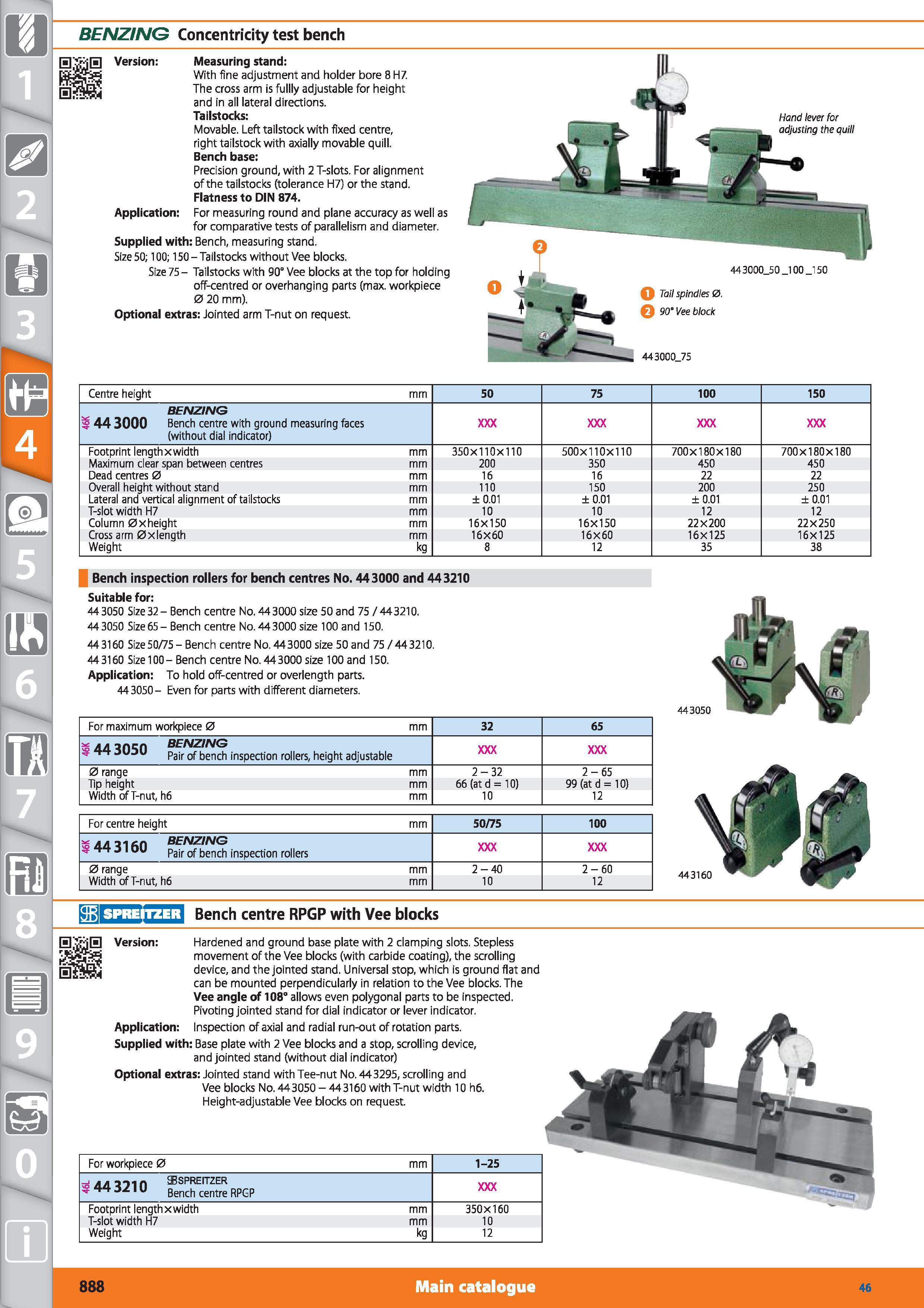

1 BENZING Concentricity test bench Version Measuring stand With fine adjustment and holder bore 8 H7. The cross arm is fullly adjustable for height and in all lateral directions. Tailstocks Movable. Left tailstock with fixed centre, right tailstock with axially movable quill. Bench base Precision ground, with 2 T-slots. For alignment of the tailstocks (tolerance H7) or the stand. Flatness to DIN 874. Application For measuring round and plane accuracy as well as for comparative tests of parallelism and diameter. Supplied with Bench, measuring stand. Size 50; 100; 150 - Tailstocks without Vee blocks. Size 75 - Tailstocks with 90° Vee blocks at the top for holding off-centred or overhanging parts (max. workpiece 0 20 mm). Optional extras Jointed arm T-nut on request. Da Centre height mm 50 75 100 150 BENZING 44 3000 Bench centre with ground measuring faces (without dial indicator) Footprint lengthxwidth mm 350x110x110 500x110x110 700x180x180 700x180x180 Maximum clear span between centres mm 200 350 450 450 Dead centres 0 mm 16 16 22 22 Overall height without stand mm 110 150 200 250 Lateral and vertical alignment of tailstocks mm ±0.01 ±0.01 ±0.01 ±0.01 T-slot width H7 mm 10 10 12 12 Column 0xheight mm 16X150 16X150 22X200 22X250 Cross arm 0xlength mm 16X60 16X60 16X125 16X125 Weight kg 8 12 35 38 IU to Bench inspection rollers for bench centres No. 443000 and 443210 Suitable for 443050 Size32- Bench centre No. 443000 size 50 and 75/443210. 44 3050 Size 65 - Bench centre No. 44 3000 size 100 and 150. 443160 Size50/75- Bench centre No. 443000 size 50 and 75 / 44 3210. 443160 Size 100- Bench centre No. 443000 size 100 and 150. Application To hold off-centred or overlength parts. 443050- Even for parts with different diameters. For maximum workpiece 0 mm 32 65 144 3050 BENZING -r-r Pajr inspection rollers, height adjustable 0 range mm 2-32 2-65 Tip height mm 66 (at d 10) 99 (at d 10) Width of T-nut, h6 mm 10 12 For centre height mm 50/75 100 H 44 3160 BENZING Pair of bench inspection rollers 0 range mm 2-40 2-60 Width of T-nut, h6 mm 10 12 Ei rTTx 7rTTl Bench centre RPGP with Vee blocks m Hand lever for adjusting the quill 443000_50 _100 _150 Tail spindles 0. 90’ Vee block 443000_75 443050 443160 HS'iS Version Hardened and ground base plate with 2 clamping slots. Stepless movement of the Vee blocks (with carbide coating), the scrolling device, and the jointed stand. Universal stop, which is ground flat and can be mounted perpendicularly in relation to the Vee blocks. The Vee angle of 108° allows even polygonal parts to be inspected. Pivoting jointed stand for dial indicator or lever indicator. Application Inspection of axial and radial run-out of rotation parts. Supplied with Base plate with 2 Vee blocks and a stop, scrolling device, and jointed stand (without dial indicator) Optional extras Jointed stand with Tee-nut No. 443295, scrolling and Vee blocks No. 443050-443160 with T-nut width 10 h6. Height-adjustable Vee blocks on request. For workpiece 0 Footprint lengthxwidth T-slot width H7 Weight 350x160 10 12 44 3210 9BSPREITZER WWIU Bench centre RPGP 888 Main catalogue Hoffmann Group 46
