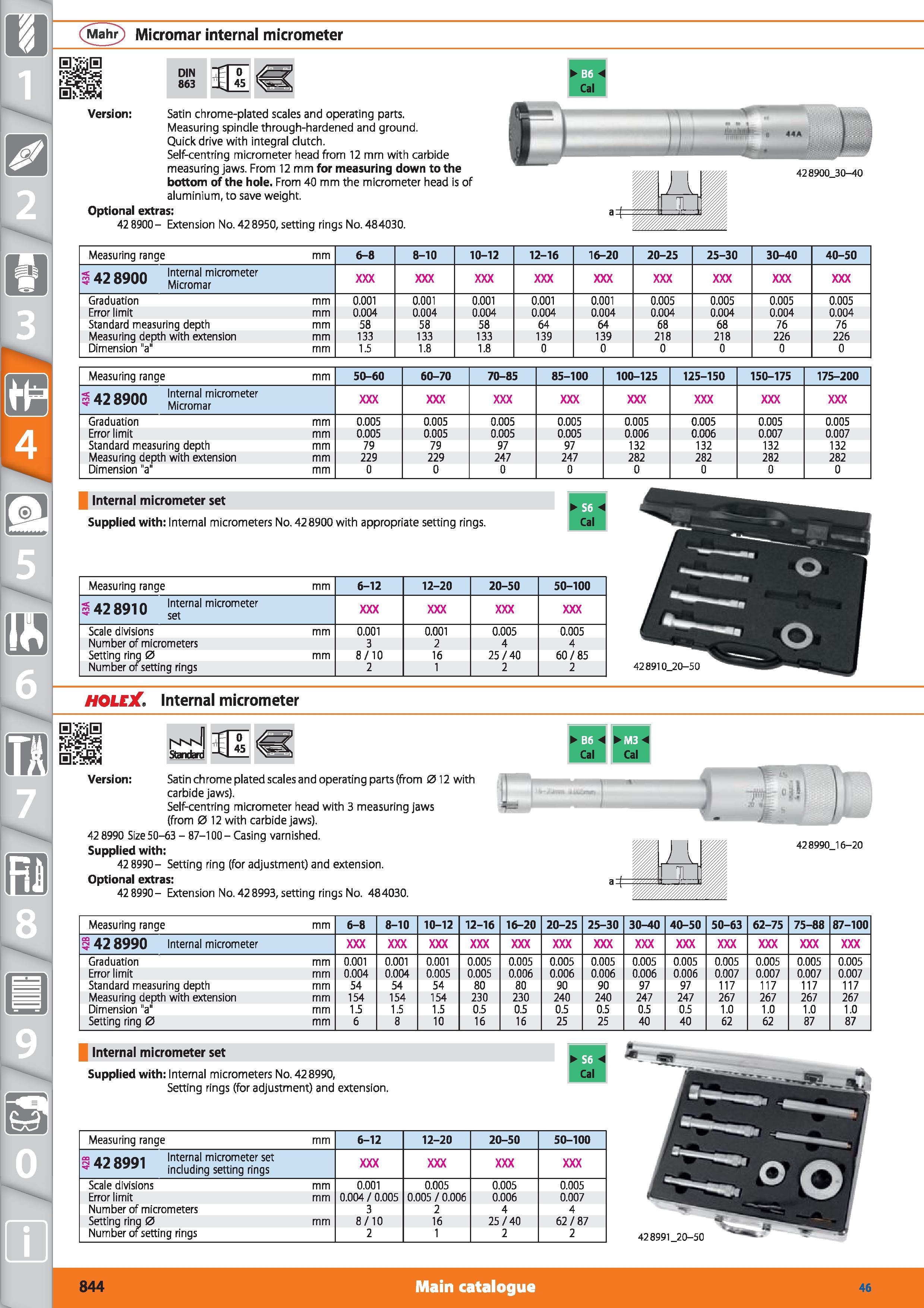

1 Mahr Micromar internal micrometer DIN 863 Satin chrome-plated scales and operating parts. Measuring spindle through-hardened and ground. Quick drive with integral clutch. Self-centring micrometer head from 12 mm with carbide measuring jaws. From 12 mm for measuring down to the bottom of the hole. From 40 mm the micrometer head is of aluminium, to save weight. Optional extras 42 8900- Extension No. 428950, setting rings No. 484030. 428900_30-40 Measuring range mm 6-8 8-10 10-12 12-16 16-20 20-25 25-30 30-40 40-50 S 49 ognn Internal micrometer hz. o uu Micromar Graduation mm 0.001 0.001 0.001 0.001 0.001 0.005 0.005 0.005 0.005 Error limit mm 0.004 0.004 0.004 0.004 0.004 0.004 0.004 0.004 0.004 Standard measuring depth mm 58 58 58 64 64 68 68 76 76 Measuring depth with extension mm 133 133 133 139 139 218 218 226 226 Dimension "a" mm 1.5 1.8 1.8 0 0 0 0 0 0 Measuring range mm 50-60 60-70 70-85 85-100 100-125 125-150 150-175 175-200 S 49 ROnn Internal micrometer 'r Micromar Graduation mm 0.005 0.005 0.005 0.005 0.005 0.005 0.005 0.005 Error limit mm 0.005 0.005 0.005 0.005 0.006 0.006 0.007 0.007 Standard measuring depth mm 79 79 97 97 132 132 132 132 Measuring depth with extension mm 229 229 247 247 282 282 282 282 Dimension "a" mm 0 0 0 0 0 0 0 0 Internal micrometer set Supplied with Internal micrometers No. 428900 with appropriate setting rings. Measuring range mm 6-12 12-20 20-50 50-100 < 42 8910 Internal micrometer Scale divisions mm 0.001 0.001 0.005 0.005 Number of micrometers 3 2 4 4 Setting ring 0 mm 8/10 16 25/40 60/85 Number of setting rings 2 1 2 2 428910_20-50 HOLEX Internal micrometer I'vM'J Standard SI Version Satin chrome plated scales and operating parts (from 012 with carbide jaws). Self-centring micrometer head with 3 measuring jaws (from 0 12 with carbide jaws). 42 8990 Size 50-63 - 87-100 - Casing varnished. Supplied with 42 8990- Setting ring (for adjustment) and extension. Optional extras 42 8990- Extension No. 428993, setting rings No. 484030. 428990 16-20 Measuring range mm 6-8 8-10 10-12 12-16 16-20 20-25 25-30 30-40 40-50 50-63 62-75 75-88 87-100 42 8990 Internal micrometer Graduation mm 0.001 0.001 0.001 0.005 0.005 0.005 0.005 0.005 0.005 0.005 0.005 0.005 0.005 Error limit mm 0.004 0.004 0.005 0.005 0.006 0.006 0.006 0.006 0.006 0.007 0.007 0.007 0.007 Standard measuring depth mm 54 54 54 80 80 90 90 97 97 117 117 117 117 Measuring depth with extension mm 154 154 154 230 230 240 240 247 247 267 267 267 267 Dimension "a" mm 1.5 1.5 1.5 0.5 0.5 0.5 0.5 0.5 0.5 1.0 1.0 1.0 1.0 Setting ring 0 mm 6 8 10 16 16 25 25 40 40 62 62 87 87 Internal micrometer set Supplied with Internal micrometers No. 428990, Setting rings (for adjustment) and extension. Measuring range mm 6-12 12-20 20-50 50-100 42 oqqi Internal micrometer set a- Hi. ow including setting rings Scale divisions mm 0.001 0.005 0.005 0.005 Error limit mm 0.004 / 0.005 0.005 / 0.006 0.006 0.007 Number of micrometers 3 2 4 4 Setting ring 0 mm 8/10 16 25/40 62/87 Number of setting rings 2 1 2 2 428991_20-50 844 Main catalogue Hoffmann Group 46
