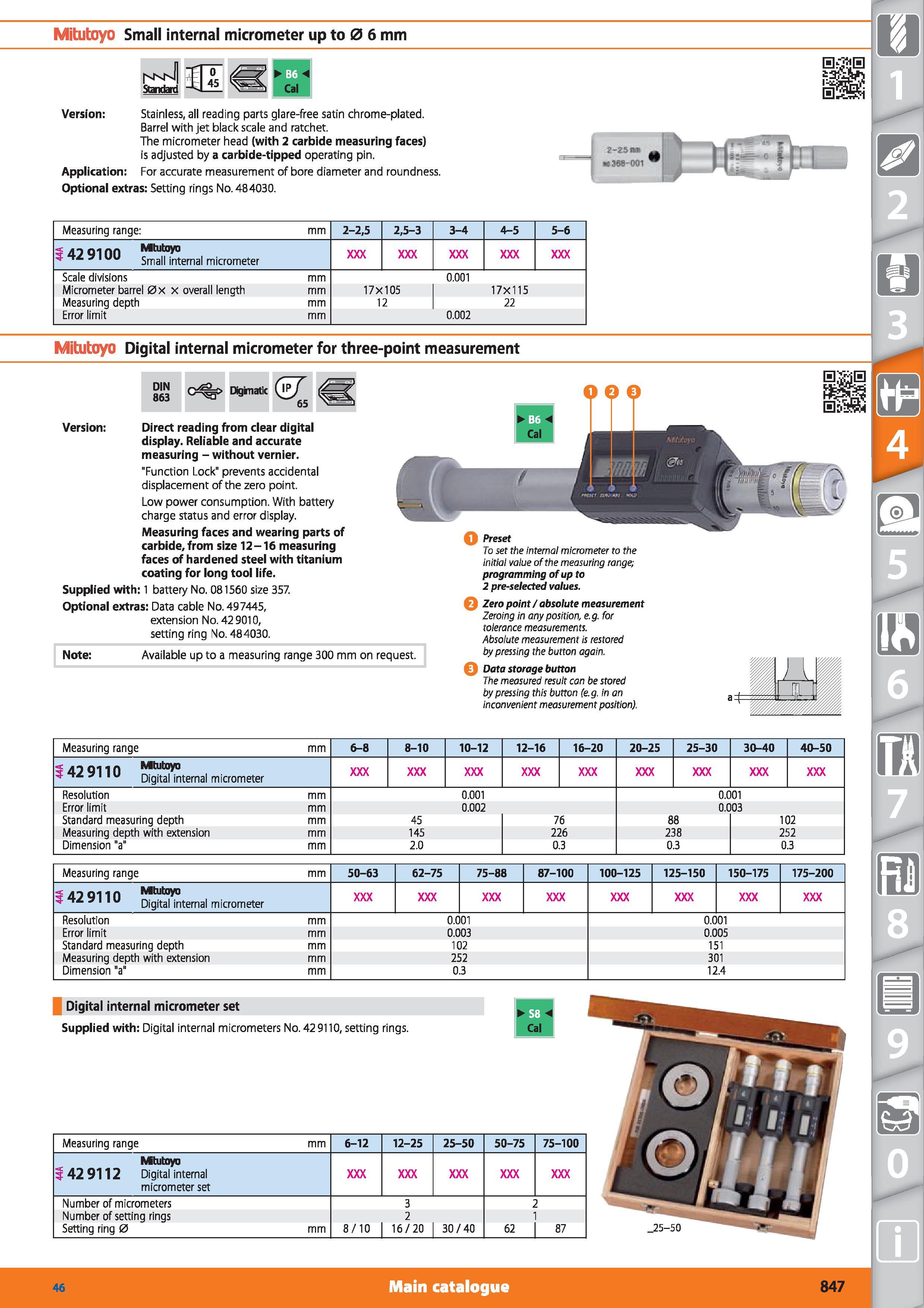

847 Каталог HOFFMANN GROUP 2015 Инструмент режущий слесарный измерительный Стр.847

Каталог HOFFMANN GROUP 2015 Tools Инструменты Ver 46 Стр. 847 0847 ENG Lab2u

Mitutoyo Small internal micrometer up to 0 6 mm Standard Version Stainless, all reading parts glare-free satin chrome-plated. Barrel with jet black scale and ratchet. The micrometer head (with 2 carbide measuring faces) is adjusted by a carbide-tipped operating pin. Application For accurate measurement of bore diameter and roundness. Optional extras Setting rings No. 484030. Measuring range mm 2-2,5 2,5-3 3-4 4-5 5-6 42 gi nn WKutoyo Small internal micrometer Scale divisions mm 0.001 Micrometer barrel 0x x overall length mm 17X105 17X115 Measuring depth mm 12 22 Error limit mm 0.002 Mitutoyo Digital internal micrometer for three-point measurement DIN 863 Digin atic <57 65 Version Direct reading from clear digital display. Reliable and accurate measuring - without vernier. "Function Lock" prevents accidental displacement of the zero point. Low power consumption. With battery charge status and error display. Measuring faces and wearing parts of carbide,from size 12-16 measuring faces of hardened steel with titanium coating for long tool life. Supplied with 1 battery No. 081560 size 357. Optional extras Data cable No. 497445, extension No. 42 9010, setting ring No. 484030. Note Available up to a measuring range 300 mm on request. O Preset To set the internal micrometer to the initial value of the measuring range; programming of up to 2 pre-selected values. Q Zero point / absolute measurement Zeroing in any position, e.g. for tolerance measurements. Absolute measurement is restored by pressing the button again. Q Data storage button The measured result can be stored by pressing this button (eg. in an inconvenient measurement position). Measuring range mm 6-8 8-10 10-12 12-16 16-20 20-25 25-30 30-40 40-50 S 42 9110 Mtuto>'0 Digital internal micrometer Resolution mm 0.001 0.001 Error limit mm 0.002 0.003 Standard measuring depth mm 45 76 88 102 Measuring depth with extension mm 145 226 238 252 Dimension "a" mm 2.0 0.3 0.3 0.3 Measuring range 50-63 62-75 75-88 87-100 S 42 9110 MhJtoyD Digital internal micrometer Resolution Error limit Standard measuring depth Measuring depth with extension Dimension "a" mm 0.001 0.003 102 252 0.3 Digital internal micrometer set Supplied with Digital internal micrometers No. 429110, setting rings. Cal Measuring range mm 6-12 12-25 25-50 50-75 75-100 Mhitoyo 5 42 9112 Digital internal micrometer set Number of micrometers 3 2 Number of setting rings 2 1 Setting ring 0 mm 8/10 16/20 30/40 62 87 Main catalogue Hoffmann Group 46 847
