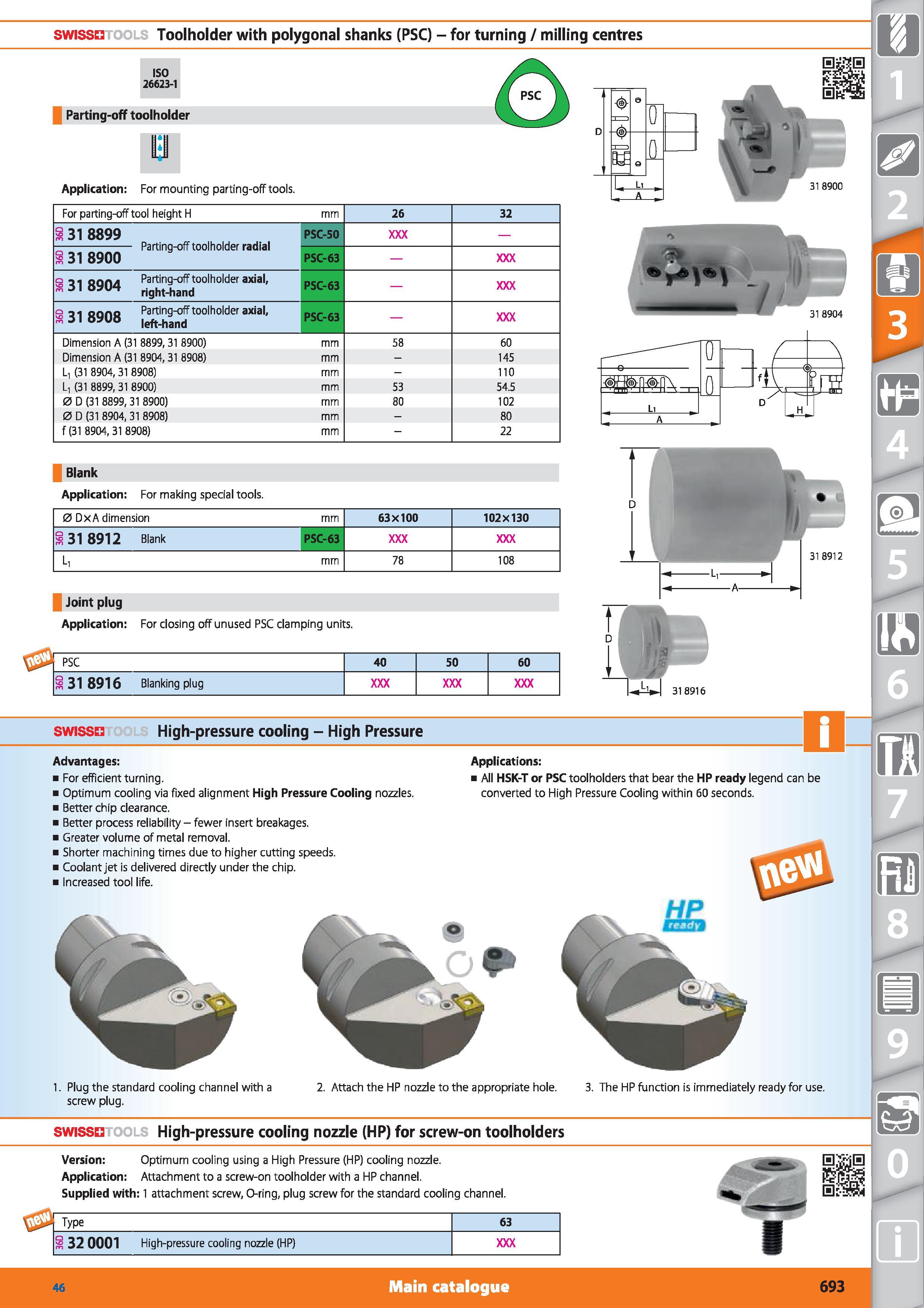

swissn Toolholder with polygonal shanks (PSC) - for turning / milling centres iso 26623-1 Parting-off toolholder Application For mounting parting-off tools. Blank Application For making special tools. Joint plug Application For closing off unused PSC clamping units. For parting-off tool height FI mm 26 32 s 31 8899 PSC-50 s 31 8900 PSC-63 8QIU Parting-off toolholder axial, 8 3 I OSIR right.hanc PSC-63 rji onno Parting-off toolholder axial, 31 8908 left-hand PSC-63 Dimension A (31 8899,31 8900) mm 58 60 Dimension A (31 8904,31 8908) mm - 145 L, (31 8904,31 8908) mm - 110 L, (31 8899,31 8900) mm 53 54.5 0 D (31 8899,31 8900) mm 80 102 0 D (31 8904, 31 8908) mm - 80 f (31 8904,318908) mm - 22 0 DxA dimension mm 63X100 102X130 318912 Blank PSC-63 L, mm 78 108 PSC 40 50 60 318916 Blanking plug SWISSD High-pressure cooling nozzle (HP) for screw-on toolholders 1. Plug the standard cooling channel with a 2. Attach the HP nozzle to the appropriate hole. 3. The HP function is immediately ready for use. screw plug. Advantages For efficient turning. Optimum cooling via fixed alignment High Pressure Cooling nozzles. Better chip clearance. Better process reliability - fewer insert breakages. Greater volume of metal removal. Shorter machining times due to higher cutting speeds. Coolant jet is delivered directly under the chip. Increased tool life. Applications All HSK-T or PSC toolholders that bear the HP ready legend can be converted to High Pressure Cooling within 60 seconds. Version Optimum cooling using a High Pressure (HP) cooling nozzle. Application Attachment to a screw-on toolholder with a HP channel. Supplied with 1 attachment screw, O-ring, plug screw for the standard cooling channel. Type 63 32 0001 High-pressure cooling nozzle (HP) m Main catalogue Hoffmann Group 46 693
