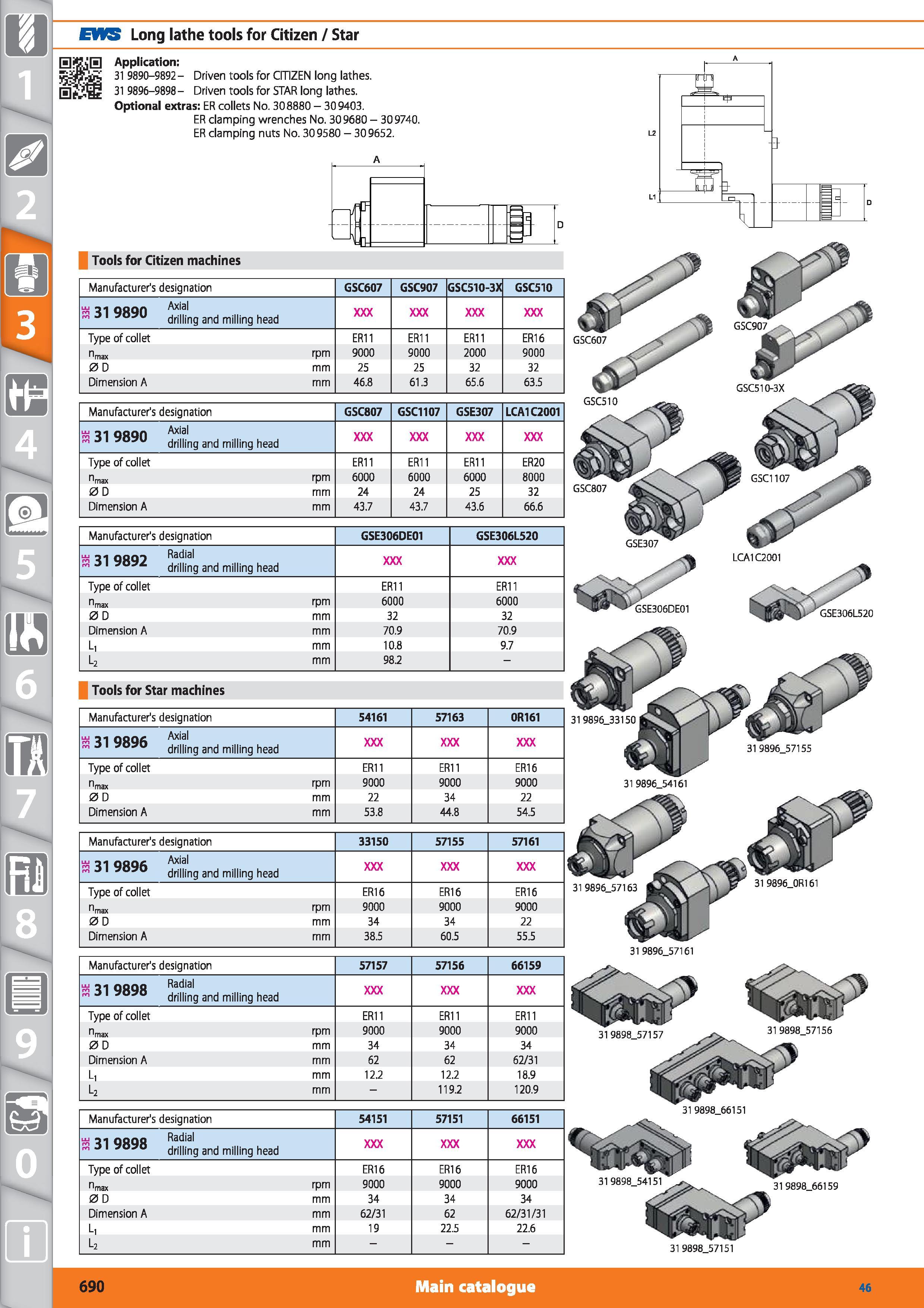

EWS Long lathe tools for Citizen / Star Application 31 9890-9892- Driven tools for CITIZEN long lathes. 31 9896-9898- Driven tools for STAR long lathes. Optional extras ER collets No. 308880 - 309403. ER clamping wrenches No. 309680 - 309740. ER clamping nuts No. 309580 - 309652. t' Tools for Citizen machines ifjii - J Manufacturer's designation GSC607 GSC907 GSC510-3X GSC510 r 31 9890 Axial drilling and milling head Type of collet ER11 ER11 ER11 ER16 rpm 9000 9000 2000 9000 0 D mm 25 25 32 32 Dimension A mm 46.8 61.3 65.6 63.5 Manufacturer's designation GSC807 GSC1107 GSE307 LCA1C2001 r 31 9890 Axial drilling and milling head Type of collet ER11 ER11 ER11 ER20 rpm 6000 6000 6000 8000 0 D mm 24 24 25 32 Dimension A mm 43.7 43.7 43.6 66.6 Manufacturer's designation GSE306DE01 GSE306L520 R 31 9892 Radial drilling and milling head Type of collet ER11 ER11 rpm 6000 6000 0 D mm 32 32 Dimension A mm 70.9 70.9 L, mm 10.8 9.7 L2 mm 98.2 - Tools for Star machines GSE306L520 Manufacturer's designation 54161 57163 0R161 R 31 9896 Axial drilling and milling head Type of collet ER11 ER11 ER16 rpm 9000 9000 9000 0 D mm 22 34 22 Dimension A mm 53.8 44.8 54.5 Manufacturer's designation 33150 57155 57161 R 31 9896 Axial drilling and milling head Type of collet ER16 ER16 ER16 rpm 9000 9000 9000 0 D mm 34 34 22 Dimension A mm 38.5 60.5 55.5 Manufacturer's designation 57157 57156 66159 R 31 9898 Radial drilling and milling head Type of collet ER11 ER11 ER11 rpm 9000 9000 9000 0 D mm 34 34 34 Dimension A mm 62 62 62/31 L, mm 12.2 12.2 18.9 l2 mm - 119.2 120.9 31 9896_57161 Manufacturer's designation 54151 57151 66151 R 31 9898 Radial drilling and milling head Type of collet ER16 ER16 ER16 rpm 9000 9000 9000 0 D mm 34 34 34 Dimension A mm 62/31 62 62/31/31 L, mm 19 22.5 22.6 l2 mm - 31 9896_33150 31 9896_57155 31 9896_54161 31 9896_0R161 31 9896_57163 31 9898_66151 31 9898_57151 319898_57157 31 9898_57156 690 Main catalogue Hoffmann Group 46
