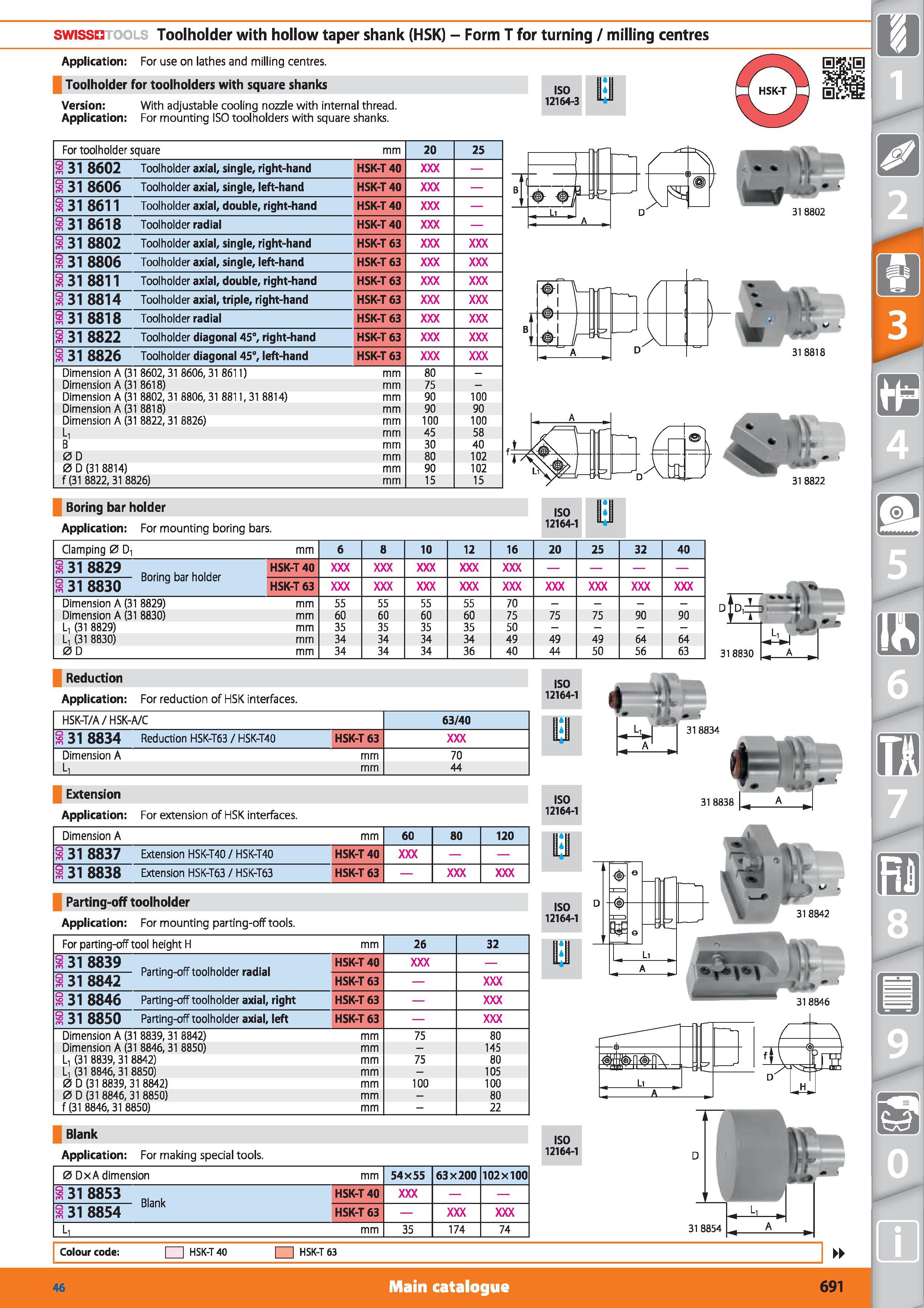

swissn Toolholder with hollow taper shank (HSK) - Form T for turning / milling centres Application For use on lathes and milling centres. Toolholder for toolholders with square shanks Version With adjustable cooling nozzle with internal thread. Application For mounting ISO toolholders with square shanks. For toolholder square mm 20 25 31 8602 Toolholder axial, single, right-hand HSK-T 40 31 8606 Toolholder axial, single, left-hand HSK-T 40 318611 Toolholder axial, double, right-hand HSK-T 40 s 31 8618 Toolholder radial HSK-T 40 31 8802 Toolholder axial, single, right-hand HSK-T 63 31 8806 Toolholder axial, single, left-hand HSK-T 63 31 8811 Toolholder axial, double, right-hand HSK-T 63 31 8814 Toolholder axial, triple, right-hand HSK-T 63 31 8818 Toolholder radial HSK-T 63 31 8822 Toolholder diagonal 45°, right-hand HSK-T 63 31 8826 Toolholder diagonal 45°, left-hand HSK-T 63 Dimension A (31 8602,31 8606,31 8611) mm 80 - Dimension A (31 8618) mm 75 - Dimension A (31 8802,31 8806,31 8811,31 8814) mm 90 100 Dimension A (31 8818) mm 90 90 Dimension A (31 8822,31 8826) mm 100 100 L, mm 45 58 B mm 30 40 00 mm 80 102 0 D (31 8814) mm 90 102 f (31 8822, 31 8826) mm 15 15 Boring bar holder Application For mounting boring bars. Clamping 0 D, mm 6 8 10 12 16 20 25 32 40 31 8829 HSK-T 40 318830 ““ M HSK-T 63 Dimension A (31 8829) mm 55 55 55 55 70 Dimension A (31 8830) mm 60 60 60 60 75 75 75 90 90 L, (31 8829) mm 35 35 35 35 50 L, (31 8830) mm 34 34 34 34 49 49 49 64 64 0 D mm 34 34 34 36 40 44 50 56 63 Application For reduction of HSK interfaces. HSK-T/A / HSK-A/C 63/40 31 8834 Reduction HSK-T63 / HSK-T40 HSK-T 63 Dimension A mm 70 L, mm 44 Extension Application For extension of HSK interfaces. Dimension A mm 60 80 120 31 8837 Extension HSK-T40 / HSK-T40 HSK-T 40 31 8838 Extension HSK-T63 / HSK-T63 HSK-T 63 Parting-off toolholder For parting-off tool height H mm 26 32 HSK-T 40 S 31 8842 HSK-T 63 31 8846 Parting-off toolholder axial, right HSK-T 63 31 8850 Parting-off toolholder axial, left HSK-T 63 Dimension A (31 8839,31 8842) mm 75 80 Dimension A (31 8846,31 8850) mm - 145 L, (31 8839,31 8842) mm 75 80 L, (31 8846,31 8850) mm 105 0 D (31 8839, 31 8842) mm 100 100 0 D (31 8846,31 8850) mm - 80 f (31 8846, 31 8850) mm - 22 Blank Application L1 A For making special tools. ISO 12164-1 0 DxA dimension mm 54x55 63x200 102x100 S 31 8853 Blank HSK-T 40 31 8854 HSK-T 63 L, mm 35 174 74 Colour code HSK-T 40 HSK-T 63 m 46 Main catalogue
