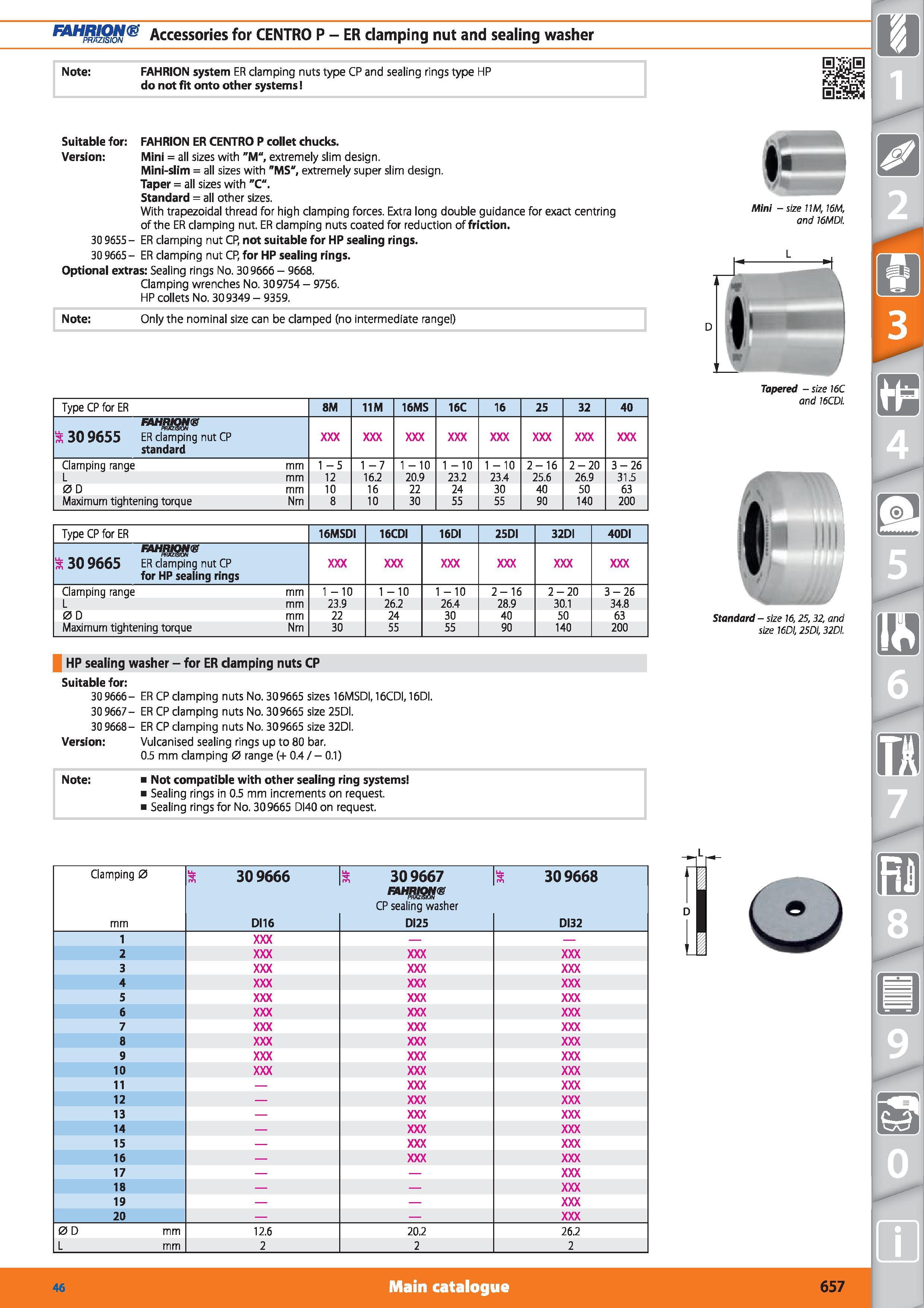

Accessories for CENTRO P - ER clamping nut and sealing washer Note FAHRION system ER clamping nuts type CP and sealing rings type HP do not fit onto other systems Suitable for FAHRION ER CENTRO P collet chucks. Version Mini all sizes with "M", extremely slim design. Mini-slim all sizes with "MS", extremely super slim design. Taper all sizes with "C". Standard all other sizes. With trapezoidal thread for high clamping forces. Extra long double guidance for exact centring of the ER clamping nut. ER clamping nuts coated for reduction of friction. 30 9655 - ER clamping nut CP, not suitable for HP sealing rings. 30 9665 - ER clamping nut CP, for HP sealing rings. Optional extras Sealing rings No. 309666 - 9668. Clamping wrenches No. 30 9754 - 9756. HP collets No. 309349 - 9359. Note Only the nominal size can be clamped (no intermediate range ) Type CP for ER 8M 11M 16MS 16C 16 25 32 40 nuffugw S 30 9655 ER damping nut CP standard Clamping range mm 1 -5 1 -7 1 - 10 1 -10 1 - 10 2-16 2-20 3-26 L mm 12 16.2 20.9 23.2 23.4 25.6 26.9 31.5 0 D mm 10 16 22 24 30 40 50 63 Maximum tightening torque Nm 8 10 30 55 55 90 140 200 Tapered - size 16C and 16CDI. Type CP for ER 16MSDI 16CDI 16DI 25DI 32DI 40DI niHfugw S 30 9665 ER damping nut CP for HP sealing rings Clamping range mm 1 -10 1 -10 1 -10 2-16 2-20 3-26 L mm 23.9 26.2 26.4 28.9 30.1 34.8 0 D mm 22 24 30 40 50 63 Maximum tightening torque Nm 30 55 55 90 140 200 Standard - size 16,25,32, and size 16DI, 25DI, 32DI. HP sealing washer - for ER clamping nuts CP Suitable for 30 9666- ER CP clamping nuts No. 309665 sizes 16MSDI, 16CDI, 16DI. 309667- ER CP clamping nuts No. 309665 size 25DI. 30 9668- ER CP clamping nuts No. 309665 size 32DI. Version Vulcanised sealing rings up to 80 bar. 0.5 mm clamping 0 range (+ 0.4 / - 0.1) Note Not compatible with other sealing ring systems Sealing rings in 0.5 mm increments on request. Sealing rings for No. 309665 DI40 on request. a 6 Clamping 0 mm 309666 DI16 a 309667 MHHICMy PRXZISION CP sealing washer DI25 a 309668 DI32 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 0 D mm 12.6 20.2 26.2 L mm 2 2 2 Main catalogue Hoffmann Group 46 657
