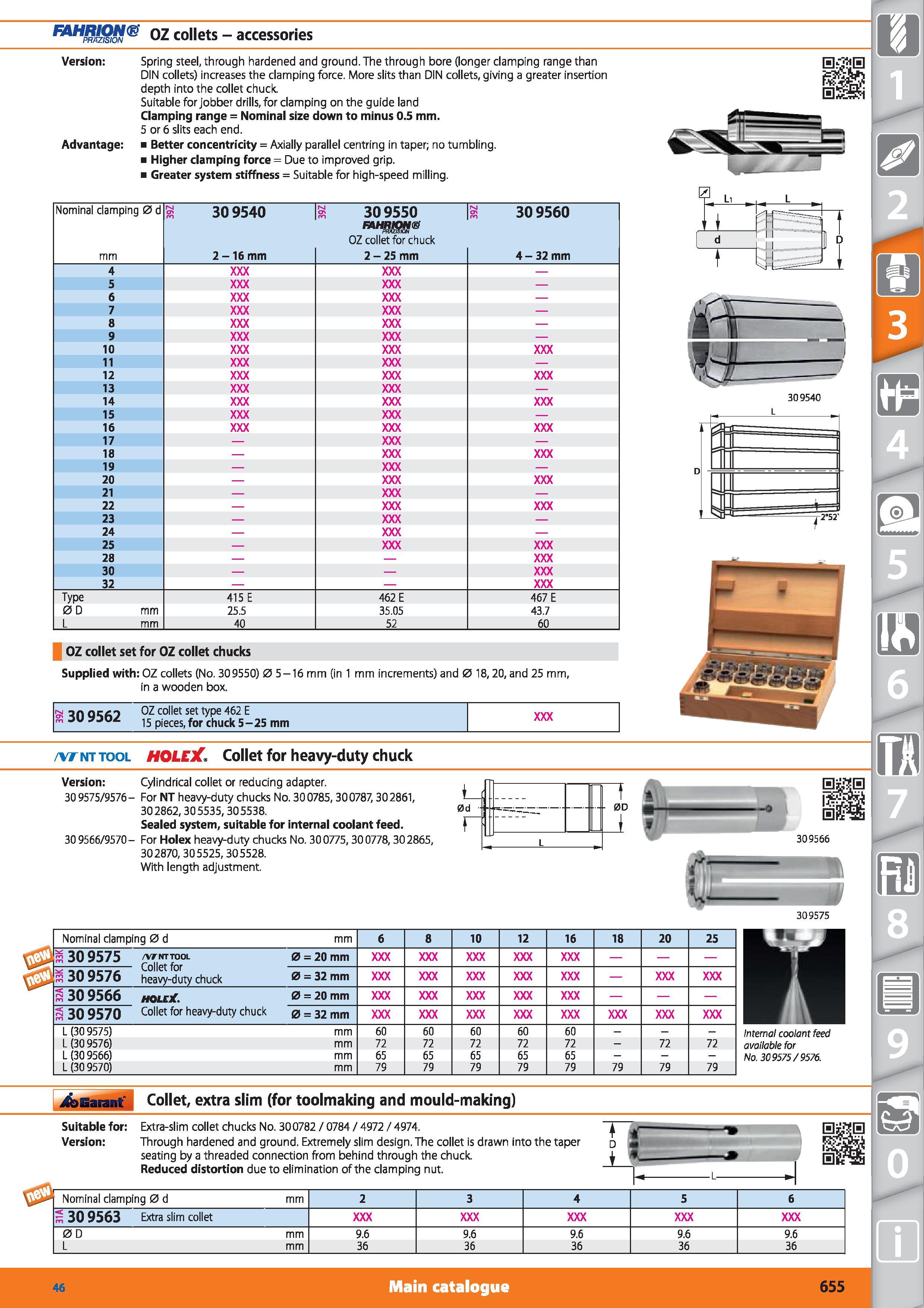

OZ collets - accessories Version Spring steel, through hardened and ground. The through bore (longer clamping range than DIN collets) increases the clamping force. More slits than DIN collets, giving a greater insertion depth into the collet chuck. Suitable for jobber drills, for clamping on the guide land Clamping range Nominal size down to minus 0.5 mm. 5 or 6 slits each end. Advantage Better concentricity Axially parallel centring in taper; no tumbling. Higher clamping force Due to improved grip. Greater system stiffness Suitable for high-speed milling. Nominal clamping 0 d mm s 30 9540 2-16 mm s 309550 HUmiQNlB PRAZiSION OZ collet for chuck 2-25 mm 309560 4-32 mm 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 28 30 32 Type 415 E 462 E 467 E 0 D mm 25.5 35.05 43.7 L mm 40 52 60 OZ collet set for OZ collet chucks Supplied with OZ collets (No. 309550) 0 5-16 mm (in 1 mm increments) and 0 18,20, and 25 mm, in a wooden box. I OZ collet set type 462 E 15 pieces, for chuck 5-25 mm /vr nt tool HOLEX Collet for heavy-duty chuck Version 309575/9576- 309566/9570- Cylindrical collet or reducing adapter. For NT heavy-duty chucks No. 300785,300787,302861, 302862,305535,305538. Sealed system, suitable for internal coolant feed. For Holex heavy-duty chucks No. 300775,300778,302865, 302870,305525,305528. With length adjustment. L 0d r Nominal clamping 0 d mm 6 8 10 12 16 18 20 25 s 30 9575 /VT NT TOOL Collet for heavy-duty chuck 0 20 mm s 30 9576 0 32 mm s 30 9566 HOLE3C. 0 20 mm s 30 9570 Collet for heavy-duty chuck 0 32 mm L (30 9575) mm 60 60 60 60 60 - L (30 9576) mm 72 72 72 72 72 - 72 72 L (30 9566) mm 65 65 65 65 65 - L (30 9570) mm 79 79 79 79 79 79 79 79 j&Garant" j Collet, extra slim (for toolmaking and mould-making) Suitable for Extra-slim collet chucks No. 300782 / 0784 / 4972 / 4974. Version Through hardened and ground. Extremely slim design. The collet is drawn into the taper seating by a threaded connection from behind through the chuck 1 Reduced distortion due to elimination of the clamping nut. Nominal clamping 0 d mm 2 3 4 5 6 s 30 9563 Extra slim collet 00 mm 9.6 9.6 9.6 9.6 9.6 L mm 36 36 36 36 36 Main catalogue Hoffmann Group 46 655
