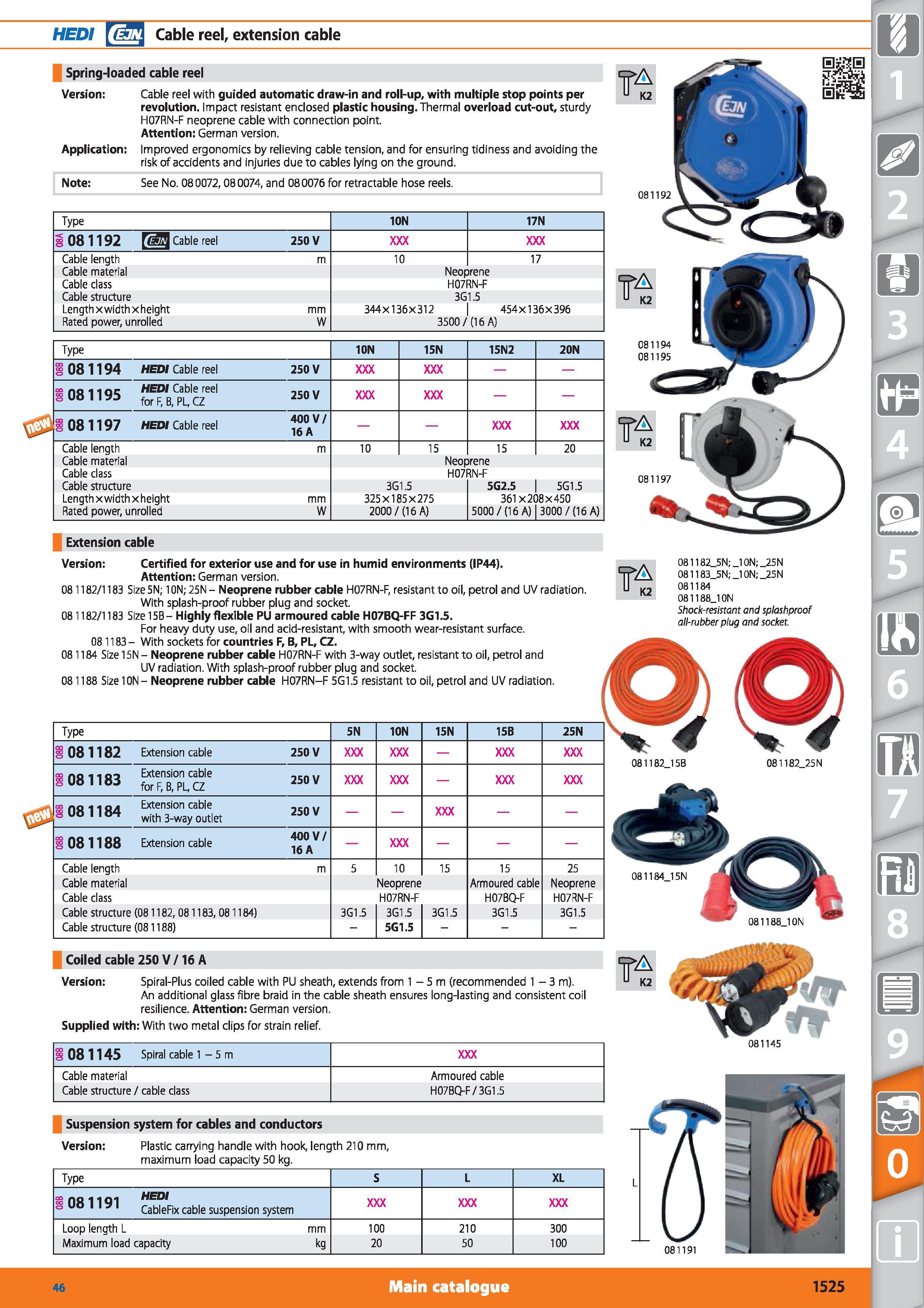

HEDI im Cable reel, extension cable Spring-loaded cable reel Version Application Cable reel with guided automatic draw-in and roll-up, with multiple stop points per revolution. Impact resistant enclosed plastic housing. Thermal overload cut-out, sturdy H07RN-F neoprene cable with connection point. Attention German version. Improved ergonomics by relieving cable tension, and for ensuring tidiness and avoiding the risk of accidents and injuries due to cables lying on the ground. Note See No. 080072,080074, and 080076 for retractable hose reels. Type ION 17N S 081192 X0BL Cable reel 250 V Cable length m 10 17 Cable material Neoprene Cable class H07RN-F Cable structure 3G1.5 Length x width x height mm 344x136x312 454x136x396 Rated power, unrolled W 3500/(16 A) Type 10N 15N 15N2 20N 1081194 HEDI Cable reel 250 V 1081195 HEDI Cable reel for F, B, PL, CZ 250 V 081197 HEDI Cable reel 400 V/ 16 A Cable length m 10 15 15 20 Cable material Neoprene Cable class H07RN-F Cable structure 3G1.5 5G2.5 5G1.5 Length x width x height mm 325x185x275 361x208x450 Rated power, unrolled W 2000/(16 A) 5000/(16 A) 3000/(16 A) Extension cable Version Certified for exterior use and for use in humid environments (IP44). Attention German version. 081182/1183 Size5N; 10N; 25N Neoprene rubber cable H07RN-F, resistant to oil, petrol and UV radiation. With splash-proof rubber plug and socket. 081182/1183 Size 15B- Highly flexible PU armoured cable H07BQ-FF 3G1.5. For heavy duty use, oil and acid-resistant, with smooth wear-resistant surface. 08 1183 - With sockets for countries F, B, PL, CZ. 081184 Size 15N - Neoprene rubber cable H07RN-F with 3-way outlet, resistant to oil, petrol and UV radiation. With splash-proof rubber plug and socket. 081188 Size 10N - Neoprene rubber cable H07RN-F 5G1.5 resistant to oil, petrol and UV radiation. Coiled cable 250 V /16 A Version Spiral-Plus coiled cable with PU sheath, extends from 1 - 5 m (recommended 1 - 3 m). An additional glass fibre braid in the cable sheath ensures long-lasting and consistent coil resilience. Attention German version. Supplied with With two metal clips for strain relief. Suspension system for cables and conductors Version Plastic carrying handle with hook, length 210 mm, maximum load capacity 50 kg. 081182_5N; _10N;_25N 081183_5N; _10N;_25N 081184 081188_1ON Shock-resistant and splashproof all-rubber plug and socket. Type 5N ION 15N 15B 25N 1081182 Extension cable 250 V 1081183 Extension cable for F, B, PL, CZ 250 V 1081184 Extension cable with 3-way outlet 250 V 1081188 Extension cable 400V/ 16 A Cable length m 5 10 15 15 25 Cable material Neoprene Armoured cable Neoprene Cable class H07RN-F H07BQ-F H07RN-F Cable structure (081182,081183,081184) 3G1.5 3G1.5 3G1.5 3G1.5 3G1.5 Cable structure (081188) - 5G1.5 - 1 08 1145 Spiral cable 1 - 5 m Cable material Armoured cable Cable structure / cable class H07BQ-F/3G1.5 Type S L XL 1081191 HEDI CableFix cable suspension system Loop length L mm 100 210 300 Maximum load capacity kg 20 50 100 Main catalogue Hoffmann Group 46 1525
