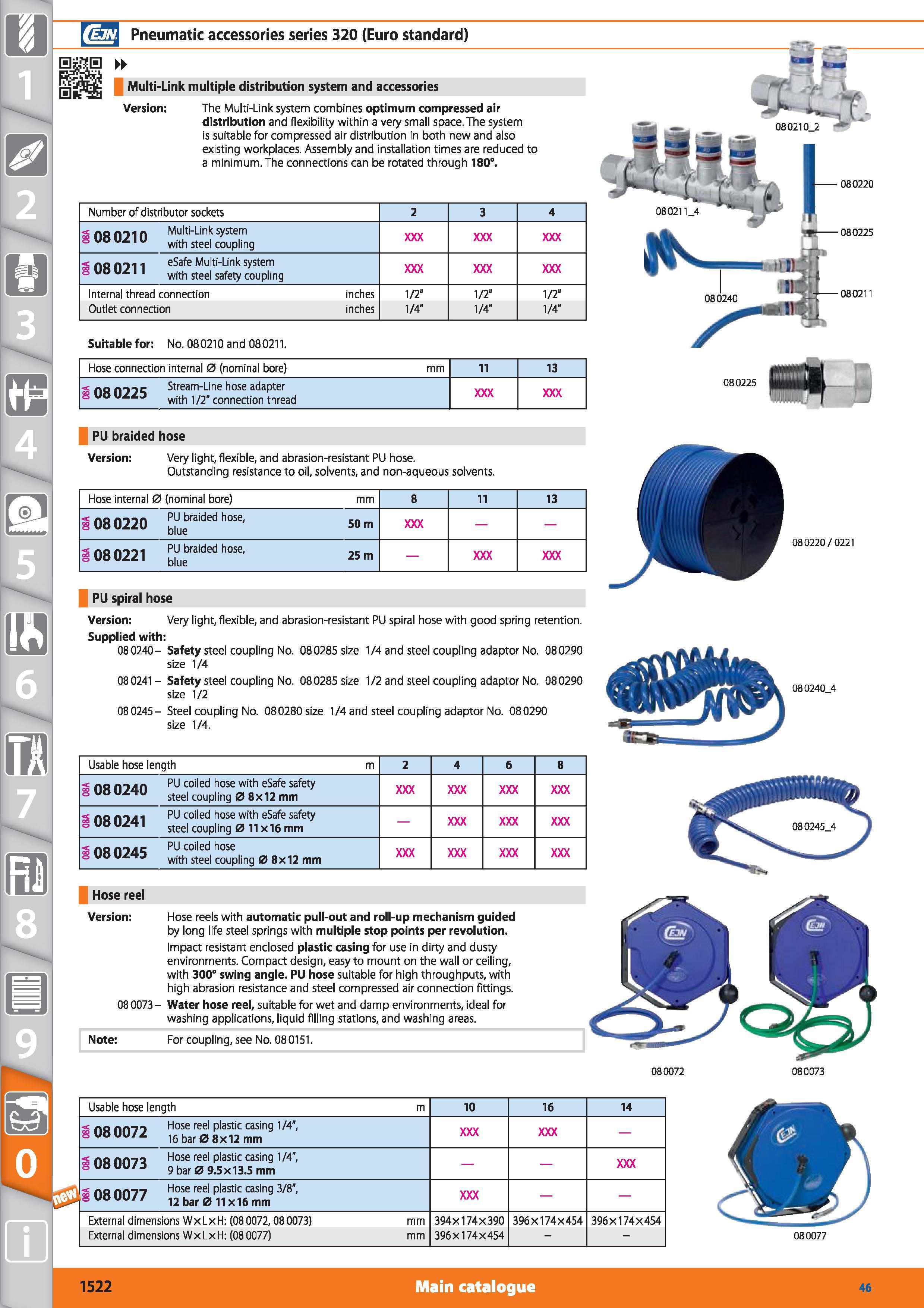

Pneumatic accessories series 320 (Euro standard) Multi-Link multiple distribution system and accessories Version The Multi-Link system combines optimum compressed air distribution and flexibility within a very small space. The system is suitable for compressed air distribution in both new and also existing workplaces. Assembly and installation times are reduced to a minimum. The connections can be rotated through 180°. Number of distributor sockets 2 3 4 08 0210 Multi-Link system with steel coupling 108 0211 eSafe Multi-Link system with steel safety coupling Internal thread connection inches 1/2" 1/2" 1/2" Outlet connection inches 1/4” 1/4” 1/4- Suitable for No. 080210 and 080211. Hose connection internal 0 (nominal bore) mm 11 13 t oo nooc Stream-Line hose adapter s with 1/2" connection thread PU braided hose Version Very light, flexible, and abrasion-resistant PU hose. Outstanding resistance to oil, solvents, and non-aqueous solvents. Hose internal 0 (nominal bore) mm 8 11 13 080220 PU braided hose, blue 50 m 1080221 PU braided hose, blue 25 m PU spiral hose Version Very light, flexible, and abrasion-resistant PU spiral hose with good spring retention. Supplied with 080240- Safety steel coupling No. 080285 size 1/4 and steel coupling adaptor No. 080290 size 1/4 080241 - Safety steel coupling No. 080285 size 1/2 and steel coupling adaptor No. 080290 size 1/2 080245- Steel coupling No. 080280size 1/4 and steel coupling adaptor No. 080290 size 1/4. 080220 / 0221 080240_4 Usable hose length m 2 4 6 8 1080240 PU coiled hose with eSafe safety steel coupling 0 8x12 mm 1080241 PU coiled hose with eSafe safety steel coupling 0 11 x 16 mm 1080245 PU coiled hose with steel coupling 0 8x12 mm Hose reel Version 080073- Hose reels with automatic pull-out and roll-up mechanism guided by long life steel springs with multiple stop points per revolution. Impact resistant enclosed plastic casing for use in dirty and dusty environments. Compact design, easy to mount on the wall or ceiling, with 300° swing angle. PU hose suitable for high throughputs, with high abrasion resistance and steel compressed air connection fittings. Water hose reel, suitable for wet and damp environments, ideal for washing applications, liquid filling stations, and washing areas. Note For coupling, see No. 080151. 080072 080073 m Usable hose length m 10 16 14 080072 Hose reel plastic casing 1/4", 16 bar 0 8x12 mm 080073 Hose reel plastic casing 1/4", 9 bar 0 9.5x13.5 mm 080077 Hose reel plastic casing 3/8", 12 bar 0 11x16 mm External dimensions WxLxH (080072,080073) mm 394X174 X 390 396X174X454 396X174X454 External dimensions WxLxH (080077) mm 396x174x454 08 0225 1522 Main catalogue Hoffmann Group 46
