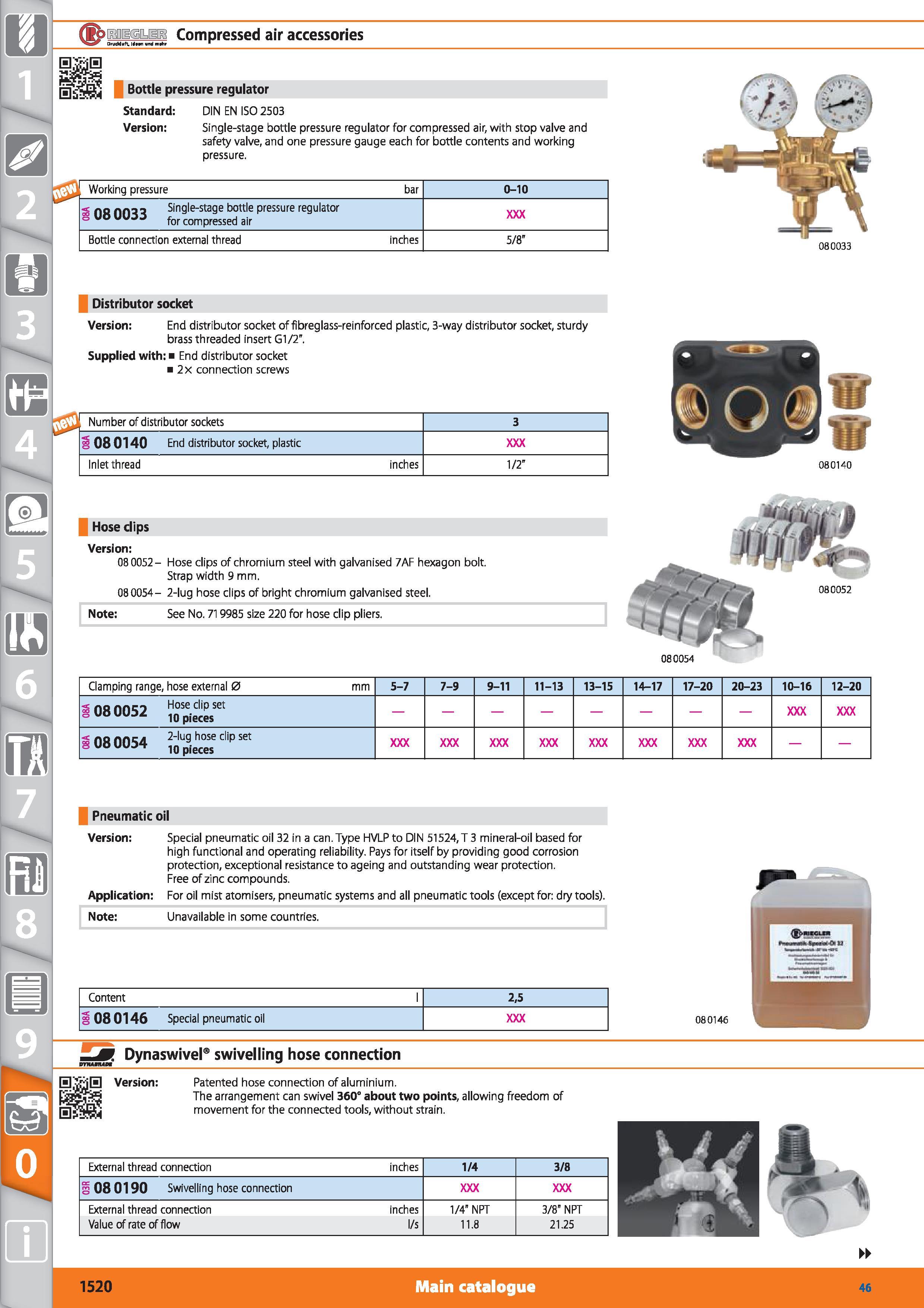

1 pE i uis Compressed air accessories Drudduft Irinfi und imtir E; iS Bottle pressure regulator Standard DIN EN ISO 2503 Version Single-stage bottle pressure regulator for compressed air, with stop valve and safety valve, and one pressure gauge each for bottle contents and working pressure. Working pressure bar 0-10 < no nnaa Single-stage bottle pressure regulator for compressed air Bottle connection external thread inches 5/8" 080033 Distributor socket Version End distributor socket of fibreglass-reinforced plastic, 3-way distributor socket, sturdy brass threaded insert G1/2”. Supplied with End distributor socket 2x connection screws Number of distributor sockets 3 08 0140 End distributor socket, plastic Inlet thread inches 1/2" 080140 Hose clips Version 08 0052- Hose clips of chromium steel with galvanised 7AF hexagon bolt. Strap width 9 mm. 080054 - 2-lug hose clips of bright chromium galvanised steel. Note See No. 719985 size 220 for hose clip pliers. F c> 080054 Clamping range, hose external 0 mm 5-7 7-9 9-11 11-13 13-15 14-17 17-20 20-23 10-16 12-20 1080052 Hose clip set 10 pieces i 08 0054 2-lug hose clip set 10 pieces Pneumatic oil Version Application Special pneumatic oil 32 in a can.Type HVLP to DIN 51524.T3 mineral-oil based for high functional and operating reliability. Pays for itself by providing good corrosion protection, exceptional resistance to ageing and outstanding wear protection. Free of zinc compounds. For oil mist atomisers, pneumatic systems and all pneumatic tools (except for dry tools). Note Unavailable in some countries. Content I 2,5 08 0146 Special pneumatic oil 080146 Dynaswivel swivelling hose connection HXjS Version Patented hose connection of aluminium. ragrfiS The arrangement can swivel 360° about two points, allowing freedom of movement for the connected tools, without strain. External thread connection inches 1/4 3/8 3 08 0190 Swivelling hose connection External thread connection inches 1/4” NPT 3/8” NPT Value of rate of flow I/s 11.8 21.25 1520 Main catalogue Hoffmann Group 46
