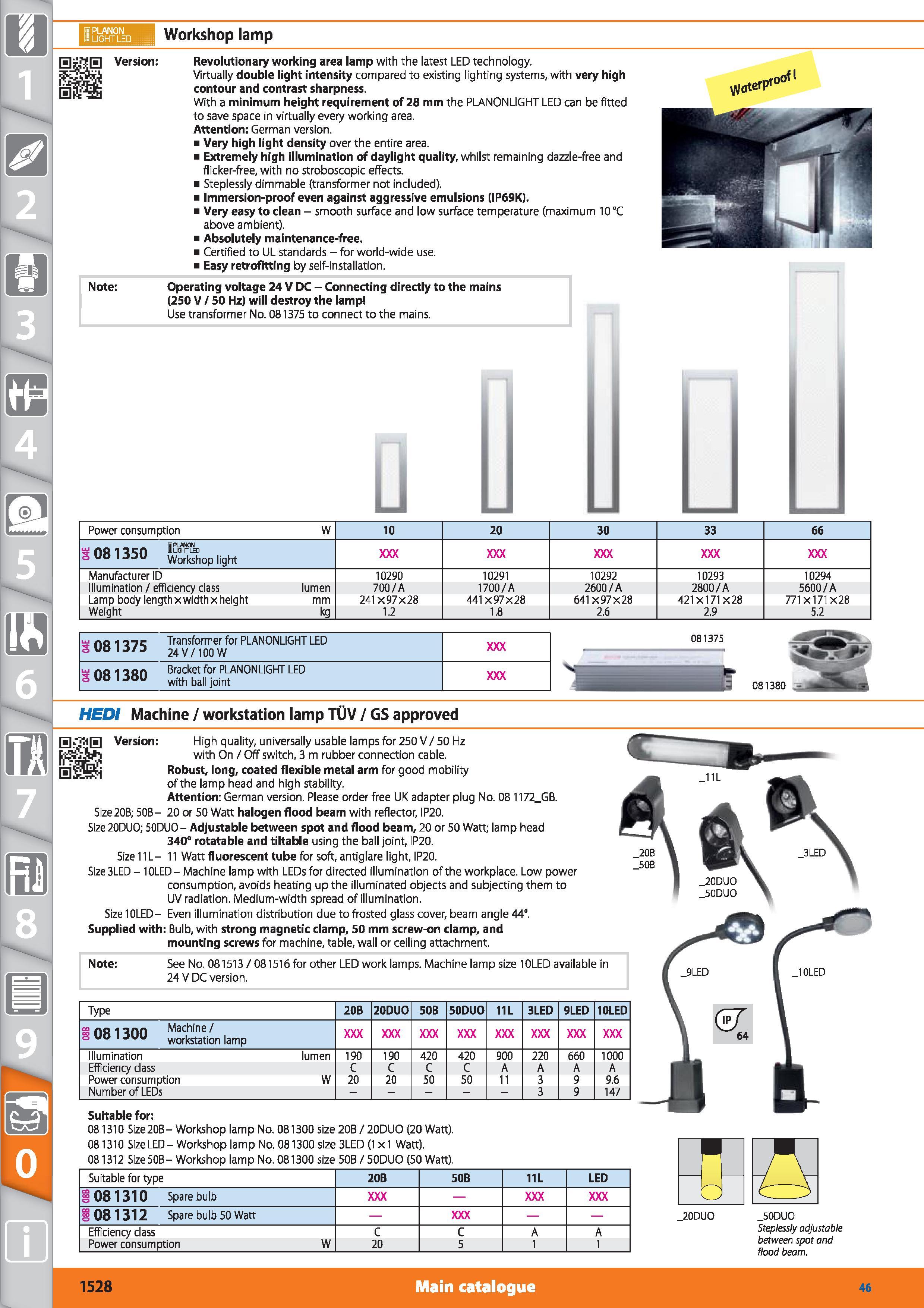

1 Workshop lamp Revolutionary working area lamp with the latest LED technology. Virtually double light intensity compared to existing lighting systems, with very high contour and contrast sharpness. With a minimum height requirement of 28 mm the PLANONLIGHT LED can be fitted to save space in virtually every working area. Attention German version. Very high light density over the entire area. Extremely high illumination of daylight quality, whilst remaining dazzle-free and flicker-free, with no stroboscopic effects. Steplessly dimmable (transformer not included). Immersion-proof even against aggressive emulsions (IP69K). Very easy to clean - smooth surface and low surface temperature (maximum 10 °C above ambient). Absolutely maintenance-free. Certified to UL standards - for world-wide use. Easy retrofitting by self-installation. Note Operating voltage 24 V DC - Connecting directly to the mains (250 V/50 Hz) will destroy the lamp Use transformer No. 081375 to connect to the mains. Q Power consumption W s081350 Workshop light Manufacturer ID Illumination / efficiency class lumen Lamp body lengthxwidthxheight mm Weight _kg 10 10290 700/A 241x97x28 1.2 20 10291 1700/A 441x97 x 28 1.8 30 10292 2600/A 641x97 x 28 2.6 33 10293 2800/A 421x171x28 2.9 66 10294 5600/A 771x171x28 5.2 nn 1 Transformer for PLANONLIGHT LED 3UOI3/3 24 V/100 W s no 1 aun Bracket for PLANONLIGHT LED S WO 1 JOU w t 1 jrjgH j0jnt 081375 HEDI Machine / workstation lamp TUV / GS approved Version High quality, universally usable lamps for 250 V/50 Hz with On / Off switch, 3 m rubber connection cable. Robust, long, coated flexible metal arm for good mobility of the lamp head and high stability. Attention German version. Please order free UK adapter plug No. 08 1172_GB. Size 20B; 50B - 20 or 50 Watt halogen flood beam with reflector, IP20. Size 20DUO; 50DUO - Adjustable between spot and flood beam, 20 or 50 Watt; lamp head 340° rotatable and tiltable using the ball joint, IP20. Size 11L- 11 Watt fluorescent tube for soft, antiglare light, IP20. Size3LED - 10LED- Machine lamp with LEDs for directed illumination of the workplace. Low power consumption, avoids heating up the illuminated objects and subjecting them to UV radiation. Medium-width spread of illumination. Size 10LED- Even illumination distribution due to frosted glass cover, beam angle 44°. Supplied with Bulb, with strong magnetic clamp, 50 mm screw-on clamp, and mounting screws for machine, table, wall or ceiling attachment. Note See No. 081513/081516 for other LED work lamps. Machine lamp size 10LED available in 24 V DC version. Type 20B 20DUO 50B 50DUO 11L 3LED 9LED 10LED no 1 inn Machine/ o Uo 3UU workstation lamp Illumination lumen 190 190 420 420 900 220 660 1000 Efficiency class C A A A A Power consumption W 20 20 50 50 11 3 9 9.6 Number of LEDs - 3 9 147 Suitable for 081310 Size 20B - Workshop lamp No. 081300 size 20B / 20DUO (20 Watt). 081310 Size LED - Workshop lamp No. 081300 size 3LED (1x1 Watt). 081312 Size 50B - Workshop lamp No. 081300 size 50B / 50DUQ (50 Watt). Suitable for type 20B 50B 11L LED 08 1310 Spare bulb 1 08 1312 Spare bulb 50 Watt Efficiency class c c A A Power consumption W 20 5 1 1 _20DUO _50DUO Steplessly adjustable between spot and flood beam. 081380 1528 Main catalogue Hoffmann Group 46
