1311 Каталог HOFFMANN GROUP 2015 Инструмент режущий слесарный измерительный Стр.1311

Каталог HOFFMANN GROUP 2015 Tools Инструменты Ver 46 Стр. 1311 1311 ENG Lab2u

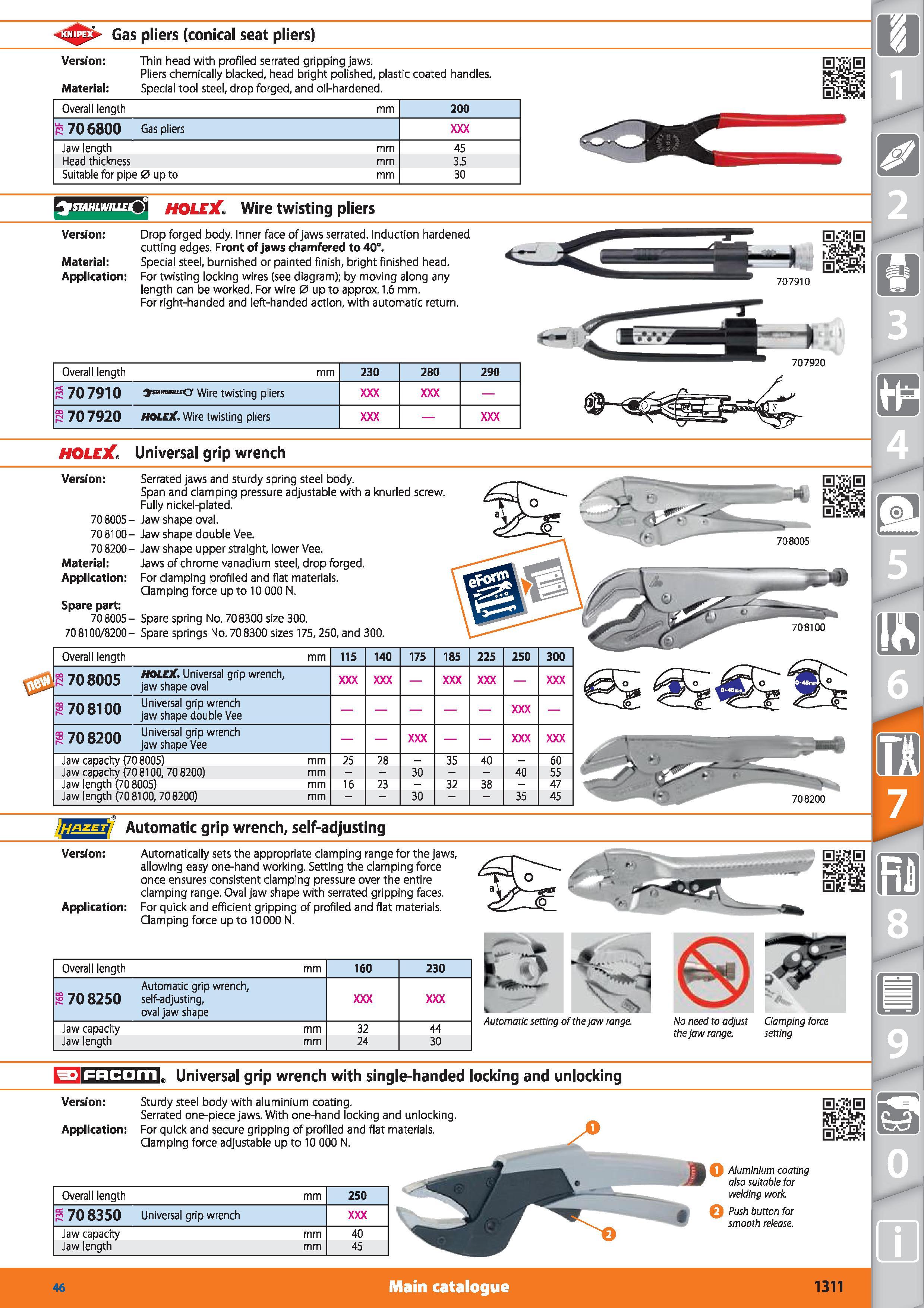

Gas pliers (conical seat pliers) Version Thin head with profiled serrated gripping jaws. Pliers chemically blacked, head bright polished, plastic coated handles. Material Special tool steel, drop forged, and oil-hardened. Overall length mm 200 ft 70 6800 Gas pliers Jaw length mm 45 Head thickness mm 3.5 Suitable for pipe 0 up to mm 30 stahlwille(J HOLEX Wire twisting pliers Version Drop forged body. Inner face of jaws serrated. Induction hardened cutting edges. Front of jaws chamfered to 40°. Material Special steel, burnished or painted finish, bright finished head. Application For twisting locking wires (see diagram); by moving along any length can be worked. For wire 0 up to approx. 1.6 mm. For right-handed and left-handed action, with automatic return. Overall length mm 230 280 290 a 707910 jramwimO' Wire twisting pliers S 70 7920 holeX. Wire twisting pliers HOLEX Universal grip wrench Version Serrated jaws and sturdy spring steel body. Span and clamping pressure adjustable with a knurled screw. Fully nickel-plated. 70 8005 - Jaw shape oval. 708100- Jaw shape double Vee. 70 8200- Jaw shape upper straight, lower Vee. Material Jaws of chrome vanadium steel, drop forged. Application For clamping profiled and flat materials. Clamping force up to 10 000 N. Spare part 70 8005- Spare spring No. 708300 size 300. 708100/8200- Spare springs No. 708300 sizes 175,250, and 300. Overall length mm 115 140 175 185 225 250 300 eg -jn gnnr holeX. Universal grip wrench, jaw shape oval m ai nn Universal grip wrench N jaw shape double Vee m 7n qtfin Universal grip wrench /u jaw shape Vee Jaw capacity (70 8005) mm X 28 - 35 40 - 60 Jaw capacity (70 8100,70 8200) mm 30 40 55 Jaw length (70 8005) mm 16 23 32 38 47 Jaw length (708100,708200) mm 30 35 45 Automatic grip wrench, self-adjusting Version Automatically sets the appropriate clamping range for the jaws, allowing easy one-hand working. Setting the clamping force once ensures consistent clamping pressure over the entire clamping range. Oval jaw shape with serrated gripping faces. Application For quick and efficient gripping of profiled and flat materials. Clamping force up to 10000 N. Overall length mm 160 230 Automatic grip wrench, S 70 8250 self-adjusting, oval jaw shape Jaw capacity mm 32 44 Jaw length mm 24 30 pncom Universal grip wrench with single-handed locking and unlocking Version Sturdy steel body with aluminium coating. Serrated one-piece jaws. With one-hand locking and unlocking Application For quick and secure gripping of profiled and flat materials. Clamping force adjustable up to 10 000 N. Overall length mm 250 ft 70 8350 Universal grip wrench Jaw capacity mm 40 Jaw length mm 45 Aluminium coating also suitable for welding work Push button for smooth release. Main catalogue Hoffmann Group 46 1311
