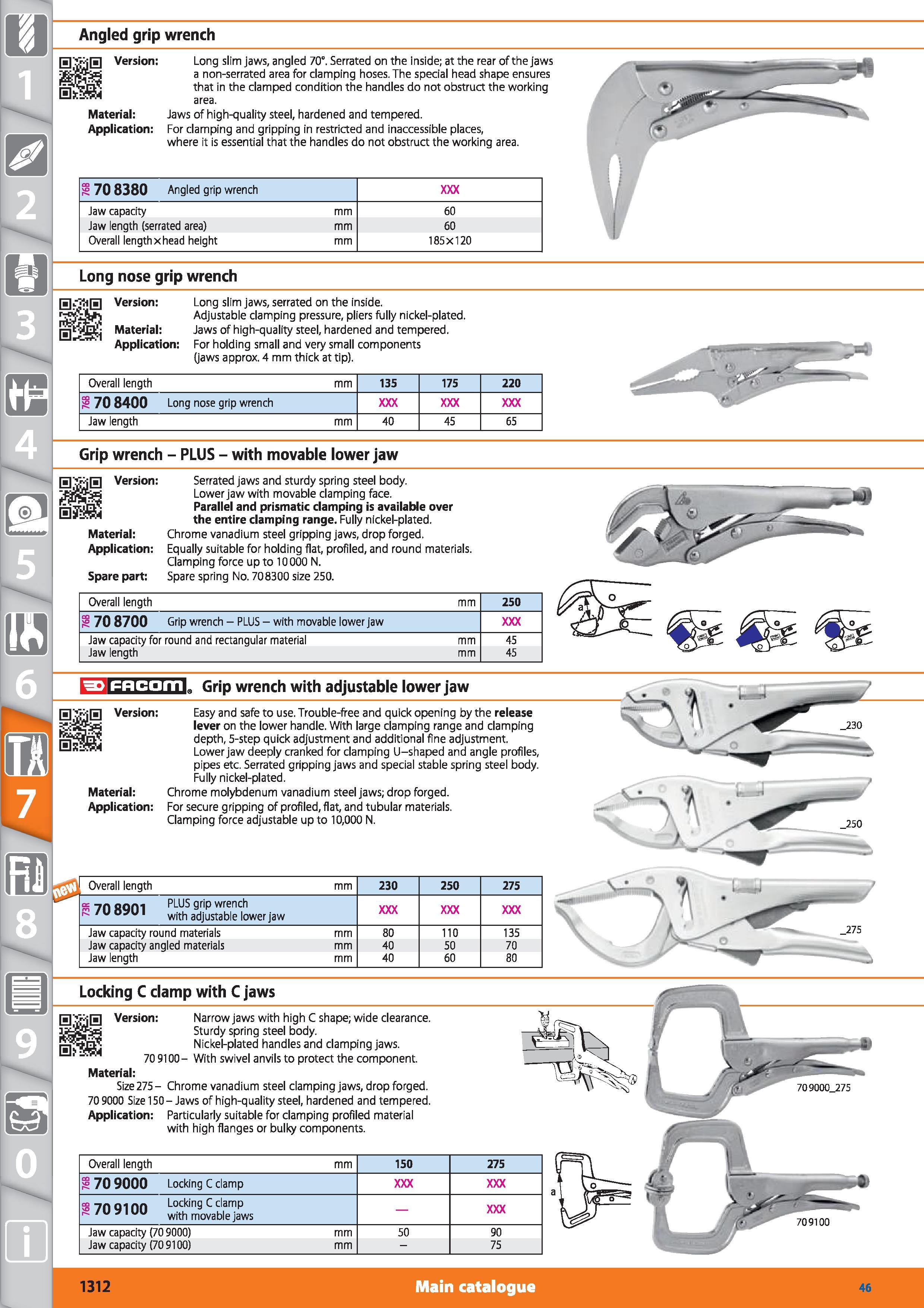

Angled grip wrench 0 Version Long slim jaws, angled 70°. Serrated on the inside; at the rear of the jaws a non-serrated area for clamping hoses. The special head shape ensures that in the clamped condition the handles do not obstruct the working area. Material Jaws of high-quality steel, hardened and tempered. Application For clamping and gripping in restricted and inaccessible places, where it is essential that the handles do not obstruct the working area. 1 70 8380 Angled grip wrench Jaw capacity mm 60 Jaw length (serrated area) mm 60 Overall length x head height mm 185x120 Long nose grip wrench Material Application Long slim jaws, serrated on the inside. Adjustable clamping pressure, pliers fully nickel-plated. Jaws of high-quality steel, hardened and tempered. For holding small and very small components (jaws approx. 4 mm thick at tip). Overall length mm 135 175 220 ft 70 8400 Long nose grip wrench Jaw length mm 40 45 65 Grip wrench - PLUS - with movable lower jaw Version Material Application Spare part Serrated jaws and sturdy spring steel body. Lower jaw with movable clamping face. Parallel and prismatic clamping is available over the entire clamping range. Fully nickel-plated. Chrome vanadium steel gripping jaws, drop forged. Equally suitable for holding flat, profiled, and round materials. Clamping force up to 10000 N. Spare spring No. 708300 size 250. Overall length mm 250 ft 70 8700 Grip wrench - PLUS - with movable lower jaw Jaw capacity for round and rectangular material mm 45 Jaw length mm 45 Grip wrench with adjustable lower jaw Version Material Application Easy and safe to use. Trouble-free and quick opening by the release lever on the lower handle. With large clamping range and clamping depth, 5-step quick adjustment and additional fine adjustment. Lower jaw deeply cranked for clamping U-shaped and angle profiles, pipes etc. Serrated gripping jaws and special stable spring steel body. Fully nickel-plated. Chrome molybdenum vanadium steel jaws; drop forged. For secure gripping of profiled, flat, and tubular materials. Clamping force adjustable up to 10,000 N. Overall length mm 230 250 275 S 7fl oqm PLUS grip wrench R /U 1 with ac jUStab e lower jaw Jaw capacity round materials mm 80 110 135 Jaw capacity angled materials mm 40 50 70 Jaw length mm 40 60 80 _250 4 pj _275 Locking C clamp with C jaws Version Narrow jaws with high C shape; wide clearance. Sturdy spring steel body. Nickel-plated handles and clamping jaws. 70 9100- With swivel anvils to protect the component. Material Size 275 - Chrome vanadium steel clamping jaws, drop forged. 709000 Size 150-Jaws of high-quality steel, hardened and tempered. Application Particularly suitable for clamping profiled material with high flanges or bulky components. A\'V Overall length mm 150 275 70 9000 Locking C clamp 7n qi nn Lockin9c damP N with movable jaws Jaw capacity (70 9000) mm 50 90 Jaw capacity (709100) mm - 75 1312 Main catalogue Hoffmann Group 46 709000_275 709100
