1308 Каталог HOFFMANN GROUP 2015 Инструмент режущий слесарный измерительный Стр.1308

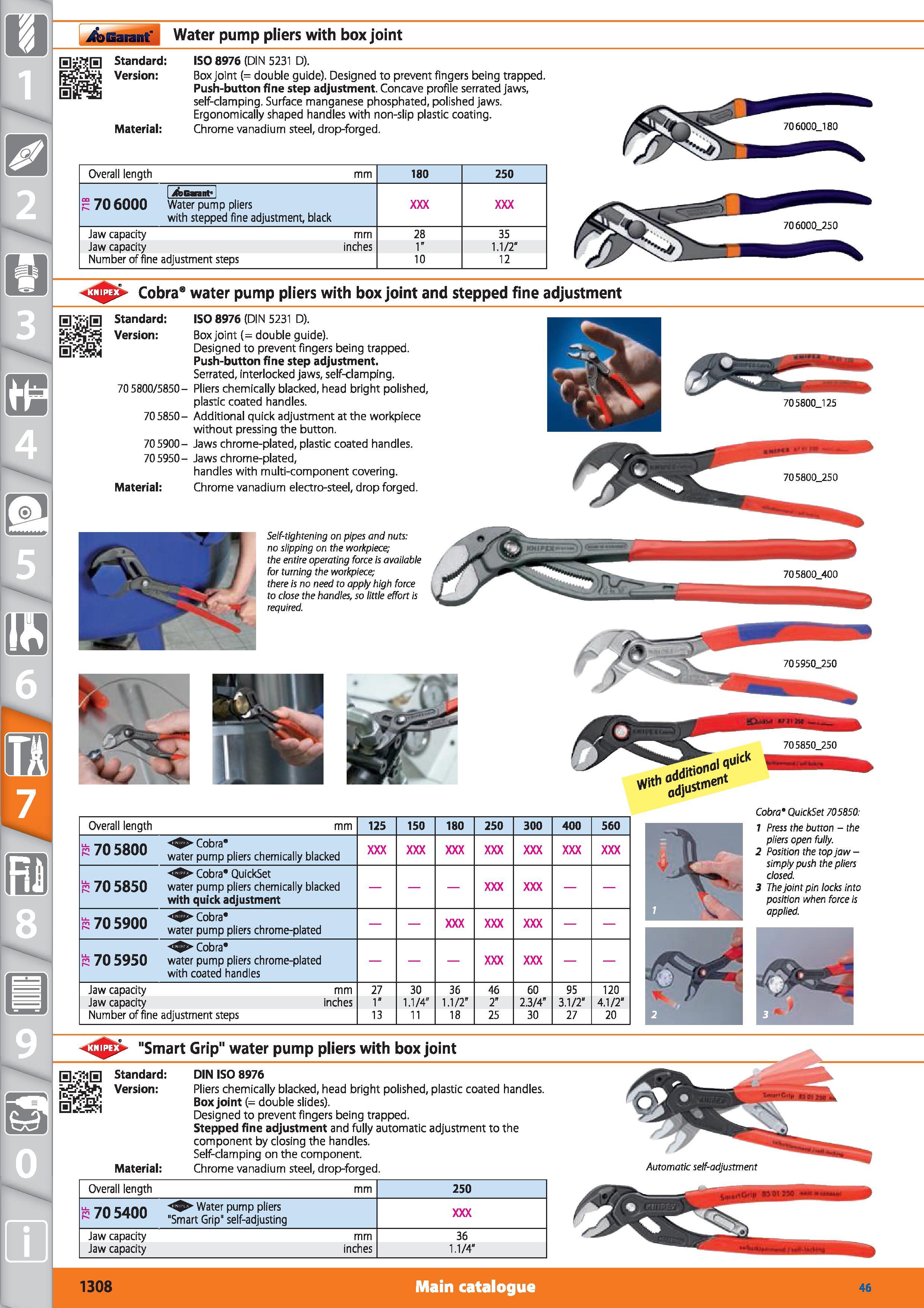

Каталог HOFFMANN GROUP 2015 Tools Инструменты Ver 46 Стр. 1308 1308 ENG Lab2u

Garant Water pump pliers with box joint Standard Version Material ISO 8976 (DIN 5231 D). Box joint (= double guide). Designed to prevent fingers being trapped. Push-button fine step adjustment. Concave profile serrated jaws, self-damping. Surface manganese phosphated, polished jaws. Ergonomically shaped handles with non-slip plastic coating. Chrome vanadium steel, drop-forged. Overall length mm 180 250 E 70 6000 I JfbGannt' Water pump pliers with stepped fine adjustment, black Jaw capacity mm 28 35 Jaw capacity inches r 1.1/2” Number of fine adjustment steps 10 12 Cobra8 water pump pliers with box joint and stepped fine adjustment da Standard ISO 8976 (DIN 5231 D). Version Box joint (= double guide). Designed to prevent fingers being trapped. Push-button fine step adjustment. Serrated, interlocked jaws, self-damping. Pliers chemically blacked, head bright polished, plastic coated handles. Additional quick adjustment at the workpiece without pressing the button. Jaws chrome-plated, plastic coated handles. 705950- Jaws chrome-plated, handles with multi-component covering. Chrome vanadium electro-steel, drop forged. Self-tightening on pipes and nuts no slipping on the workpiece the entire operating force is available for turning the workpiece there is no need to apply high force to close the handles, so little effort is required. 70 5800/5850 705850- 705900- Material 705800J25 Overall length mm 125 150 180 250 300 400 560 ft 70 5800 Cobra water pump pliers chemically blacked ft 70 5850 Cobra QuickSet water pump pliers chemically blacked with quick adjustment ft 70 5900 Cobra water pump pliers chrome-plated ft 70 5950 Cobra water pump pliers chrome-plated with coated handles Jaw capacity mm 27 30 36 46 60 95 120 Jaw capacity inches 1" 1.1/4” 1.1/2” 2" 2.3/4" 3.1/2" 4.1/2" Number of fine adjustment steps 13 11 18 25 30 27 20 Cobra QuickSet 705850 1 Press the button - the pliers open fully. 2 Position the top jaw -simply push the pliers closed. 3 The joint pin locks into position when force is applied. "Smart Grip" water pump pliers with box joint Standard Version e'H Material DIN ISO 8976 Pliers chemically blacked, head bright polished, plastic coated handles. Box joint (= double slides). Designed to prevent fingers being trapped. Stepped fine adjustment and fully automatic adjustment to the component by closing the handles. Self-damping on the component. Chrome vanadium steel, drop-forged. Overall length mm 250 ft 70 5400 Water pump pliers "Smart Grip" self-adjusting Jaw capacity mm 36 Jaw capacity inches 1.1/4 Automatic self-adjustment 1308 Main catalogue Hoffmann Group 46
