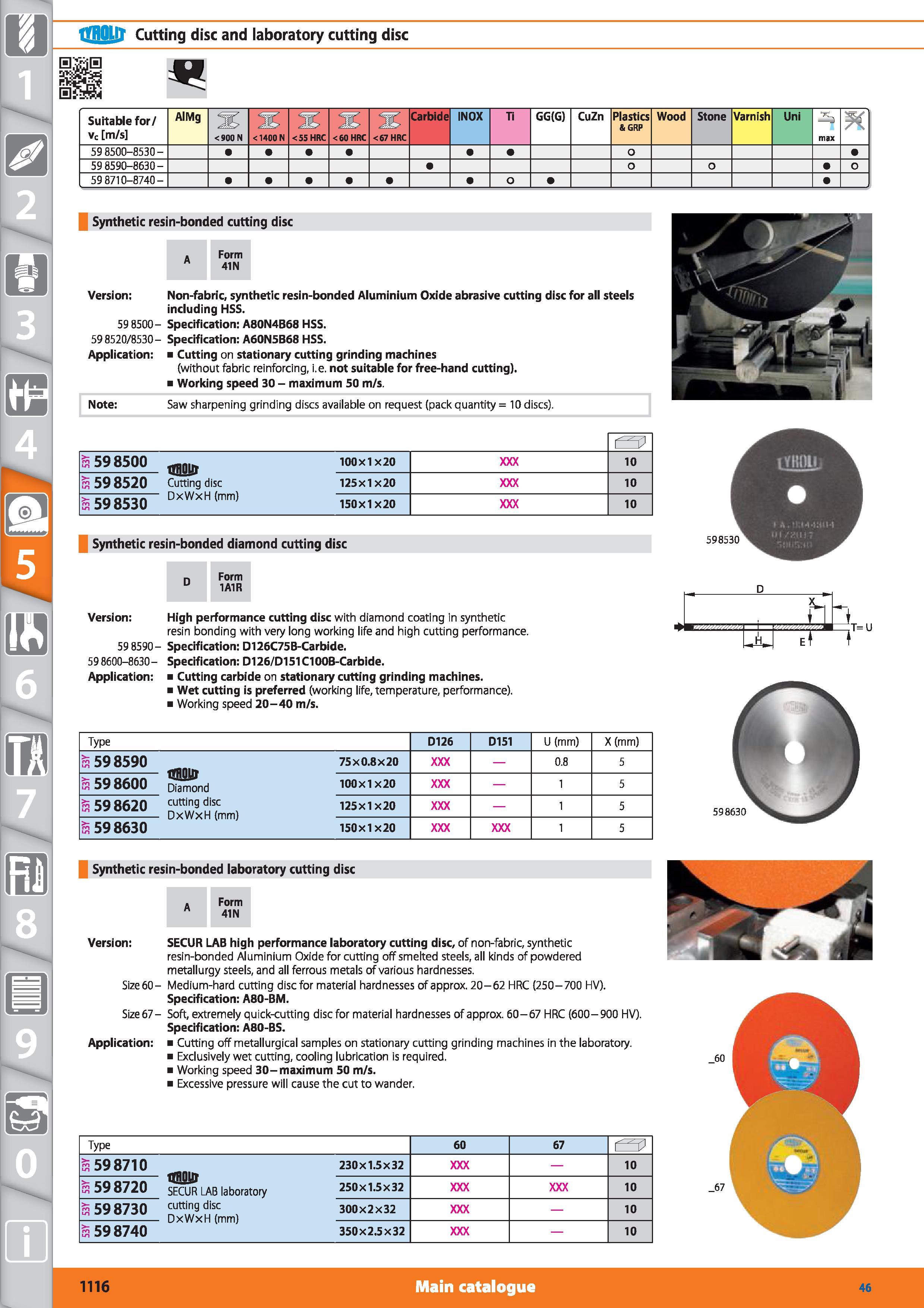

1 Cutting disc and laboratory cutting disc Suitable for/ vc m/s AlMg <900 N <1400N <55 HRC <60 HRC <67 HRC Carbide INOX Ti GG(G) CuZn Plastics & GRP Wood Stone Varnish Uni max 59 8500-8530- O 59 8590-8630- O 59 8710-8740- o Synthetic resin-bonded cutting disc Form 41N Version Non-fabric, synthetic resin-bonded Aluminium Oxide abrasive cutting disc for all steels including HSS. 59 8500- Specification A80N4B68 HSS. 598520/8530- Specification A60N5B68 HSS. Application Cutting on stationary cutting grinding machines (without fabric reinforcing, i.e. not suitable for free-hand cutting). Working speed 30 - maximum 50 m/s. Note Saw sharpening grinding discs available on request (pack quantity 10 discs). Synthetic resin-bonded diamond cutting disc Form 1A1R Version High performance cutting disc with diamond coating in synthetic resin bonding with very long working life and high cutting performance. 59 8590- Specification D126C75B-Carbide. 598600-8630- Specification D126/D151C100B-Carbide. Application Cutting carbide on stationary cutting grinding machines. Wet cutting is preferred (working life, temperature, performance). Working speed 20-40 m/s. 5 598500 Cutting disc DxWxH (mm) 100x1x20 10 5 598520 125x1x20 10 5 598530 150X1X20 10 598530 Type D126 D151 U (mm) X (mm) 5 598590 Diamond 75x0.8x20 0.8 5 5 59 8600 100x1x20 1 5 5 598620 cutting disc DxWxH (mm) 125x1x20 1 5 5 598630 150x1x20 1 5 Synthetic resin-bonded laboratory cutting disc Form 41N Version Application SECUR LAB high performance laboratory cutting disc, of non-fabric, synthetic resin-bonded Aluminium Oxide for cutting off smelted steels, all kinds of powdered metallurgy steels, and all ferrous metals of various hardnesses. Size 60- Medium-hard cutting disc for material hardnesses of approx. 20-62 HRC (250 - 700 HV). Specification A80-BM. Size 67- Soft, extremely quick-cutting disc for material hardnesses of approx. 60-67 HRC (600- 900 HV). Specification A80-BS. Cutting off metallurgical samples on stationary cutting grinding machines in the laboratory. Exclusively wet cutting, cooling lubrication is required. Working speed 30-maximum 50 m/s. Excessive pressure will cause the cut to wander. 60 Type 60 67 5 598710 ifflOUi SECUR LAB laboratory 230x1.5x32 10 5 598720 250x1.5x32 10 5 598730 cutting disc DxWxH (mm) 300x2x32 10 5 598740 350x2.5x32 10 _67 598630 1116 Main catalogue Hoffmann Group 46
