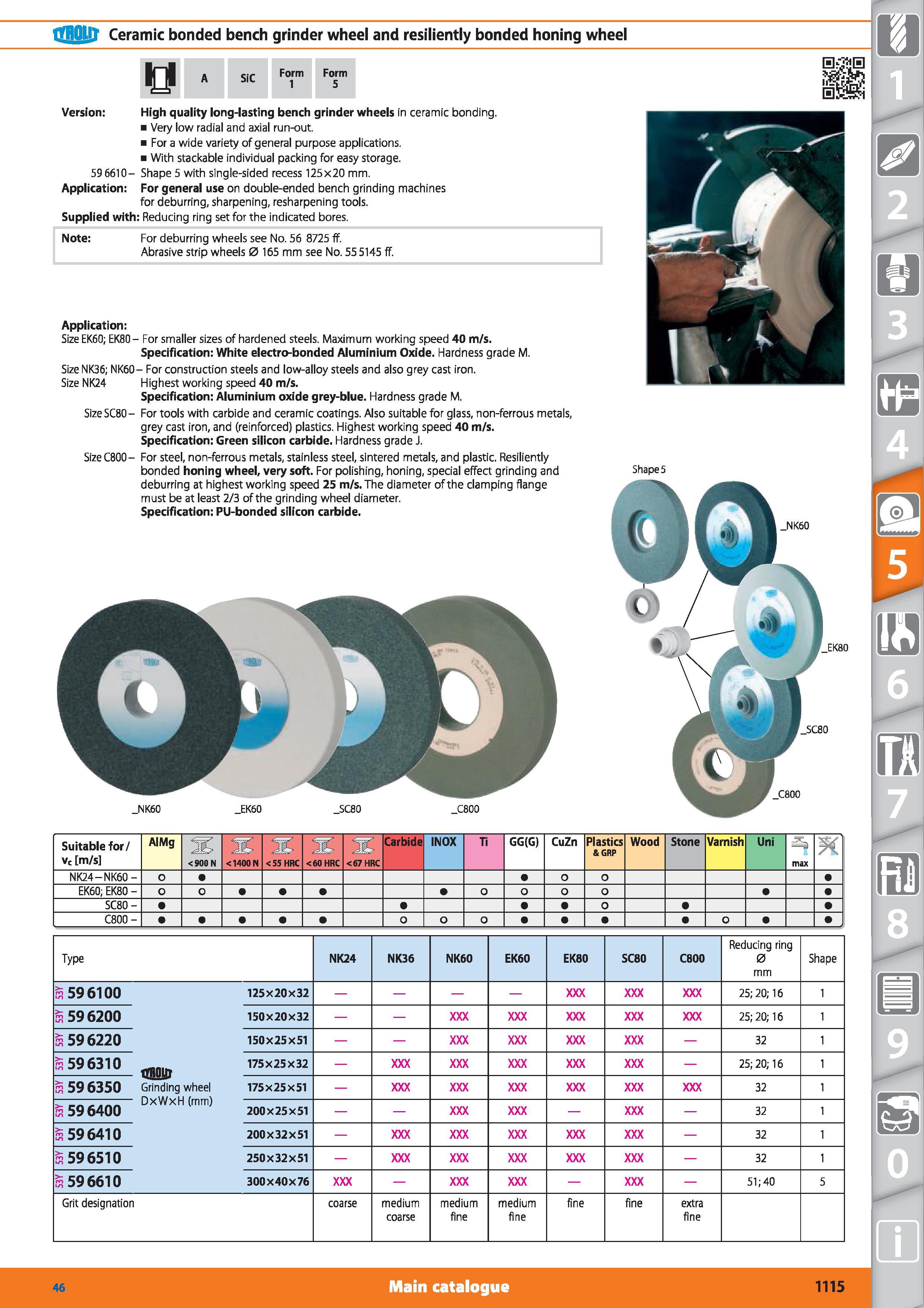

trflOUl Ceramic bonded bench grinder wheel and resiliently bonded honing wheel y A SiC Form 1 Form 5 Version High quality long-lasting bench grinder wheels in ceramic bonding. Very low radial and axial run-out. For a wide variety of general purpose applications. With stackable individual packing for easy storage. 59 6610- Shape 5 with single-sided recess 125x20 mm. Application For general use on double-ended bench grinding machines for deburring, sharpening, resharpening tools. Supplied with Reducing ring set for the indicated bores. Note For deburring wheels see No. 56 8725 ff. Abrasive strip wheels 0 165 mm see No. 555145 ff. Application Size EK60; EK80 - For smaller sizes of hardened steels. Maximum working speed 40 m/s. Specification White electro-bonded Aluminium Oxide. Hardness grade M. Size NK36; NK60- For construction steels and low-alloy steels and also grey cast iron. Size NK24 Highest working speed 40 m/s. Specification Aluminium oxide grey-blue. Hardness grade M. SizeSC80- For tools with carbide and ceramic coatings. Also suitable for glass, non-ferrous metals, grey cast iron, and (reinforced) plastics. Highest working speed 40 m/s. Specification Green silicon carbide. Hardness grade J. SizeC800- For steel, non-ferrous metals, stainless steel, sintered metals, and plastic. Resiliently bonded honing wheel, very soft. For polishing, honing, special effect grinding and deburring at highest working speed 25 m/s. The diameter of the clamping flange must be at least 2/3 of the grinding wheel diameter. Specification PU-bonded silicon carbide. ShapeS Suitable for/ vc m/s AIMg OOON <1400 N <55 HRC <60 HRC <67 HRC Carbide INOX Ti GG(G) CuZn Plastics &GRP Wood Stone Varnish Uni max X NK24-NK60 - O EK60; EK80 - O SC80- O C800- o Type NK24 NK36 NK60 EK60 EK80 SC80 C800 Reducing ring 0 mm Shape k 59 6100 125x20x32 25; 20; 16 1 3 59 6200 150x20x32 25; 20; 16 1 s 596220 150X25X51 32 1 k 596310 mpoitr Grinding wheel DxWxH (mm) 175X25X32 25; 20; 16 1 s 59 6350 175x25x51 32 1 & 59 6400 200x25x51 32 1 s 596410 200X32X51 32 1 a 596510 250X32X51 32 1 k 59 6610 300X40X76 51; 40 5 Grit designation coarse medium coarse medium fine medium fine fine fine extra fine _NK60 _EK60 _SC80 _C800 Main catalogue Hoffmann Group 46 1115
