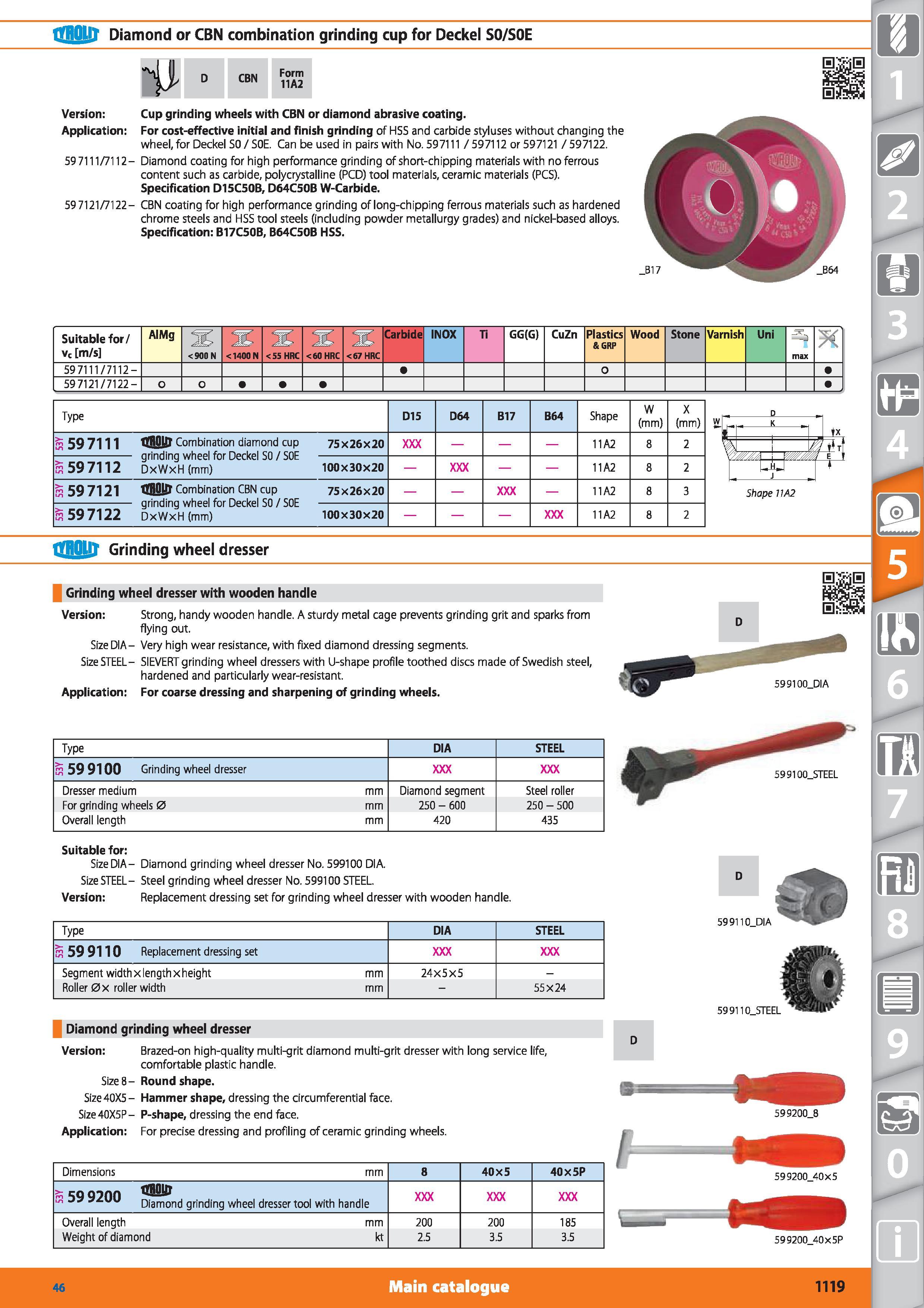

trflOUl Diamond or CBN combination grinding cup for Deckel SO/SOE ii D CBN Form 11A2 Version Cup grinding wheels with CBN or diamond abrasive coating. Application For cost-effective initial and finish grinding of HSS and carbide styluses without changing the wheel,for Deckel SO/SOE. Can be used in pairs with No. 597111 /597112 or 597121 /597122. 59 7111/7112- Diamond coating for high performance grinding of short-chipping materials with no ferrous content such as carbide, polycrystalline (PCD) tool materials, ceramic materials (PCS). Specification D15C50B, D64C50B W-Carbide. 59 7121/7122- CBN coating for high performance grinding of long-chipping ferrous materials such as hardened chrome steels and HSS tool steels (including powder metallurgy grades) and nickel-based alloys. Specification B17C50B, B64C50B HSS. Suitable for/ vc m/s AIMg <900 N <1400 N <55 HRC <60 HRC <67 HRC Carbide INOX Ti GG(G) CuZn Plastics &GRP Wood Stone Varnish Uni 3P max 59 7111/7112- O 597121/7122- Type D15 64 B17 B64 Shape W (mm) X (mm) s 597111 flHOHr Combination diamond cup grinding wheel for Deckel SO / S0E DxWxH (mm) 75 X 26X 20 11A2 8 2 5 597112 100X30X20 11A2 8 2 5 597121 fllOlft Combination CBN cup grinding wheel for Deckel SO / S0E DxWxH (mm) 75 x 26x 20 11A2 8 3 5 597122 100x30x20 11A2 8 2 tfBOIIl1 Grinding wheel dresser Grinding wheel dresser with wooden handle Version Strong, handy wooden handle. A sturdy metal cage prevents grinding grit and sparks from flying out. Size DIA- Very high wear resistance, with fixed diamond dressing segments. Size STEEL- SIEVERT grinding wheel dressers with U-shape profile toothed discs made of Swedish steel, hardened and particularly wear-resistant. Application For coarse dressing and sharpening of grinding wheels. Type DIA STEEL 5 59 9100 Grinding wheel dresser Dresser medium mm Diamond segment Steel roller For grinding wheels 0 mm 250 - 600 250 - 500 Overall length mm 420 435 599100_STEEL Suitable for Size DIA- Diamond grinding wheel dresser No. 599100 DIA. Size STEEL- Steel grinding wheel dresser No. 599100 STEEL. Version Replacement dressing set for grinding wheel dresser with wooden handle. Type DIA STEEL 5 59 9110 Replacement dressing set Segment width x length x height mm 24X5X5 Roller 0x roller width mm - 55X24 Diamond grinding wheel dresser Version Brazed-on high-quality multi-grit diamond multi-grit dresser with long service life, comfortable plastic handle. Size 8- Round shape. Size 40X5- Hammer shape, dressing the circumferential face. Size40X5P- P-shape, dressing the end face. Application For precise dressing and profiling of ceramic grinding wheels. Dimensions mm 8 40X5 40X5P m 59 Q200 jy Diamond grinding wheel dresser tool with handle Overall length mm 200 200 185 Weight of diamond kt 2.5 3.5 3.5 599200_8 mm 599200_40x5 599200_40x5P Main catalogue Hoffmann Group 46 1119
